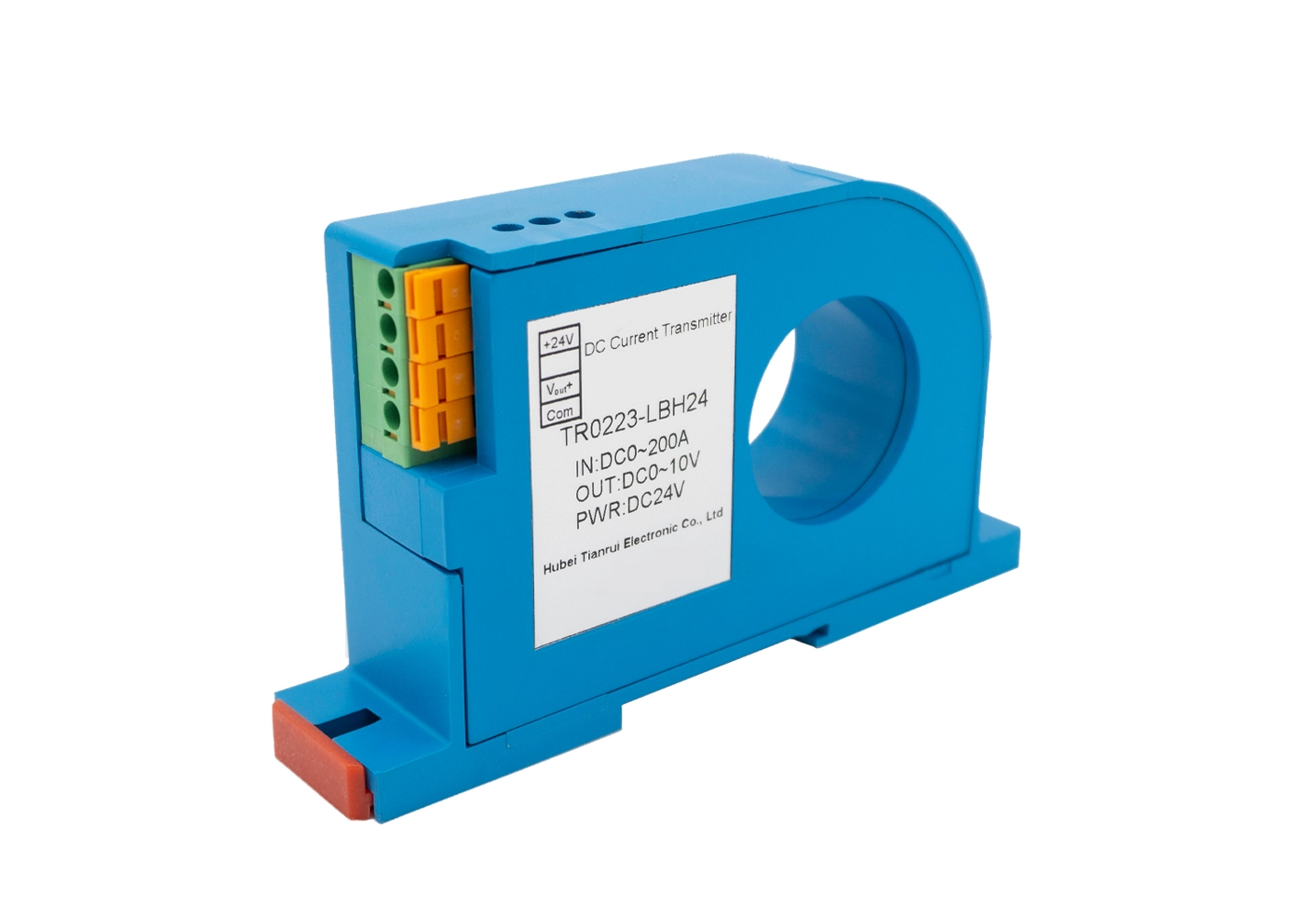

A DC current transducer is a precision electronic device designed to convert a direct current input signal into a standardized, isolated output signal for measurement, monitoring and control systems. It bridges high-power DC circuits and low-voltage acquisition units widely used in power electronics, renewable energy, industrial automation and battery management systems.
Unlike simple shunt resistors that rely on voltage drop and lack galvanic isolation, most DC current transducers adopt Hall-effect or fluxgate working principles. Hall-effect transducers are the mainstream option for general industrial scenarios. When DC current flows through the primary conductor, it generates a stable magnetic field proportional to the current magnitude. The built-in Hall chip captures this magnetic field, and internal signal conditioning circuits amplify, filter and calibrate the weak Hall voltage to produce a linear output such as 0–5 V, 0–10 V or 4–20 mA. Fluxgate types deliver far higher accuracy and stability, making them suitable for high-end applications that demand ultra-precise DC measurement, such as laboratory power supplies and high-precision battery test benches.
Galvanic isolation is one of its core advantages. The primary high-voltage DC side and secondary signal output side are electrically separated. This blocks dangerous high voltage, suppresses common-mode interference, and protects PLCs, data loggers and acquisition cards from surge damage. This feature is critical for high-voltage DC systems including photovoltaic combiner boxes, energy storage cabinets and DC charging piles. Without isolation, ground potential differences and noise in power circuits would corrupt readings and destroy downstream control hardware.
Installation types vary to fit different field requirements. Split-core DC transducers can be clamped onto existing cables without cutting off the circuit, which greatly simplifies retrofitting work in running equipment. Solid-core models have better anti-interference performance and lower cost for fixed, permanent installation. Users must select the measuring range reasonably: the rated input current should match the normal operating current of the circuit, and short-term overload capacity should accommodate surge current from motor startup or capacitor charging.
Signal linearity, temperature drift and response time are key performance indicators. High-quality transducers maintain excellent linear output across the full measurement range, ensuring the output signal changes proportionally with input DC current. Low temperature drift guarantees stable readings amid fluctuating ambient temperatures in factory workshops or outdoor power stations. Fast response versions can track rapid current changes for closed-loop control of inverters and converters.
In practical systems, the standardized output signal feeds directly into programmable logic controllers, display meters or remote monitoring terminals. Operators can read real-time DC current, set overcurrent alarm thresholds and build automatic protection logic. From solar power generation, electric vehicle charging, industrial DC drives to UPS power supplies, DC current transducers provide reliable current data for status monitoring, energy metering and fault protection. As power electronic systems develop toward higher voltage and larger capacity, these transducers remain an indispensable foundational component for safe and intelligent DC power management.
