A donut current transformer is a type of current transformer designed with a circular opening in the center, allowing a conductor or cable to pass directly through the core. Because of its ring shaped structure, it is commonly called a donut current transformer. These transformers are widely used in electrical measurement, power monitoring, energy management, and protection systems due to their compact design, high accuracy, and easy installation.
The operating principle of a donut current transformer is based on electromagnetic induction. When alternating current flows through the primary conductor passing through the center opening, it creates a magnetic field around the conductor. The transformer core captures this magnetic field and induces a proportional current in the secondary winding. This secondary current can then be safely measured by meters, relays, or monitoring devices without directly connecting to high current circuits.
One of the main advantages of a donut current transformer is its simple and flexible installation. Unlike traditional wound primary transformers, the primary conductor itself acts as the primary winding. Electricians only need to route the cable or busbar through the center hole of the transformer. This design reduces installation time and simplifies maintenance work in industrial and commercial power systems.
Donut current transformers are available in many sizes and current ratings. Small models are commonly used in electronic equipment, distribution cabinets, and energy meters, while larger models are suitable for switchgear, substations, and heavy industrial equipment. The inner diameter of the transformer can be selected according to the cable size or busbar dimensions. Manufacturers also provide different accuracy classes for metering and protection applications.
High accuracy is another important feature of donut current transformers. They can provide stable and precise current measurement across a wide operating range. Accurate current data is essential for power monitoring, load management, and equipment protection. In modern smart grid systems and automated factories, reliable current transformers help improve energy efficiency and operational safety.
Another advantage is electrical isolation. The transformer separates the high voltage primary circuit from the low voltage measuring instruments. This isolation improves operator safety and protects monitoring equipment from dangerous voltage levels. Because of this feature, donut current transformers are commonly used in power distribution panels and motor control centers.
Donut current transformers are widely applied in many industries. In power utilities, they are used for current measurement and relay protection in substations and transmission systems. In industrial automation, they monitor motors, pumps, compressors, and manufacturing equipment. In commercial buildings, they are used in energy management systems to track electricity consumption and optimize energy usage. Renewable energy systems such as solar inverters and wind power equipment also rely on donut current transformers for monitoring and control.

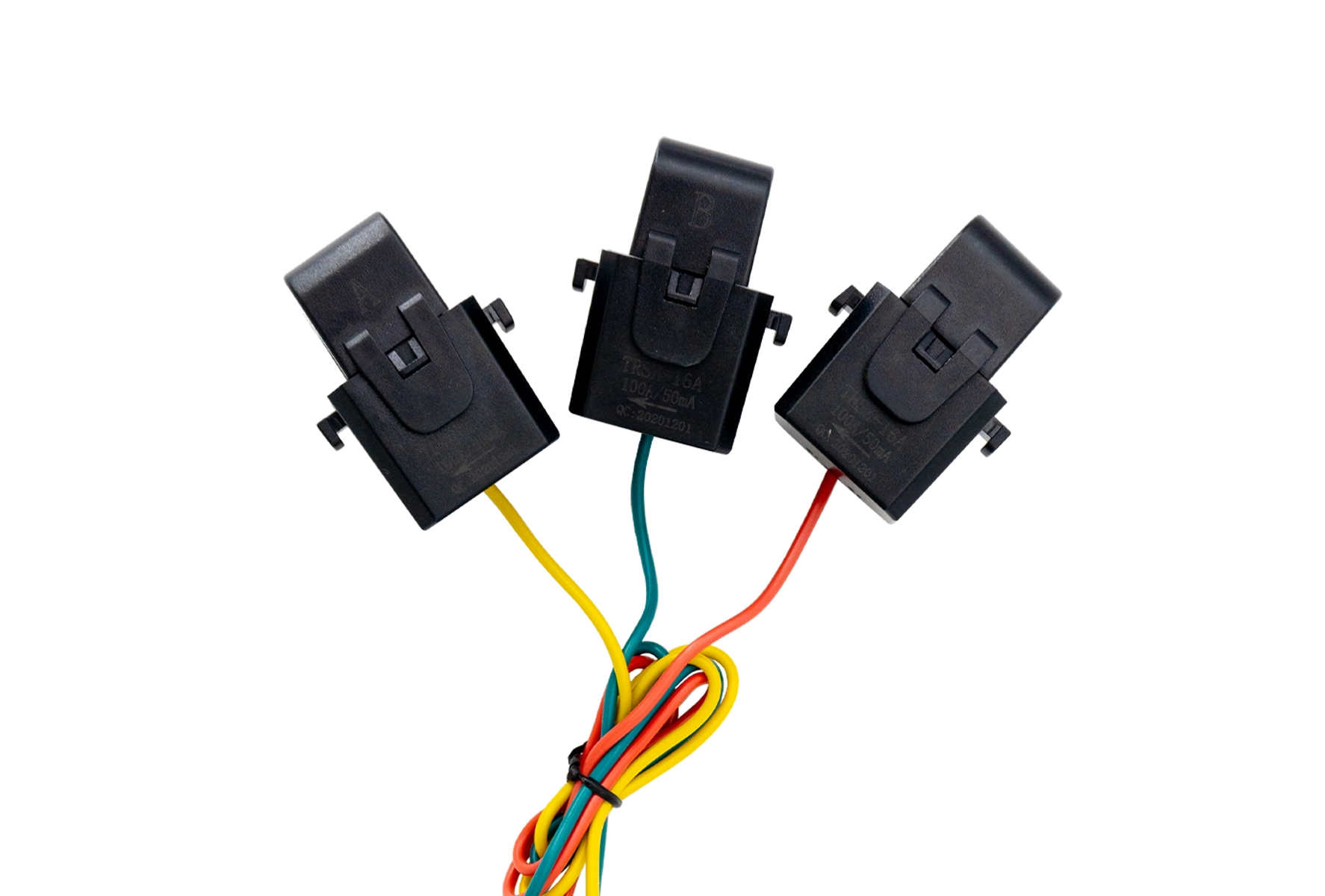

Modern donut current transformers may include split core designs for easier installation without disconnecting existing cables. Some advanced models support digital monitoring systems and smart sensors for real time data collection. With the continuous development of intelligent power systems, donut current transformers remain an essential component in electrical engineering and energy management applications.
Overall, the donut current transformer is a reliable, efficient, and cost effective solution for current measurement and electrical protection. Its compact structure, easy installation, high accuracy, and wide range of applications make it an important device in modern electrical systems.
