Current transformer (CT) metering serves as the core sensing solution for accurate energy measurement, revenue billing and power consumption tracking across power grids, industrial facilities and commercial buildings. As a category of instrument transformers, metering CTs step down high primary currents from power lines into standardized low secondary outputs (1 A or 5 A) compatible with electronic energy meters, while creating complete electrical isolation between high-voltage primary circuits and low-voltage measuring equipment for operational safety.
Built on electromagnetic induction, metering CTs adopt a compact core structure: the primary side usually consists of a single busbar or cable passing through the magnetic core, and the secondary side features multi-turn fine windings. In ideal operation, primary and secondary currents maintain a fixed inverse ratio with negligible phase shift. Unlike protection CTs prioritizing linearity under severe fault surges, metering CTs are engineered for ultra-precise current reproduction within normal load ranges (1% to 120% of rated current), directly guaranteeing fair electricity settlement between power utilities and end users.
Accuracy classification is the most critical specification for metering current transformer, governed by IEC 61869 and IEEE C57.13 standards. Common grades include 0.2S, 0.5S, 0.2 and 0.5, where the suffix “S” denotes enhanced low-current performance for sites with fluctuating light loads. A Class 0.2S CT restricts ratio error within ±0.2% across full working ranges, making it mandatory for grid custody transfer metering. These transformers feature thin, high-permeability silicon steel cores to minimize excitation loss and magnetic hysteresis, though they will saturate above 120% rated current to avoid damaging paired energy meters during temporary overloads.

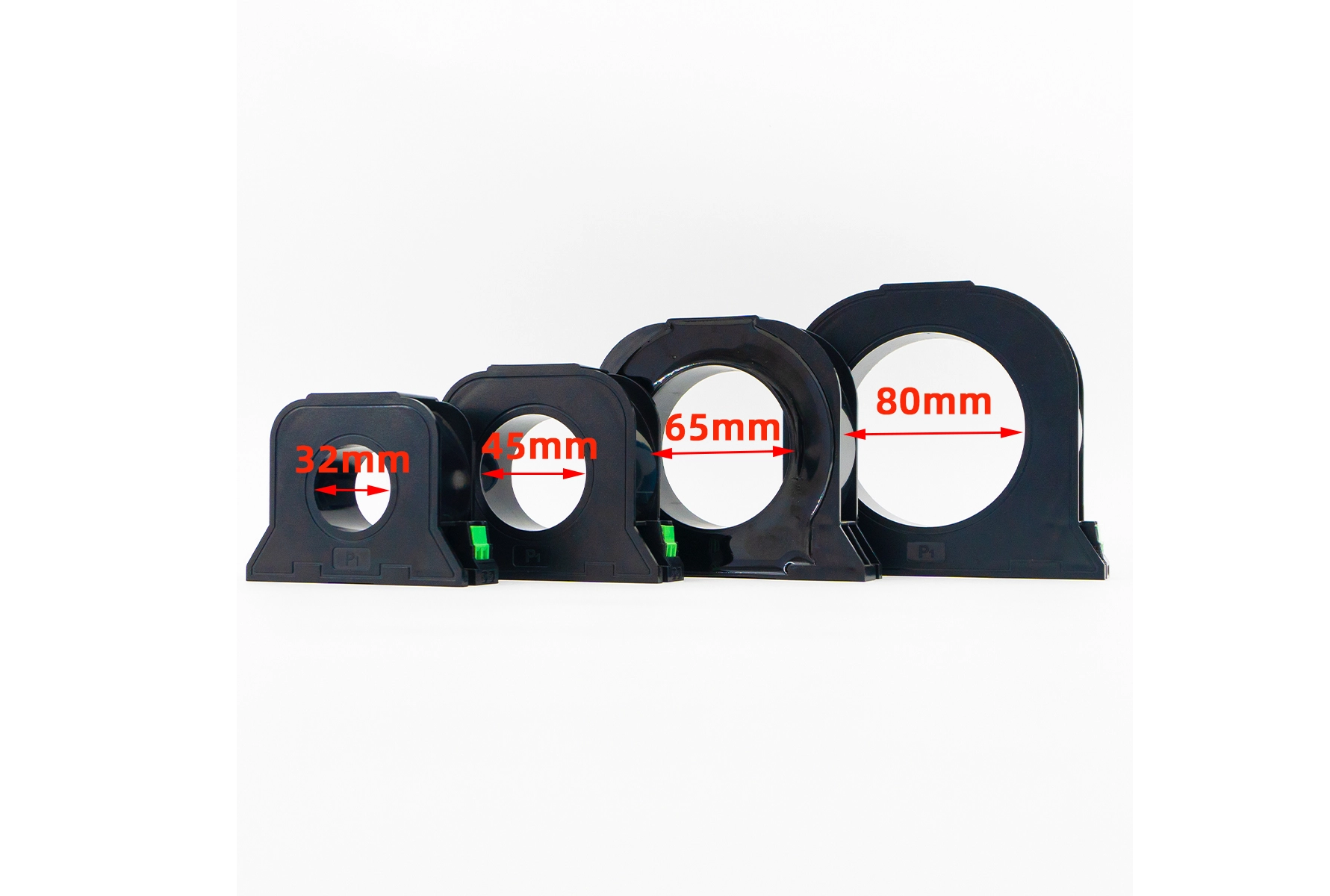

Multiple mechanical types adapt to diverse installation scenarios. Wound bar CTs suit permanent indoor metering cabinets, while split-core flexible Rogowski coils enable live retrofitting without power cut-offs, widely used in photovoltaic stations and low-voltage distribution boxes. Key installation rules include matching CT rated burden to meter impedance and strictly avoiding open secondary circuits, which would generate lethal high induced voltage and permanent core degradation.
In practical applications, three-phase metering CT assemblies monitor industrial motor loads, transformer feeders and distributed new energy generation. Precise CT sampling data supports energy cost allocation, power quality analysis and demand-side management. Minor measurement deviations accumulate drastically over long-term billing cycles, so regular calibration of metering CTs is required to maintain fiscal accuracy. Balancing precision, safety and installation flexibility, current transformer metering remains an irreplaceable foundation of modern smart power metering systems.
