A small power transformer is an electrical device designed to transfer electrical energy between two circuits through electromagnetic induction while changing the voltage level to meet the requirements of different electronic or electrical systems. Unlike large power transformers used in power transmission networks, small power transformers are compact, lightweight, and mainly used for low-power applications such as electronic equipment, control systems, industrial automation, communication devices, and household appliances.
The main function of a small power transformer is to step up or step down AC voltage. In most applications, it reduces a higher input voltage to a lower and safer output voltage that can be used by sensitive electronic components. For example, a transformer may convert 220V AC or 110V AC mains power into 12V AC, 24V AC, or other low voltages required by control circuits and devices.
A small power transformer generally consists of three key parts: a magnetic core, a primary winding, and a secondary winding. The magnetic core is usually made of laminated silicon steel sheets or ferrite materials to improve magnetic performance and reduce energy losses. The primary winding is connected to the input power source, while the secondary winding provides the transformed output voltage to the load.
When alternating current flows through the primary winding, it creates a changing magnetic field inside the core. This magnetic field induces a voltage in the secondary winding. The ratio between the number of turns in the primary and secondary windings determines whether the transformer increases or decreases the voltage. Because there is no direct electrical connection between the two windings, the transformer also provides electrical isolation, improving safety and protecting connected equipment.

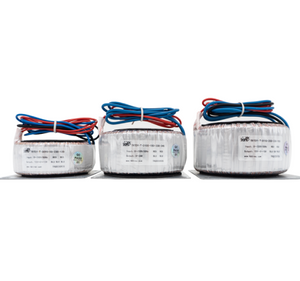

Small power transformers are available in different designs depending on their applications. Common types include EI core transformers, toroidal transformers, PCB-mounted transformers, encapsulated transformers, and control transformers. EI transformers are widely used because of their simple structure and cost-effectiveness. Toroidal transformers provide higher efficiency, lower noise, and a compact size, making them suitable for medical equipment, audio systems, and precision instruments. PCB transformers are designed for direct installation on circuit boards and are commonly found in electronic products.
In industrial applications, small power transformers are often used in control panels, automation equipment, PLC systems, sensors, relays, and measurement devices. They provide stable low-voltage power supplies for control circuits while isolating them from high-voltage sources. In renewable energy systems, communication equipment, and smart devices, small transformers help ensure reliable voltage conversion and power management.
The advantages of small power transformers include high reliability, simple operation, long service life, electrical isolation, and low maintenance requirements. They can operate continuously in various environments and provide stable power for electrical systems. Many modern small transformers are designed with improved insulation materials, low-loss cores, and better thermal management to increase efficiency and safety.
When selecting a small power transformer, several factors should be considered, including input voltage, output voltage, rated power, frequency, insulation class, size, mounting method, and operating environment. Choosing the correct transformer ensures efficient energy conversion and prevents overheating or performance problems.
In summary, a small power transformer is an essential component for converting and isolating electrical power in low-power applications. With their compact design and reliable performance, small transformers are widely used in electronics, industrial control, communication systems, and many other electrical devices where safe and stable voltage conversion is required.
