What Is The Difference between Current Transformer (CT)And Rogowski Coils?

Current Transformers (CTs) and Rogowski Coils are two essential types of current sensing devices widely used in electrical measurement, protection, and monitoring systems. Both serve the same purpose—measuring alternating current (AC)—but their working principles, construction, and applications are quite different. Understanding the distinctions between them helps engineers choose the right solution for accuracy, cost, and installation flexibility.

1. Working Principle
A Current Transformer (CT) works on the principle of electromagnetic induction. It consists of a primary winding, a magnetic core, and a secondary winding. The primary winding carries the current to be measured, and the magnetic field generated induces a proportional current in the secondary winding. The CT converts large primary currents into a smaller, standardized secondary current (usually 1A or 5A) that can be safely used by measurement instruments or protection relays.

A Rogowski Coil, on the other hand, operates on the principle of mutual inductance without using an iron core. It is essentially an air-cored coil wound around a flexible, non-magnetic material. When placed around a conductor carrying AC, the changing magnetic field induces a voltage in the coil proportional to the rate of change of the current (di/dt). An electronic integrator circuit then converts this voltage signal into a signal proportional to the actual current.

2. Construction and Design

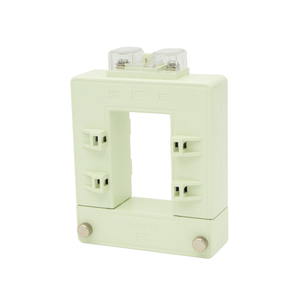

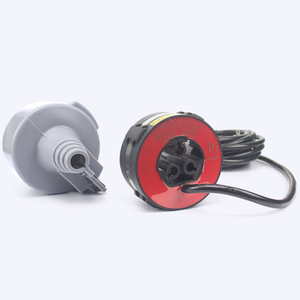

CTs are rigid devices with a closed magnetic core, typically made from laminated iron or ferrite materials. They can be of various designs—bar type, toroidal, or split-core—depending on installation needs. CTs are designed for high-accuracy measurements and often have fixed dimensions.

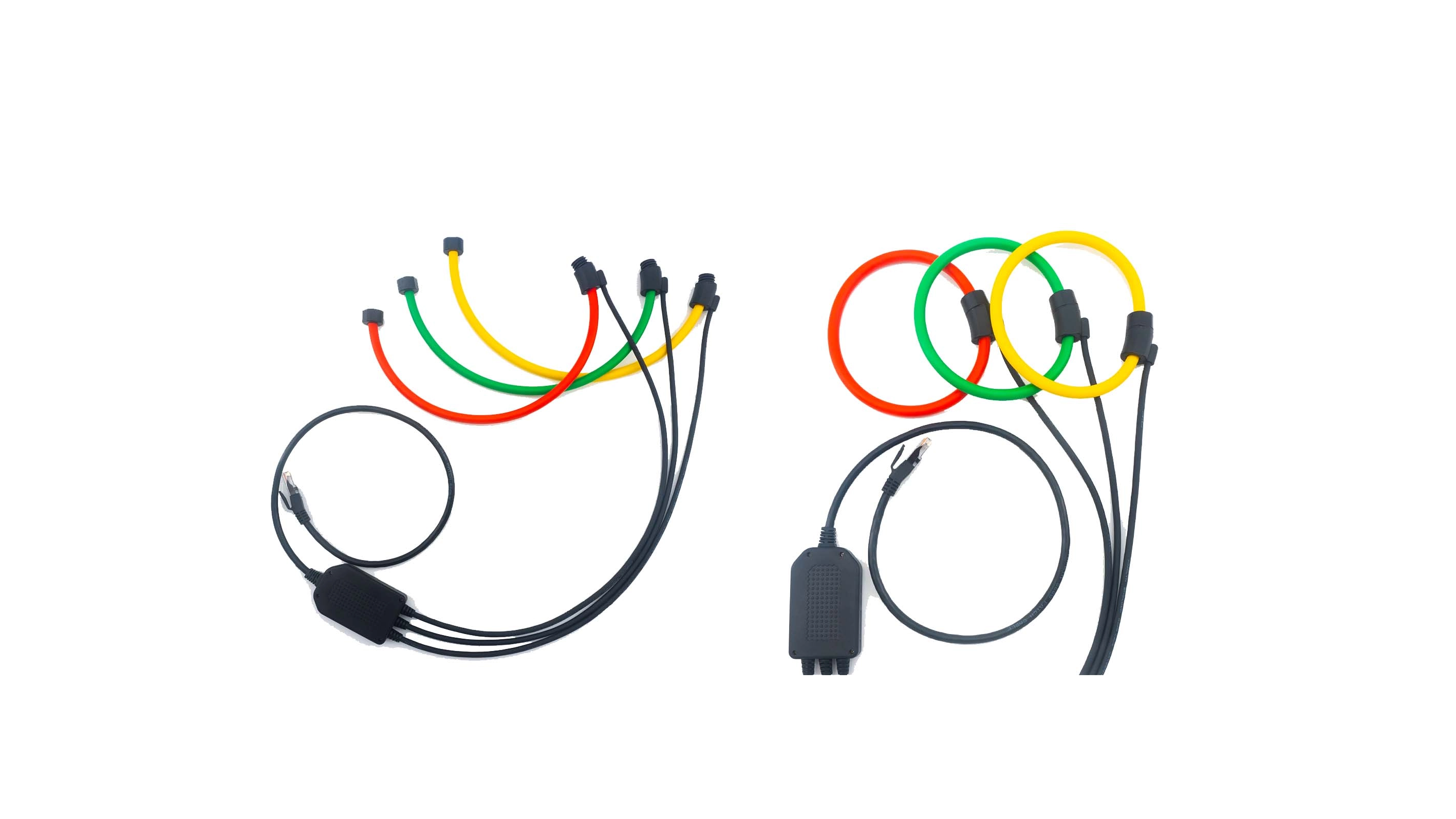

Rogowski Coils, by contrast, are lightweight, flexible, and coreless. Their openable, rope-like design allows them to be easily wrapped around large or irregularly shaped conductors, making them ideal for retrofit installations. Since they use no ferromagnetic material, they are free from saturation and hysteresis effects that can distort measurements in traditional CTs.

3. Measurement Range and Linearity
CTs have a limited measurement range due to magnetic core saturation. When the current exceeds the rated capacity, accuracy drops significantly. Therefore, CTs must be selected carefully according to the system’s current rating.

Rogowski Coils offer a very wide dynamic range and excellent linearity because they lack a magnetic core. They can accurately measure both very high and very low currents without distortion. This makes them suitable for applications involving rapidly changing or pulsed currents, such as power electronics, variable speed drives, or transient analysis.

4. Accuracy and Frequency Response
CTs generally provide high accuracy within their rated frequency and current range, making them ideal for metering and protection in power systems. However, their frequency response is limited, typically from 50Hz to a few kHz.

Rogowski Coils provide an extremely wide frequency response, from a few Hz up to several MHz, allowing them to capture transient, harmonic, and high-frequency signals. Their accuracy depends on the stability and precision of the integrator circuit.

5. Safety and Installation
Since CTs have a secondary circuit that can generate dangerous voltages if open-circuited under load, they must be handled with care. Improper use can lead to equipment damage or electric shock. Installation usually requires disconnecting the primary conductor unless a split-core type is used.

Rogowski Coils are inherently safer, as they are non-intrusive and have no direct electrical connection with the conductor. Their flexible design enables quick, safe installation without interrupting power.

6. Applications
CTs are mainly used in power distribution, energy metering, and protection relays in substations, switchgear, and transformers. They are preferred when precision at standard frequencies is required.

Rogowski Coils are commonly used in portable measurement systems, power quality analyzers, harmonic monitoring, and transient current detection. Their wide bandwidth and ease of installation make them ideal for industrial diagnostics and temporary measurements.

7. Summary
In summary, CTs are robust and precise for steady-state measurements in traditional power systems, while Rogowski Coils are flexible, lightweight, and superior for high-frequency, wide-range, or non-intrusive applications. The choice between the two depends on the specific measurement requirements, installation constraints, and desired frequency response.

Both technologies complement each other in modern electrical systems, where CTs ensure reliable metering and protection, and Rogowski Coils provide advanced diagnostic and monitoring capabilities.
