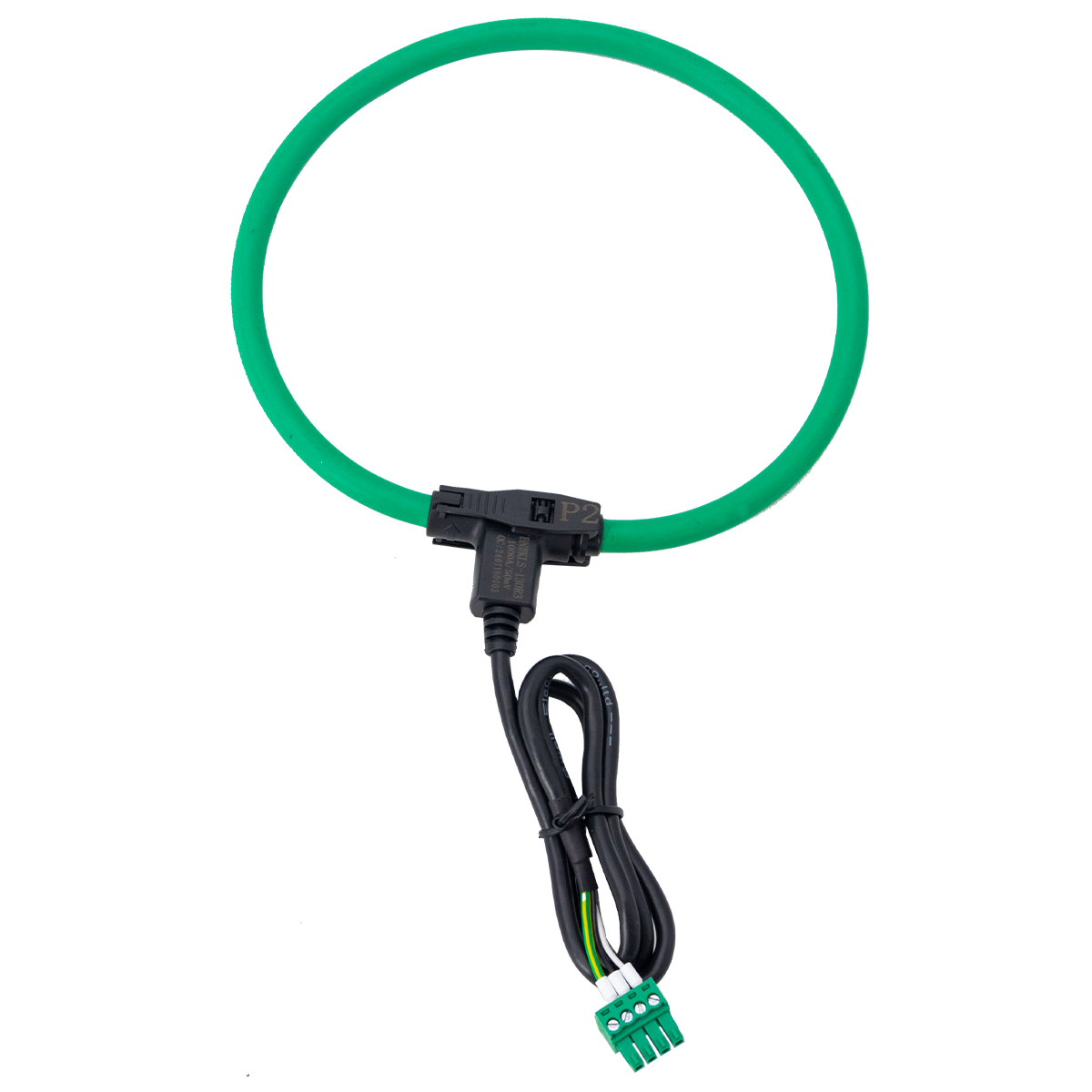

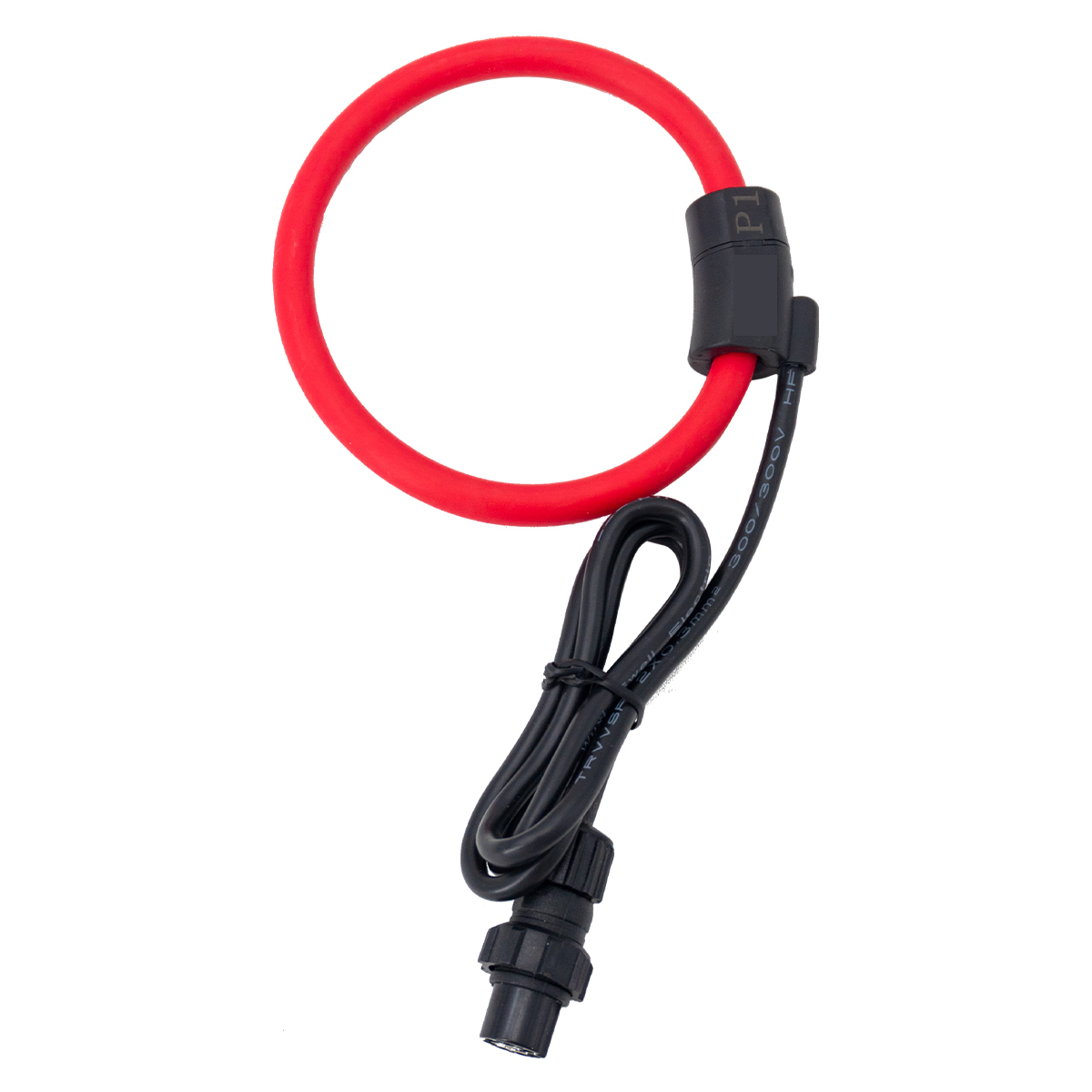

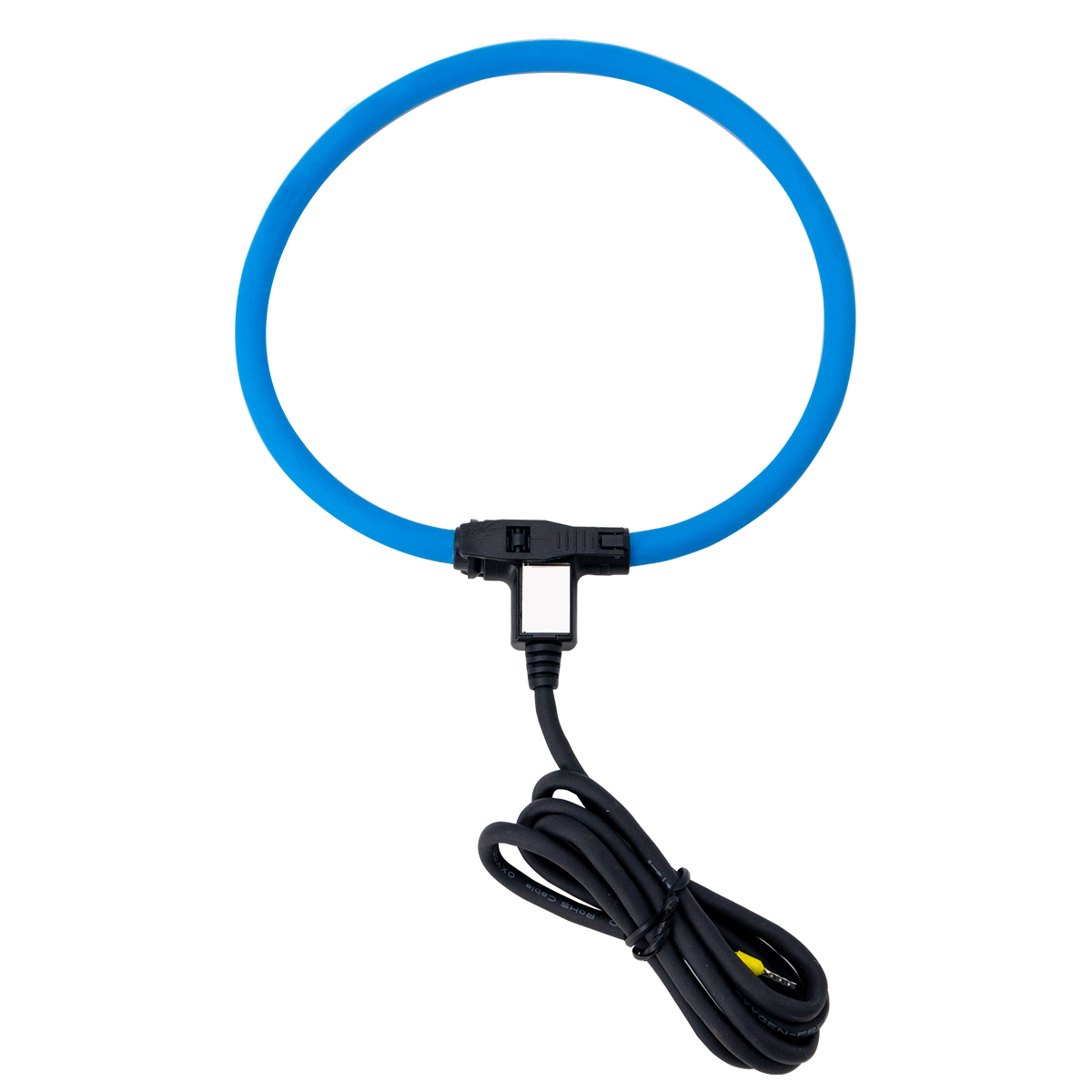

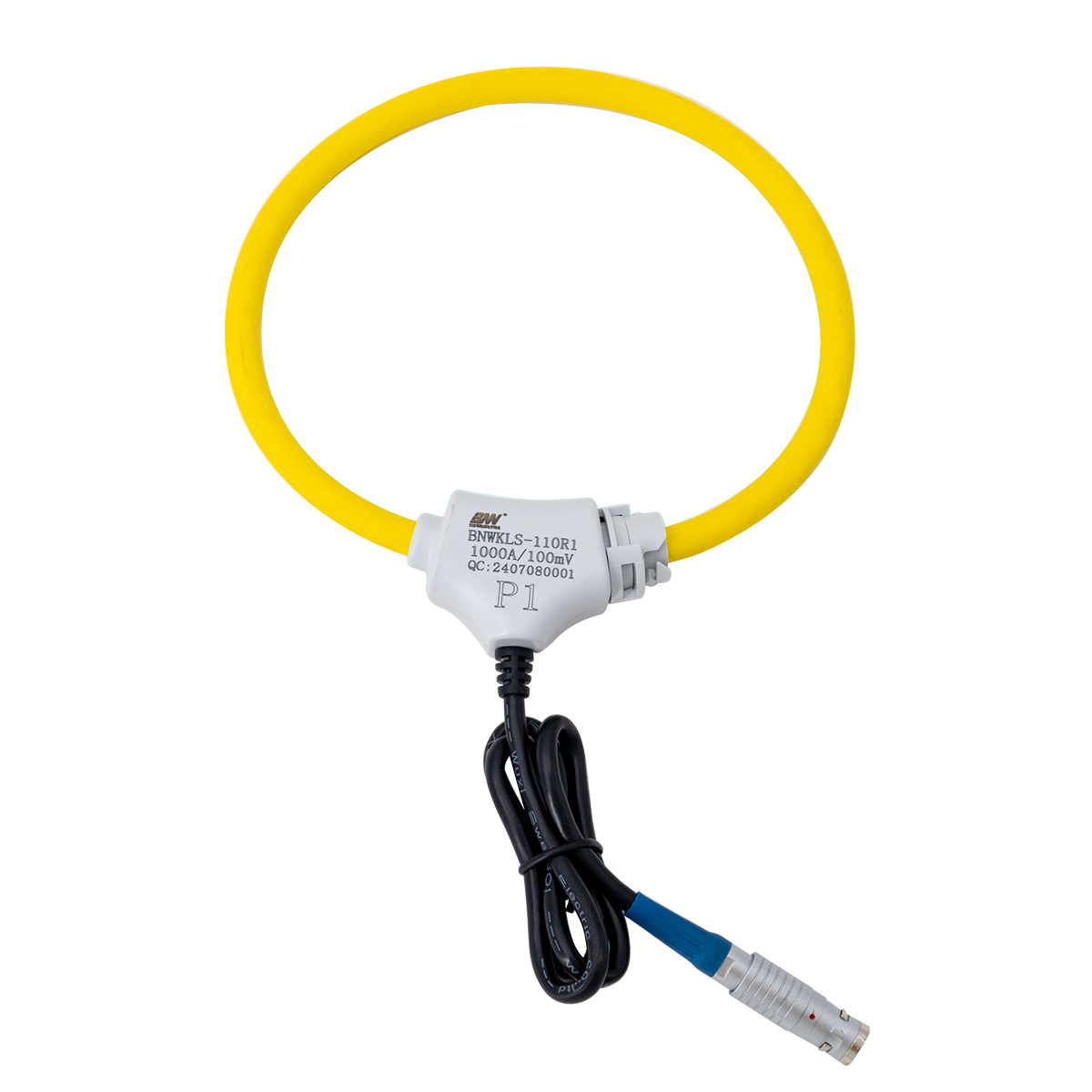

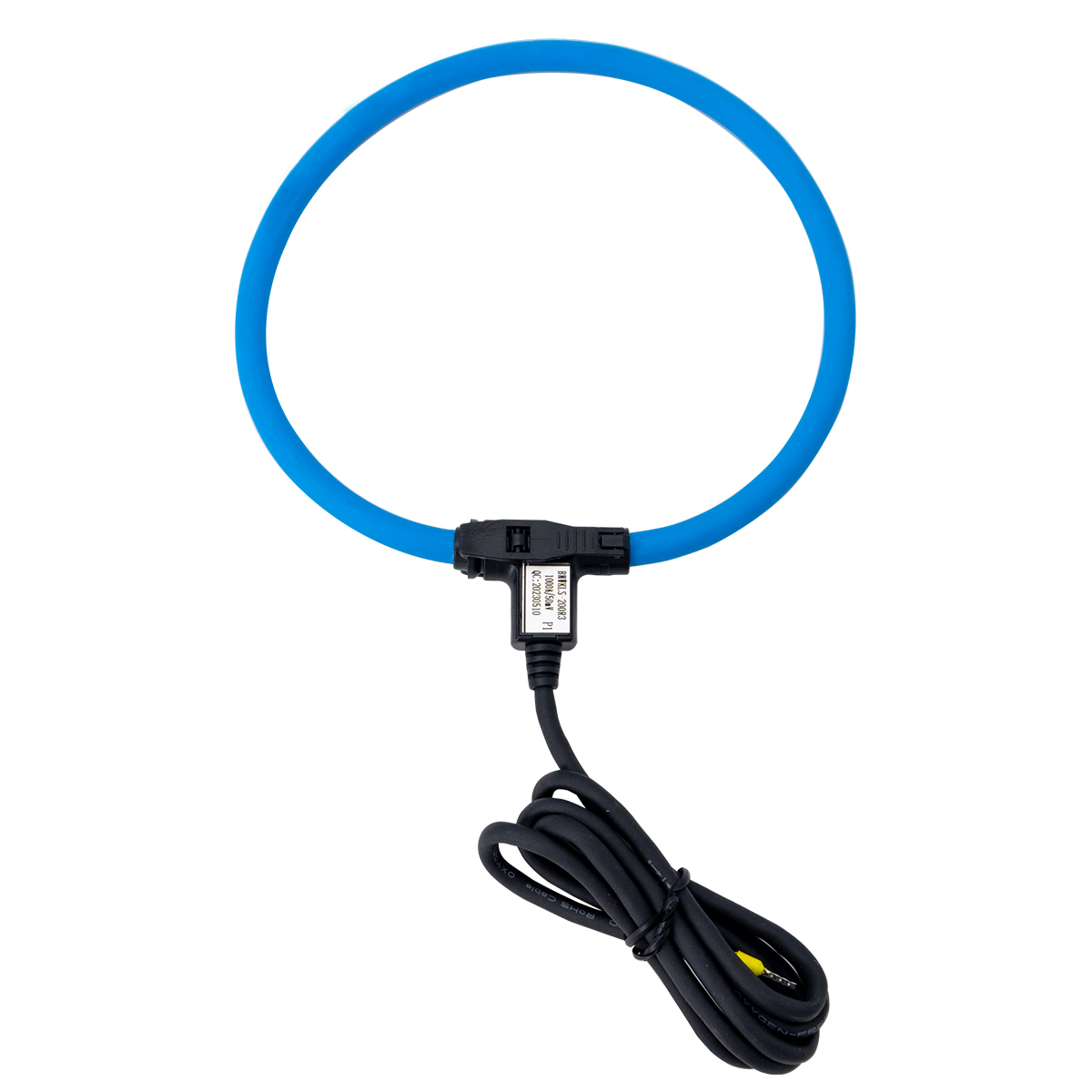

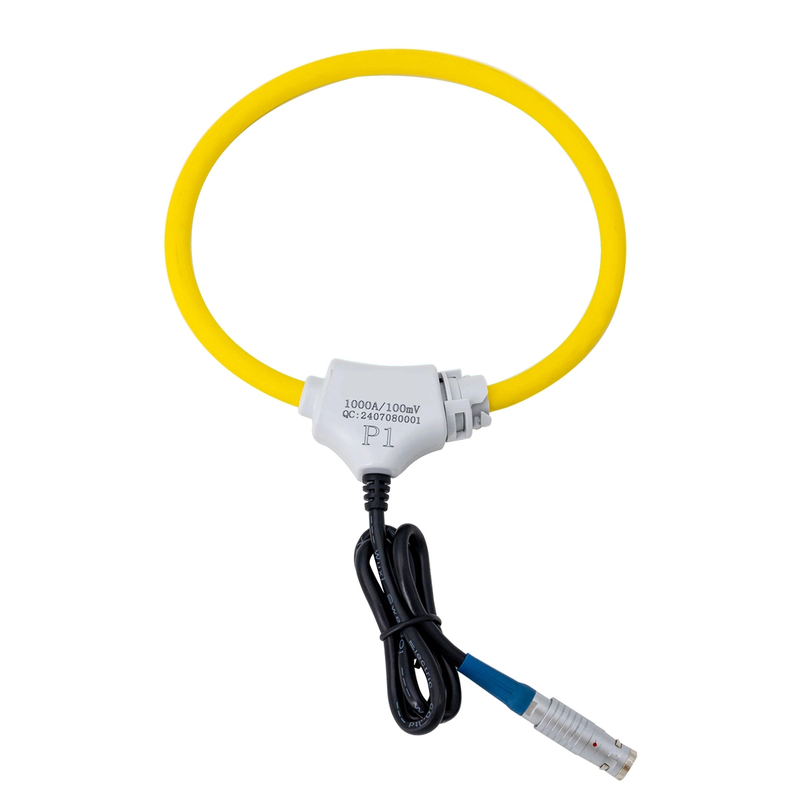

TRKLS-R
TR
Product Features
* Split-core structure, easy to install on site and easy to operate. Quick and easy installation or removal without disconnecting the primary cable under test, effective for safe and easy current testing.
* Low output voltage, high linearity, wide frequency range, no saturation (without integrator).
* The secondary output adopts shielded wire, and the length can be customized according to customer requirements.
* Flexible structure design, can detect the current of irregular primary conductor.
Product Application
Measurement of high current AC signals (such as short-circuit current); measurement of pulse signals with high peak values (such as lightning current); analysis of harmonic current signals; current measurement of electric welding machines (such as resistance welding); measurement of irregular conductor currents (eg: rail current measurement);instrument measurement, clamp meter transformers (eg: measuring conductors with irregular dimensions).
Product Parameters
Electrical Parameters | Operating Voltage Level | 0.4/0.66/0.72kV | Accuracy Class | 5% (Without an integrator) |
Measurement Range | 10A～100kA | Response Bandwidth | 1Hz～1MHz | |
Coil Transformation Ratio | 5mV/kA、60mV/kA、 100mV/kA | Insulation Strength | 1000MΩ/500V/min | |
Coil Diameter (D) | Customizable | / | / | |
Mechanical Parameters | Shell Material | PC, flame retardant/94-V0 | Secondary Wiring | Shielded Wire or Aviation Connector |
Skeleton and Sheath | Silicon Rubber | IP Protection Rating | IP 65 | |
Operating Environment | Ambient Temperature | -45℃ ~ +85℃ | Altitude | ≤4000 m |
Relative Humidity | ≤ 90%RH @ 25℃ | Other | No corrosive gas where working |
Module Definition

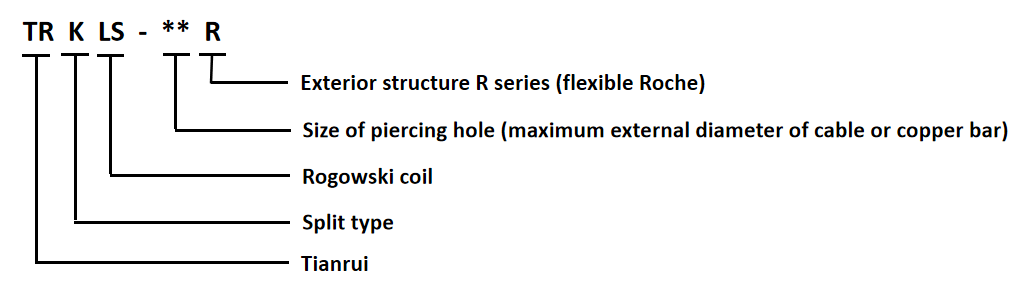

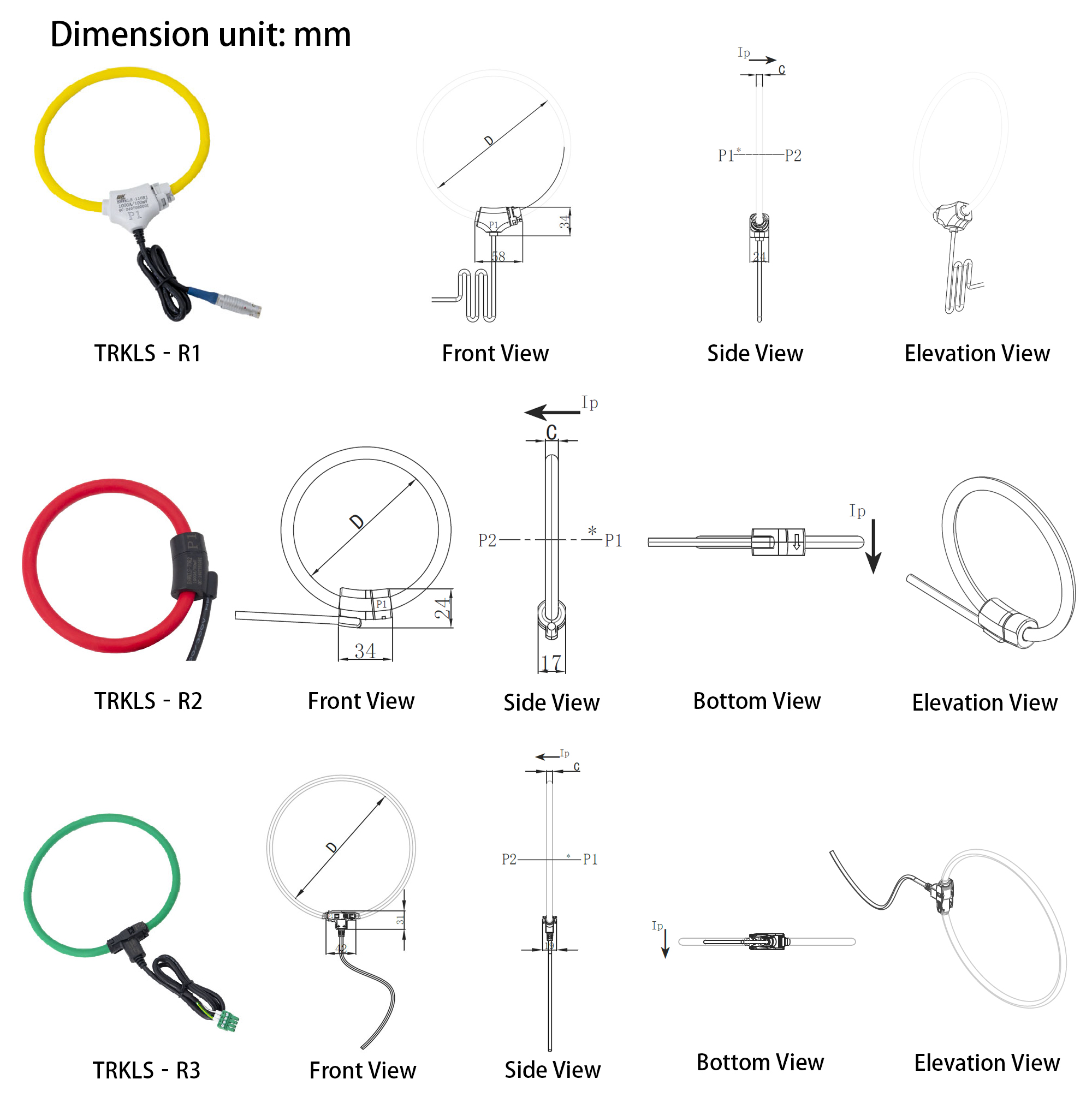

Overall Dimensions
Product Features
* Split-core structure, easy to install on site and easy to operate. Quick and easy installation or removal without disconnecting the primary cable under test, effective for safe and easy current testing.
* Low output voltage, high linearity, wide frequency range, no saturation (without integrator).
* The secondary output adopts shielded wire, and the length can be customized according to customer requirements.
* Flexible structure design, can detect the current of irregular primary conductor.
Product Application
Measurement of high current AC signals (such as short-circuit current); measurement of pulse signals with high peak values (such as lightning current); analysis of harmonic current signals; current measurement of electric welding machines (such as resistance welding); measurement of irregular conductor currents (eg: rail current measurement);instrument measurement, clamp meter transformers (eg: measuring conductors with irregular dimensions).
Product Parameters
Electrical Parameters | Operating Voltage Level | 0.4/0.66/0.72kV | Accuracy Class | 5% (Without an integrator) |
Measurement Range | 10A～100kA | Response Bandwidth | 1Hz～1MHz | |
Coil Transformation Ratio | 5mV/kA、60mV/kA、 100mV/kA | Insulation Strength | 1000MΩ/500V/min | |
Coil Diameter (D) | Customizable | / | / | |
Mechanical Parameters | Shell Material | PC, flame retardant/94-V0 | Secondary Wiring | Shielded Wire or Aviation Connector |
Skeleton and Sheath | Silicon Rubber | IP Protection Rating | IP 65 | |
Operating Environment | Ambient Temperature | -45℃ ~ +85℃ | Altitude | ≤4000 m |
Relative Humidity | ≤ 90%RH @ 25℃ | Other | No corrosive gas where working |
Module Definition
Overall Dimensions
