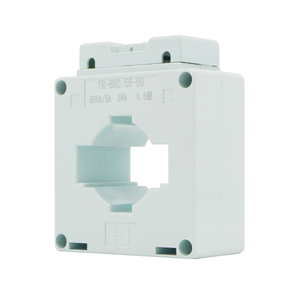

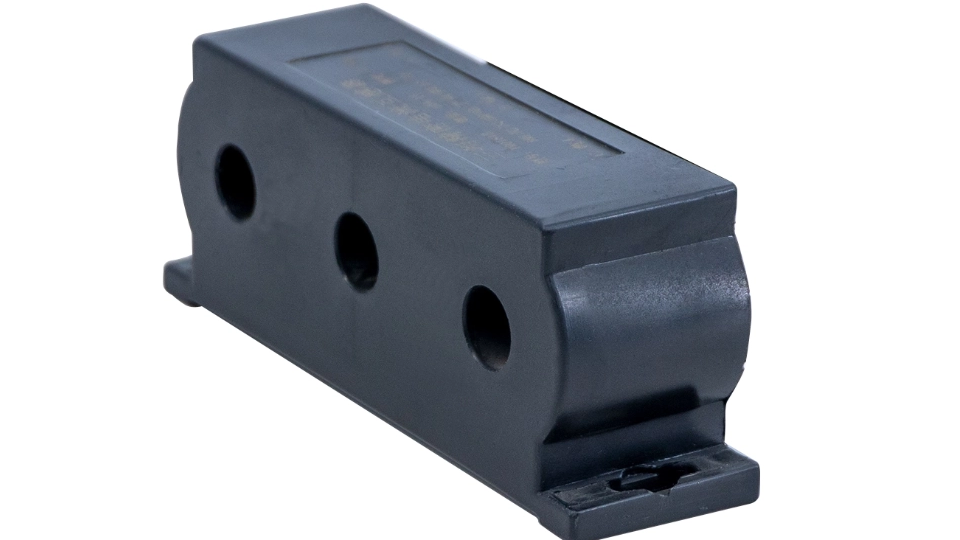

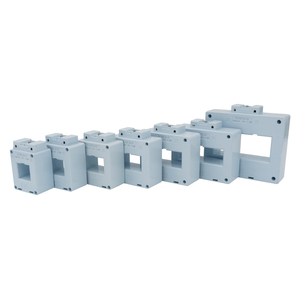

What Is A Current Transformer?

A Current Transformer (CT) is an electrical device designed to measure alternating current (AC) by producing a reduced current in its secondary winding proportional to the current flowing in its primary circuit. Current transformers are a type of instrument transformer used in power systems to safely monitor high current levels without directly connecting measuring instruments to the high-voltage circuit. They provide both measurement and protection functions in electrical networks.

Working Principle

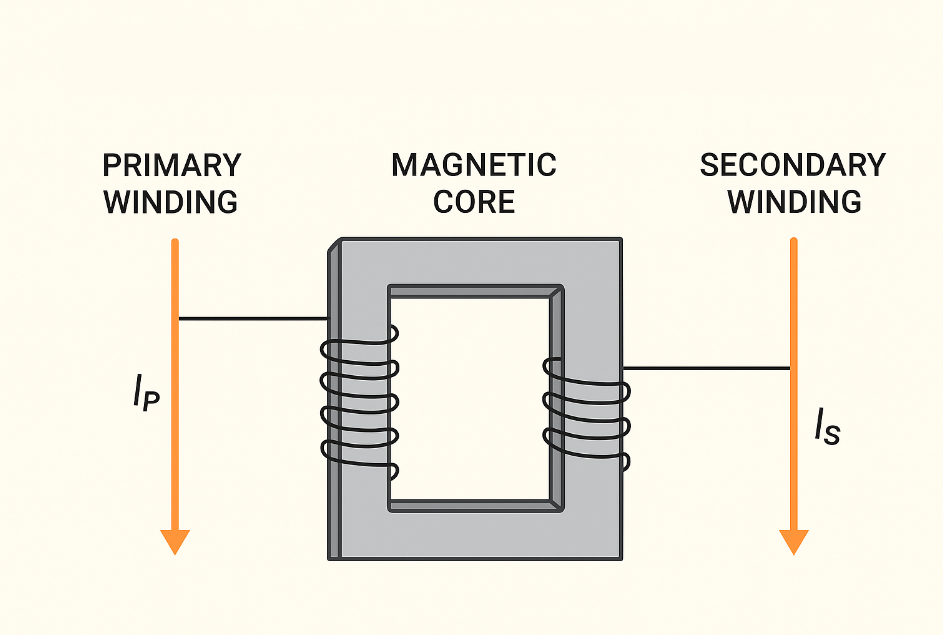

The working principle of a current transformer is based on electromagnetic induction.
The primary winding, which carries the current to be measured, is connected in series with the load.
The magnetic flux generated in the magnetic core induces a current in the secondary winding.
The ratio of primary to secondary turns defines the CT ratio, ensuring that the secondary current is a scaled-down, accurate replica of the primary current.
By connecting ammeters, relays, or energy meters to the secondary circuit, current values can be monitored or used for protection schemes without exposing equipment to dangerous current levels.

Applications of Current Transformers

1. Power System Monitoring

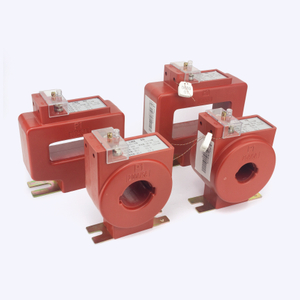

   Used in substations, transmission, and distribution networks to measure current and detect load changes. High-voltage and LV current transformer types are both applied depending on the voltage level.

2. Protection Systems
   Integrated with protective relays to detect overcurrent, short circuits, and earth faults.

3. Energy Metering

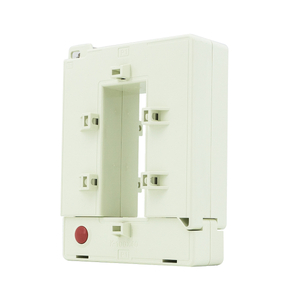

   Essential in smart grids and industrial power management for accurate billing and load analysis. Split core current transformer solutions are widely applied for precision metering.

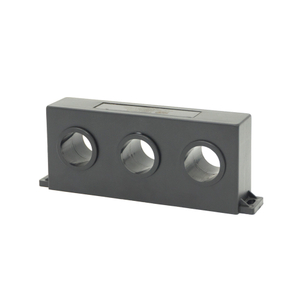

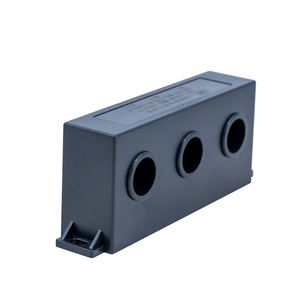

4. Industrial Equipment
   Protects motors, transformers, and generators by providing real-time current data for automated shutdown in case of faults.

5. Control Systems
   Used in automation and SCADA systems for feedback and control of electrical processes.

Development Trends

Miniaturization and Higher Accuracy: Emerging designs use advanced core materials and digital calibration to achieve high precision.

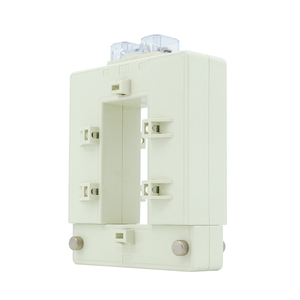

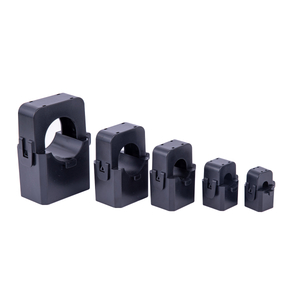

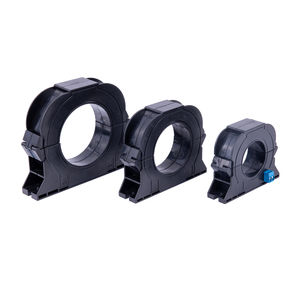

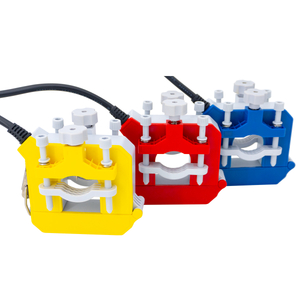

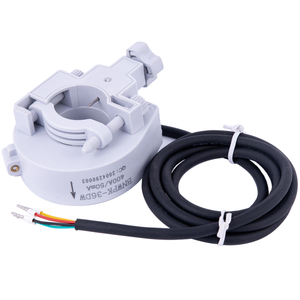

Non-Invasive and Split-Core CTs: Easier installation without interrupting the circuit, especially useful in retrofitting and maintenance.
Smart CTs for IoT and Smart Grids: Integration with digital communication protocols (like Modbus, IEC 61850) enables real-time monitoring, remote diagnostics, and predictive maintenance.
Wideband and DC Measurement: Research is moving toward current transformers capable of measuring not just AC but also DC and high-frequency currents for renewable energy and power electronics applications.
Eco-Friendly Materials: Development of CTs with reduced environmental impact, higher energy efficiency, and compliance with global sustainability standards.

In summary, a current transformer is a vital component in modern power systems, ensuring accurate current measurement, safe operation, and system protection. With the rapid growth of smart grids, renewable integration, and digital energy management, CT technology is evolving toward smart, compact, and multifunctional current transformers.
