What Device Detects Current Leakage?

Leakage current is the small and unintended current that flows from an electrical system to ground or to surrounding conductive parts due to insulation degradation, moisture, aging components, or faults in wiring. Detecting leakage current is important because even small leakage levels can indicate safety risks, energy loss, or the early stages of equipment failure. A leakage current sensor is specifically designed to detect and measure this unwanted current accurately and reliably.

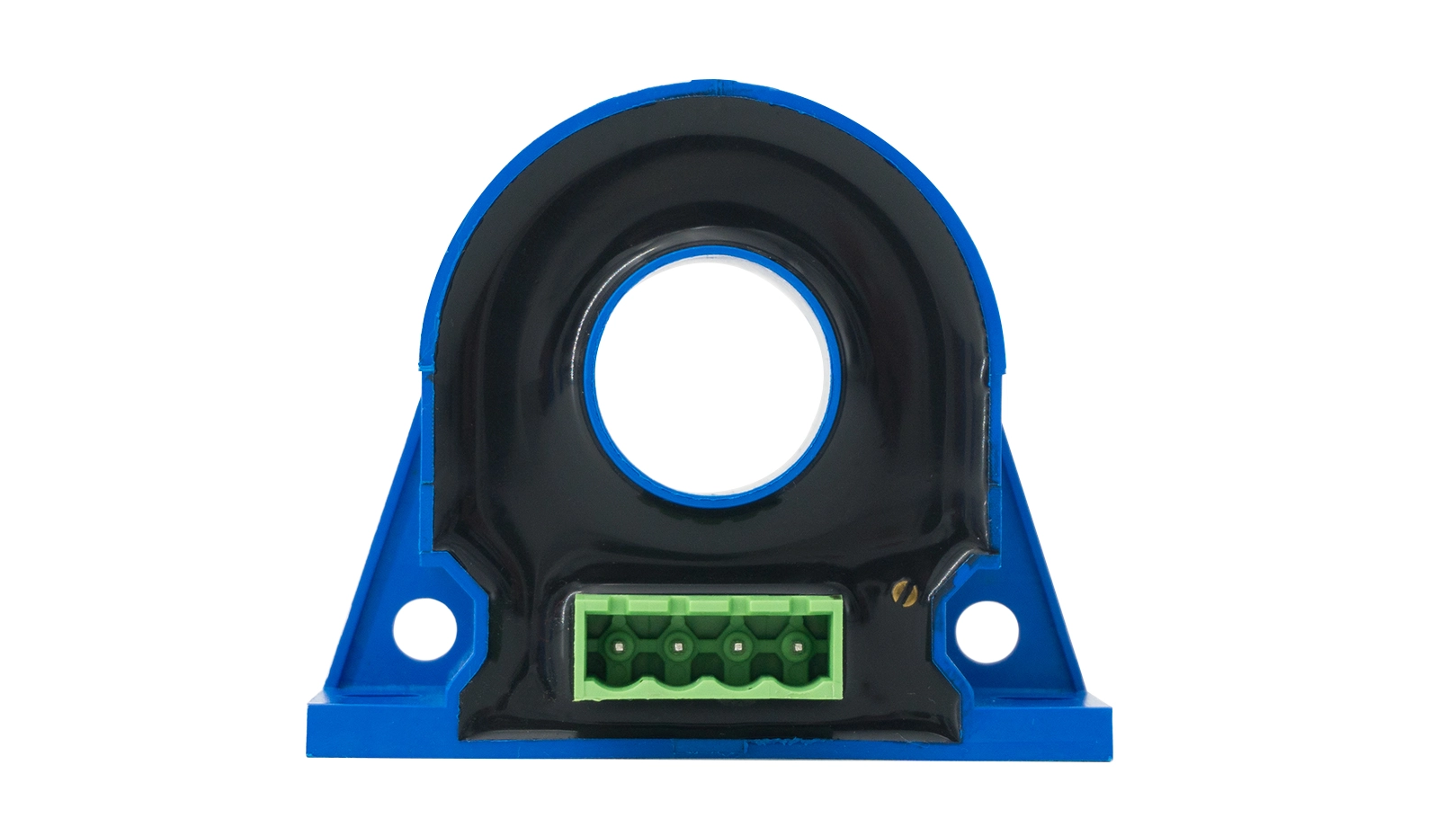

Leakage current detection is commonly achieved by measuring the imbalance of current between live conductors. In a normal electrical system, the current flowing through the phase conductor is equal to the current returning through the neutral conductor. When leakage occurs, part of the current escapes to ground, creating a difference between the outgoing and returning currents. A leakage current sensor surrounds both the phase and neutral conductors and detects this difference using electromagnetic principles. The resulting signal represents the leakage current and can be processed for monitoring or protection purposes.

Most leakage current sensors operate based on magnetic field detection. When all conductors pass through the sensor core, their magnetic fields cancel each other under normal conditions. If leakage is present, the cancellation is incomplete, and a residual magnetic field appears. This residual field is detected by a sensitive sensing element such as a current transformer or a Hall effect sensor. The sensor converts the detected magnetic field into a proportional electrical signal that represents the magnitude of the leakage current. This method allows non contact measurement and does not interfere with the normal operation of the circuit.

Leakage current sensors offer several important features. High sensitivity allows them to detect very small leakage currents, often at milliampere or even microampere levels. This is essential for early fault detection and personnel protection. Electrical isolation between the monitored conductors and the output ensures safety and protects connected monitoring devices. Fast response time enables rapid detection of abnormal conditions, supporting timely alarms or protective actions. Many leakage current sensors are compact and easy to install, with split core designs that allow installation without disconnecting existing wiring. They also provide stable performance in environments with electrical noise and temperature variations.

The application scenarios for leakage current sensors are wide ranging. In industrial equipment and automation systems, they are used to monitor insulation health and prevent unexpected downtime. In power distribution systems, leakage current sensors support ground fault detection and help reduce the risk of electrical fires. In residential and commercial buildings, they are used to enhance electrical safety and support compliance with safety standards. Renewable energy systems such as solar power installations rely on leakage current sensors to detect ground faults and ensure safe operation.

Leakage current sensors are also critical in medical equipment, where strict safety requirements demand continuous monitoring of leakage current to protect patients and operators. In electric vehicles and charging infrastructure, they help detect insulation faults and improve overall system safety. Overall, detecting leakage current using a leakage current sensor provides an effective way to improve safety, identify potential failures early, and ensure reliable operation across a wide range of electrical systems.
