TR0261-LKH24
TR

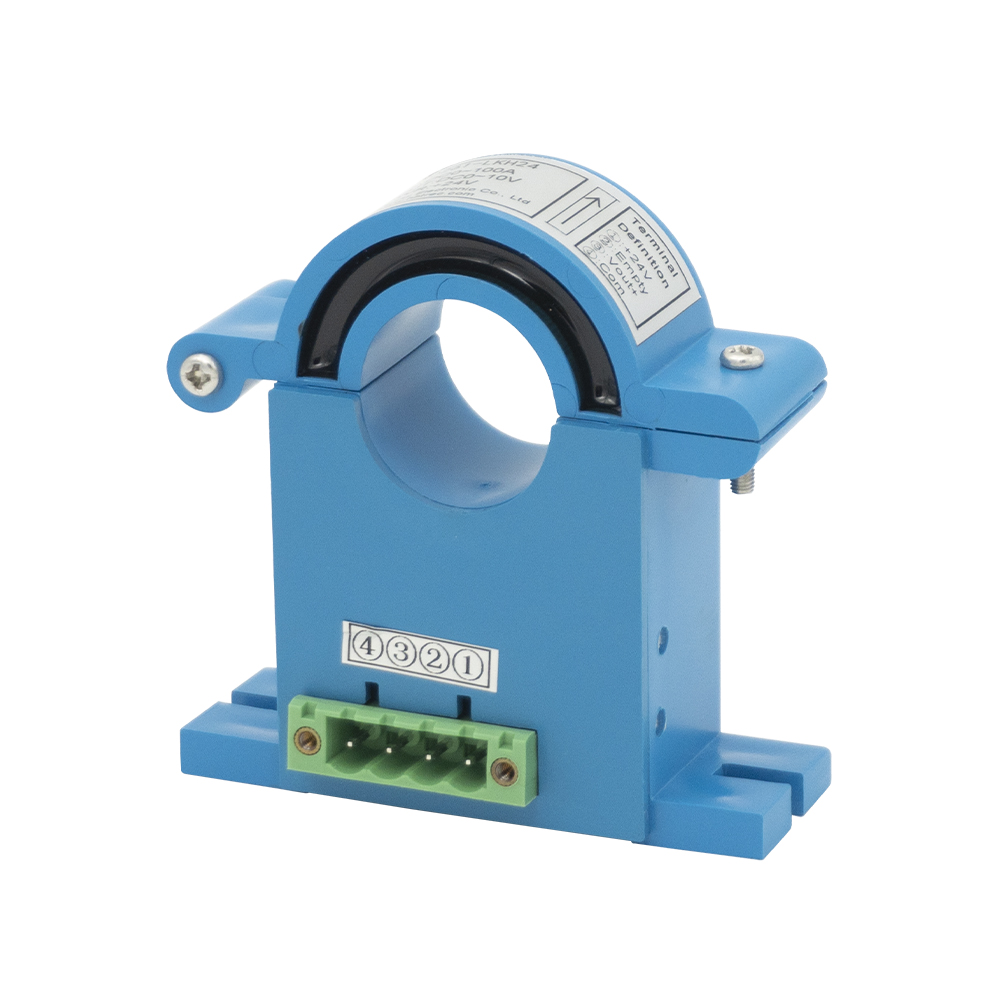

Product Overview
A Current Transducer is an electrical device that converts AC or DC current into a proportional output signal such as 0–5V, 0–10V, or 4–20mA. It provides complete electrical isolation between the high-voltage circuit and the measurement system, ensuring safe and reliable operation. Using technologies such as the Hall Effect or Current Transformer principle, it offers high accuracy, fast response, and stable performance. Current transducers are widely used in power systems, industrial automation, motor control, and renewable energy applications for current monitoring, overload protection, and energy efficiency management in modern electrical systems.
Products Features
* High immunity to interference.
* Excellent linearity performance.
* Long-term stability guaranteed.
* Reliable and accurate measurement.
Product Applications
* Motor starting protection systems.
* Electric locomotive applications.
* Power supply monitoring.
* Industrial drive protection.
Download Size Sheet
Mechanical Dimension(mm)
Circuit Connection Diagram
@TA=25℃,unless otherwise stated
Type | TR0261-LKH24 | |
IPN | Primary Rated Input Current | DC 100A |
IP | Primary Current Measure Range | DC 0~120A |
VSN | Secondary Rated Output Voltage | DC 10V |
UC | The Power Supply Voltage | DC +24V |
RL | Load Capacity | RL ≤ 300Ω |
X | Accuracy | ±1% |
BW | Frequency Bandwith | 0~1kHz |
Overload Capacity | 2 times | |
Ud | Power Frequency Withstand Voltage | 3kV AC/1min |
tr | Response Time | <250ms |
V0 | Offset Voltage | ≤ 20mV |
Temperature Drift | ≤200ppm/℃ | |
TA | Ambient Operating Temperature | -20℃~+80℃ |
TS | Ambient Storage Temperature | -25℃~+85℃ |
