Mini current transformer, often abbreviated as mini CT, is a compact, lightweight derivative of traditional electromagnetic current transformers, specially designed for low-current monitoring, space-limited electrical equipment and intelligent power measurement systems. Unlike large industrial CTs used in high-voltage power substations, mini CTs shrink magnetic cores, winding structures and installation dimensions while retaining accurate current signal conversion functions, making them an indispensable sensing component in smart electricity, new energy, household appliances and industrial control sectors. This article elaborates on its structural characteristics, working principles, key performance strengths and mainstream application scenarios.
The basic working mechanism of mini current transformers follows the electromagnetic induction law consistent with standard CTs. The primary winding bears the measured alternating current, which generates alternating magnetic flux inside the silicon steel or nanocrystalline magnetic core. The secondary winding induces a proportional low-current signal according to the turns ratio. For most miniature models, the primary current ranges from 1A to 100A, and the standard secondary output is 50mA or 100mA, matching the input range of sampling chips in energy meters, power monitors and protection modules. Manufacturers adopt high-permeability nanocrystalline alloy cores instead of conventional silicon steel to reduce core volume drastically; some split-core mini CT designs even eliminate the need to disconnect the main cable during installation, greatly improving construction efficiency for retrofitting projects.
Compared with traditional heavy-duty current transformers, mini CTs possess three prominent competitive edges: miniaturization, low power consumption and high measurement precision. In terms of size, a typical through-type mini CT measures less than 30mm in outer diameter, easily embedded inside circuit breakers, wall-mounted smart meters and EV charging control boards where installation space is extremely tight. Secondly, its low magnetic loss core cuts no-load power consumption to below 0.1VA, avoiding extra energy waste in low-power monitoring terminals. Thirdly, high-grade magnetic materials lower excitation current and phase displacement error, enabling class 0.2 or class 0.5 measurement accuracy, which fully meets national and international standards for commercial electricity metering and power quality analysis. In addition, mini CTs have excellent anti-interference performance; encapsulated epoxy resin shells shield internal windings from electromagnetic noise generated by inverters, frequency converters and switching power supplies, ensuring stable signal output in complex industrial electromagnetic environments.
Mini current transformers cover a wide range of civil and industrial application fields. In smart grid terminal equipment, they are core sensing units for single-phase and three-phase intelligent energy meters, collecting load current data for electricity settlement, overload alarm and leakage protection. In new energy industry, mini CTs monitor input and output current of small photovoltaic inverters, portable energy storage power stations and household wind power equipment, supporting real-time power generation statistics and overcurrent fault protection. For industrial automation, they are installed inside PLC control cabinets, servo drives and distribution boxes to track equipment operating current, realize motor overload protection and energy consumption statistics for factory energy management systems. Consumer electrical products also widely adopt mini CTs: high-power air conditioners, induction cookers and charging piles use them to detect abnormal current, trigger power-off protection and optimize energy efficiency control logic. Split-core mini CTs are especially favored by engineering teams for building energy renovation, as they can clamp onto existing cables without cutting off power supply, reducing construction downtime and safety risks.

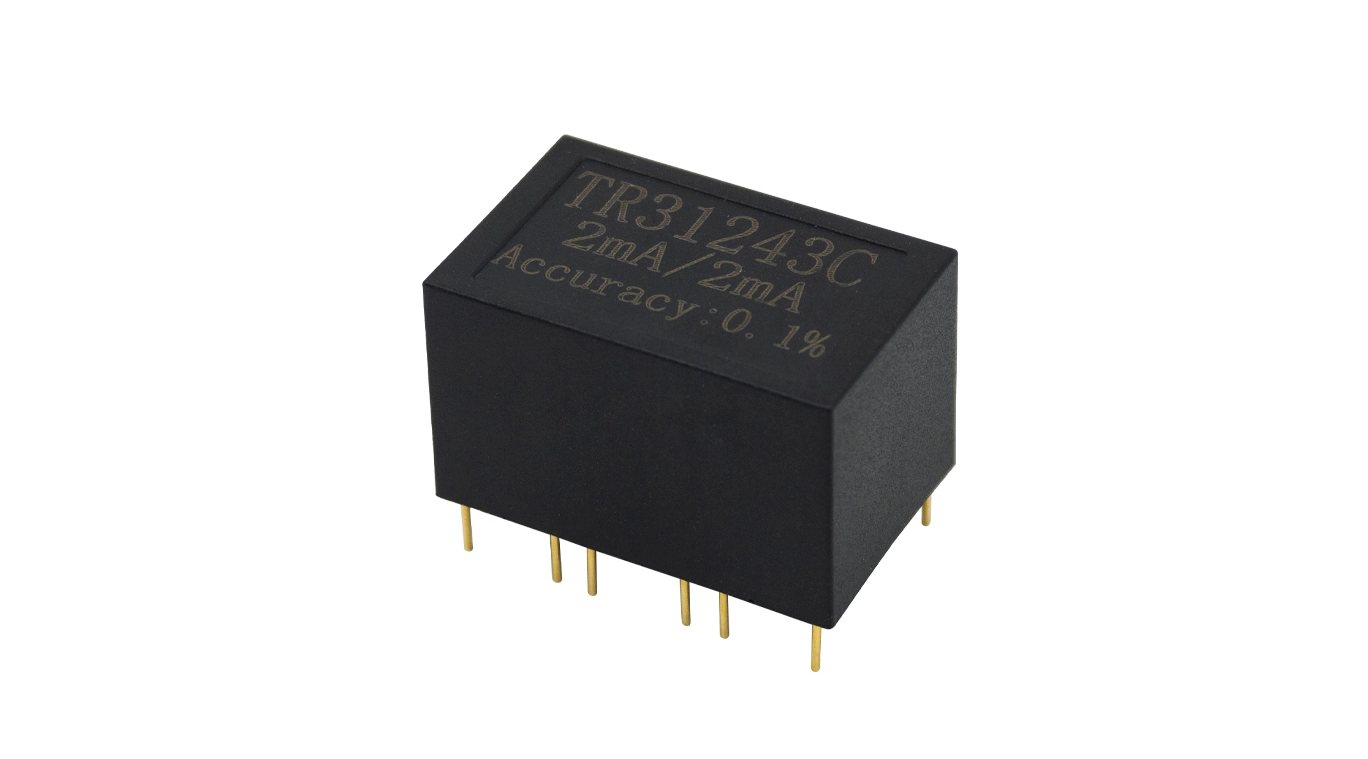

In recent years, the rapid development of smart power and microgrid technology has continuously driven iterative upgrades of mini current transformers. Manufacturers are developing ultra-small patch-type mini CTs for PCB direct welding, further reducing equipment overall volume, while integrating insulation reinforcement to raise withstand voltage levels for safety compliance. As global demand for energy conservation, carbon emission monitoring and intelligent electrical control rises, mini CTs will maintain steady market growth. Their compact structure, reliable precision and flexible installation methods make them irreplaceable micro-current sensing devices, bridging high-current power circuits and low-voltage signal processing circuits, and laying a solid hardware foundation for the digital transformation of the entire power industry.
