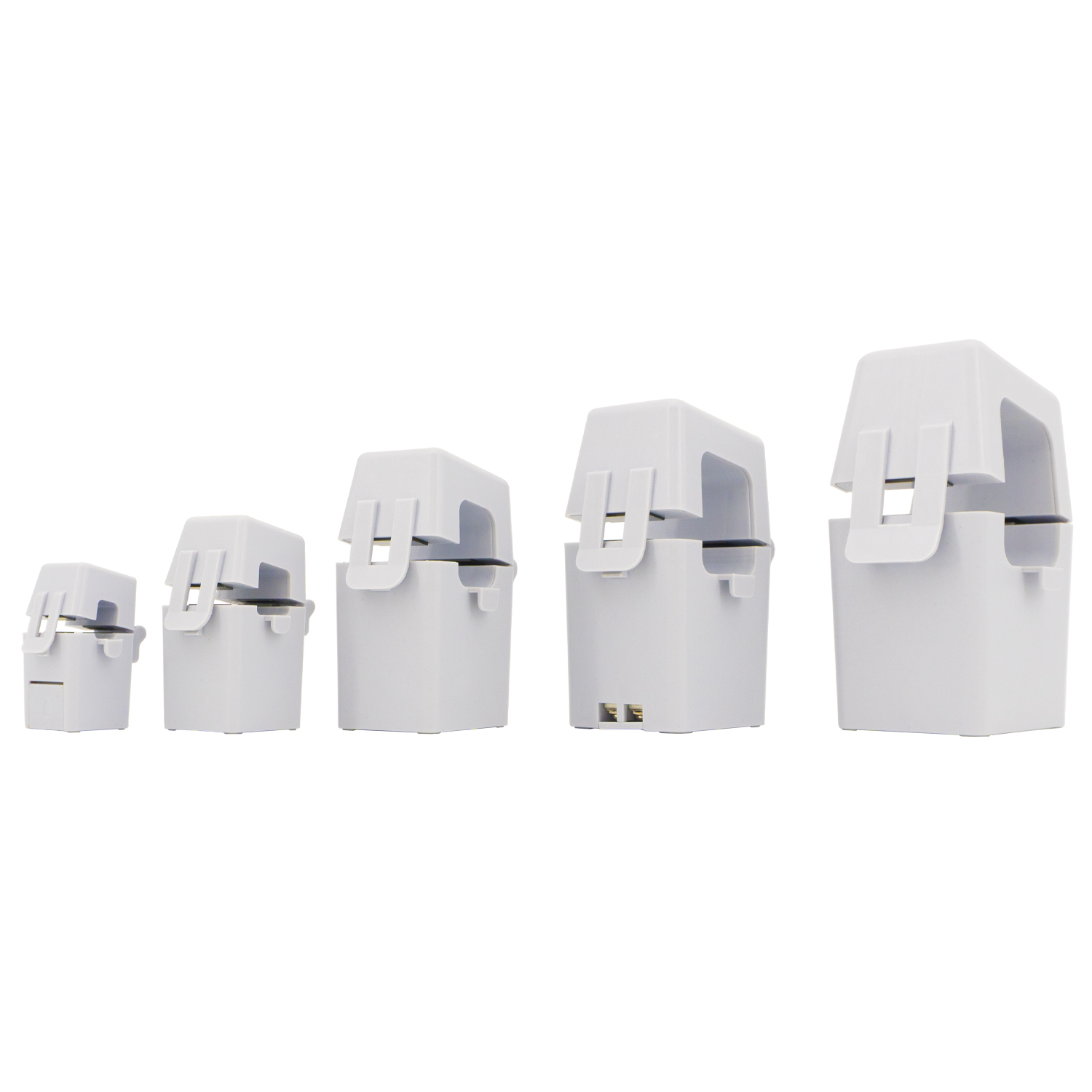

Current transformers (CTs) are essential instrument transformers designed to step‑down high primary current into a standardized low‑value secondary current for measurement, metering and protection. They isolate high‑voltage power systems from low‑voltage control circuits, ensuring operator safety while converting large currents to levels compatible with common electrical devices.
One major application is energy metering in power grids. Utility companies install current transformersalongside voltage transformers at substations, distribution cabinets and large‑capacity consumer premises. High load currents cannot be directly fed into electricity meters. CTs reduce primary current to 5 A or 1 A secondary output, so watt‑hour meters can accurately record power consumption for billing. Commercial buildings, industrial factories and renewable power stations all rely on CT‑assisted metering to track power flow without breaking high‑current main conductors.
Electrical protection is another core field. In power distribution networks, faults such as short‑circuits generate destructive over‑currents. Protection‑class current transformers deliver proportional secondary signals to relays. When abnormal current is detected, relays trigger circuit breakers to trip faulty sections quickly. This prevents damage to generators, transformers, cables and switchgear. CTs are widely used in over‑current protection, differential protection for motors and busbar protection, forming the first line of defence for power equipment.
Industrial process monitoring also depends heavily on current transformers. In manufacturing plants, CTs monitor operating current of large motors, frequency converters and welding equipment. Operators can judge equipment working status from transformed current data. Over‑load, phase loss and unbalanced three‑phase conditions can be identified at an early stage. Real‑time current readings help optimise production efficiency and reduce unexpected machine shutdowns.
Renewable energy systems have growing demand for CT devices. Solar photovoltaic combiner boxes and wind turbine power cabinets use current transformers to measure output current from power generation units. System controllers collect CT signals to assess power generation performance, detect string faults and achieve grid‑connected control. Safe galvanic isolation provided by CTs avoids risk of high‑voltage leakage in new‑energy sites.
In summary, current transformers bridge high‑current power equipment and low‑voltage control instruments. They serve power metering, fault protection, industrial monitoring and new‑energy grid connection. Without CT technology, safe and reliable operation of modern power systems would be difficult to realise.
