Revenue-grade sensors refer to measurement devices that meet strict national metering standards for electricity billing, requiring long-term stability, high precision under full load ranges, minimal temperature drift and certified accuracy for commercial energy settlement. Generally speaking, standard Rogowski coils cannot be classified as native revenue-grade transducers, while specially optimized, certified Rogowski products can achieve revenue-grade performance with extra matched circuits.
The core structural feature of Rogowski coils is an air-core flexible winding without ferromagnetic material. Unlike iron-core current transformers (CTs) that directly output proportional current signals for metering, Rogowski coils induce voltage based on the changing rate of measured current (di/dt). An integrator circuit is mandatory to reconstruct the original current waveform, which creates inherent barriers to basic revenue-grade compliance. Ordinary low-cost Rogowski integrators suffer from DC drift, temperature deviation and component aging. These cumulative errors cause unstable readings over months of continuous operation, failing the long-term precision requirements of billing meters. Additionally, air-core design delivers weak signal output under low current loads, leading to large relative errors at light load conditions—a critical flaw for revenue metering, where accuracy must hold from 5% to 120% rated current.

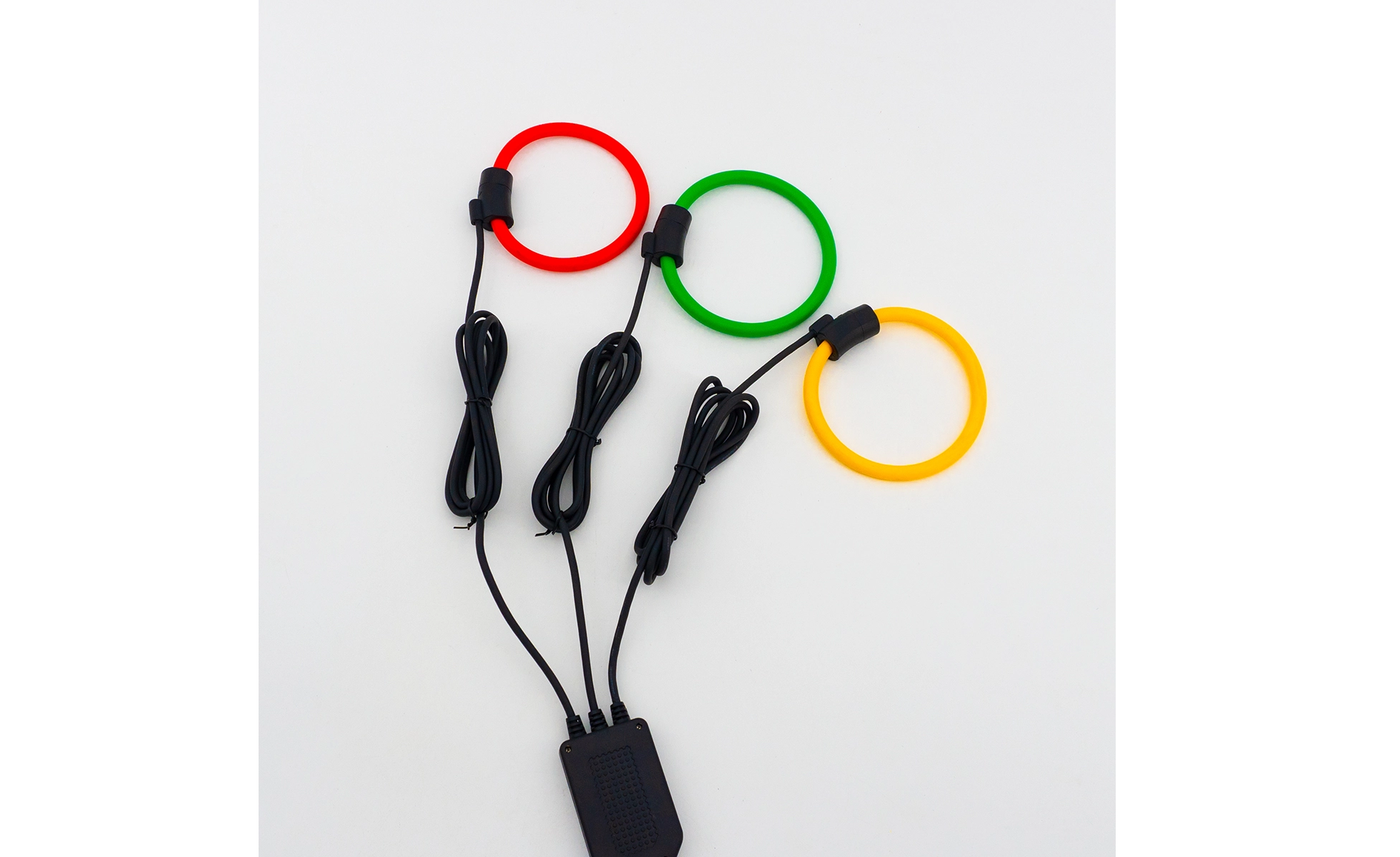

Nevertheless, high-end certified Rogowski systems break this limitation. Manufacturers adopt ultra-low drift digital integrators, temperature compensation algorithms and full electromagnetic shielding to suppress interference. These calibrated sets pass IEC 61869 metering standards and obtain revenue-grade certification. Compared with conventional iron-core CTs, certified revenue-grade Rogowski coils retain unique strengths: no magnetic saturation under extreme short-circuit surge currents, flexible split-loop structure for live installation without power cut, lightweight size and wide measurable current range from hundreds to tens of thousands of amperes. They also eliminate residual magnetism risks that plague iron-core CTs after heavy fault currents.
In application scenarios, non-certified Rogowski coils serve industrial monitoring, power electronics testing, fault transient capture and high-current switchgear inspection, where rough real-time waveform tracking suffices and billing precision is unnecessary. Certified revenue-grade Rogowski solutions target special metering sites unsuitable for iron-core CTs: large busbar power distribution cabinets, wind and solar inverter grid-tie metering, industrial heavy-current energy monitoring, and temporary power rental metering. Their flexible coils easily wrap around thick copper busbars without disassembling power circuits, greatly reducing installation labour costs.
In conclusion, standalone regular Rogowski coils are not revenue grade due to drift and low-current error defects. Only fully optimized, calibrated and certified Rogowski coil-integrator assemblies meet strict metering standards for electricity revenue settlement. Their distinctive flexible, saturation-free design makes them a competitive alternative to traditional CTs for heavy-current metering applications, despite stricter matching and calibration requirements for billing use.
