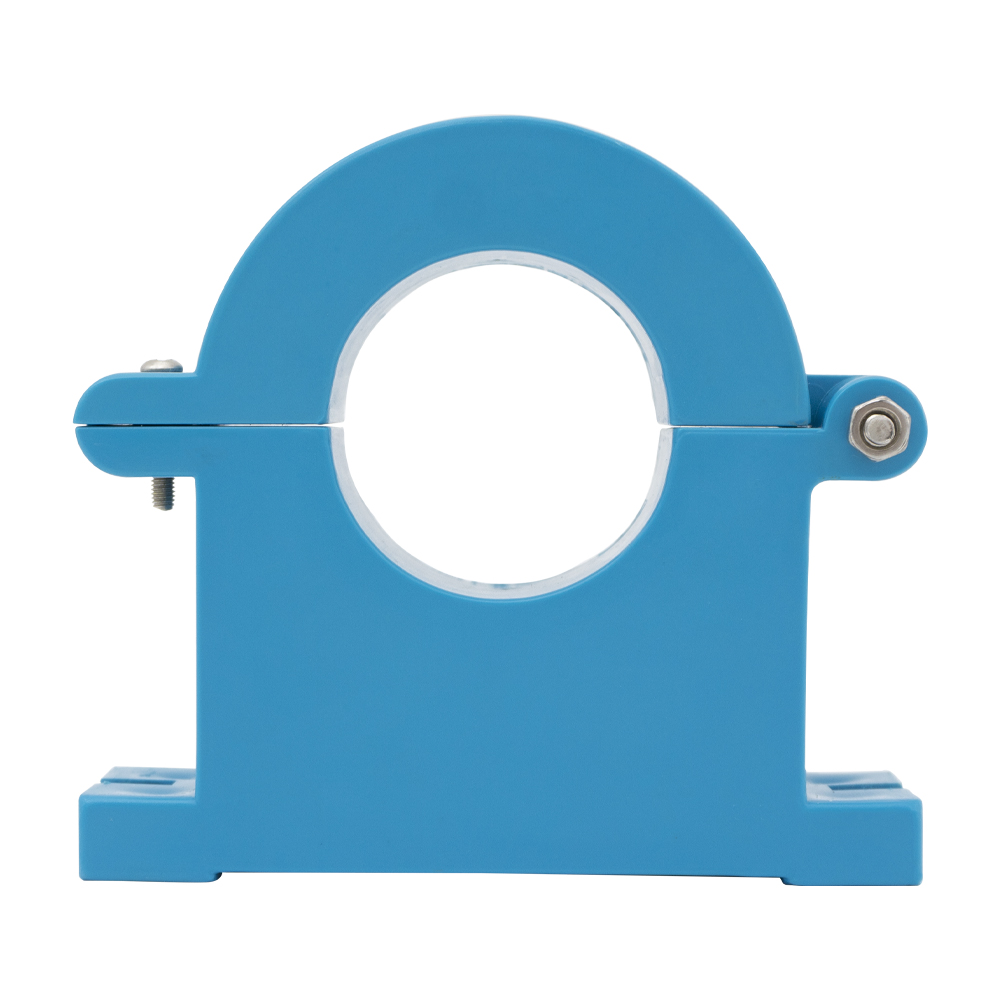

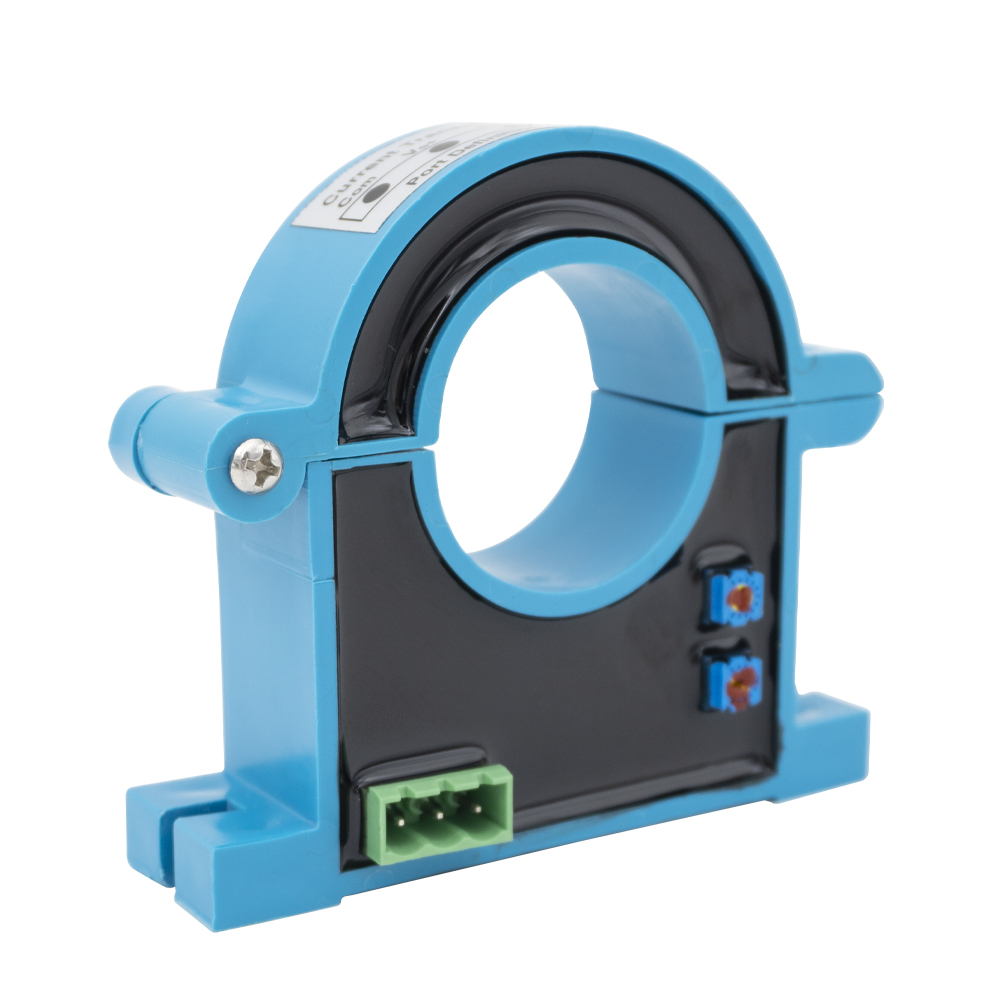

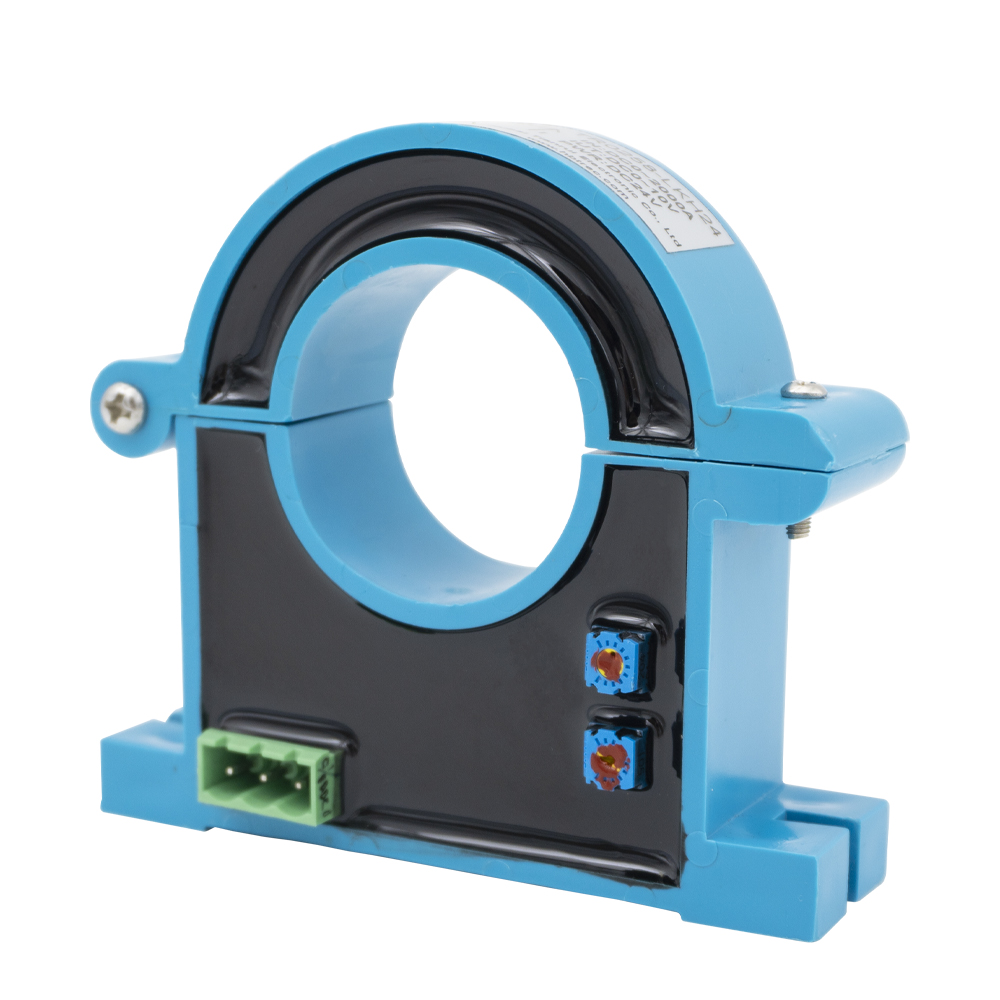

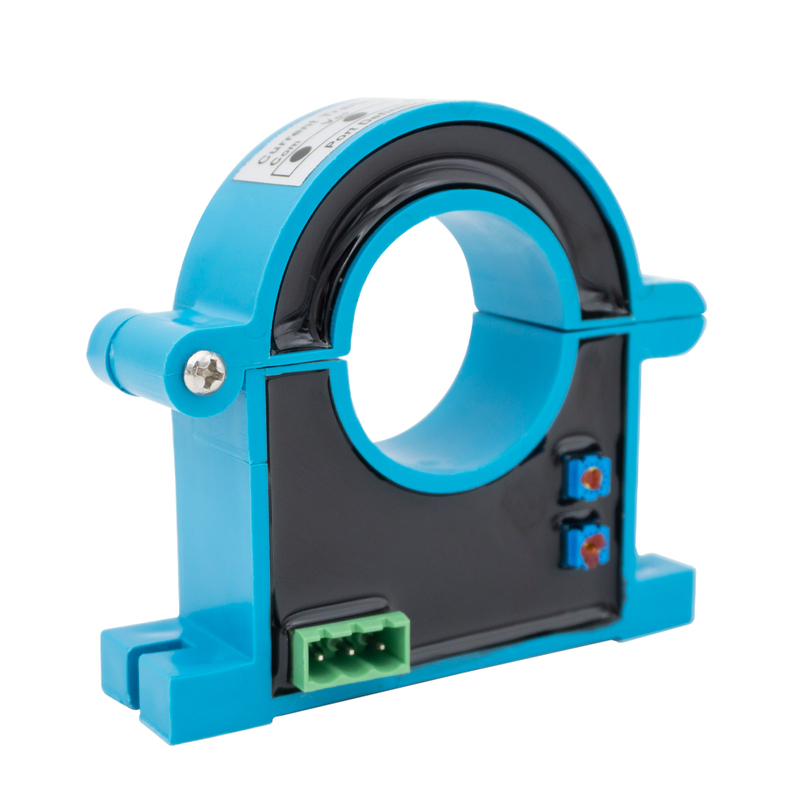

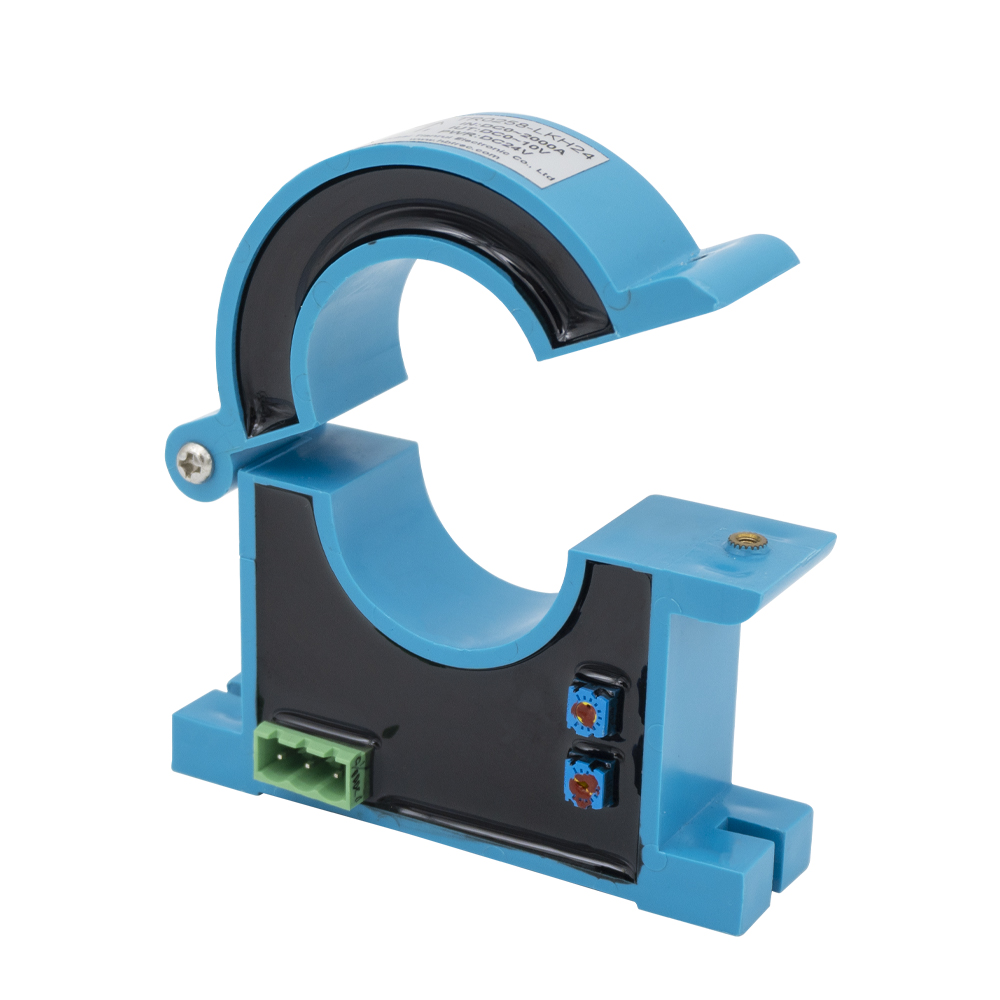

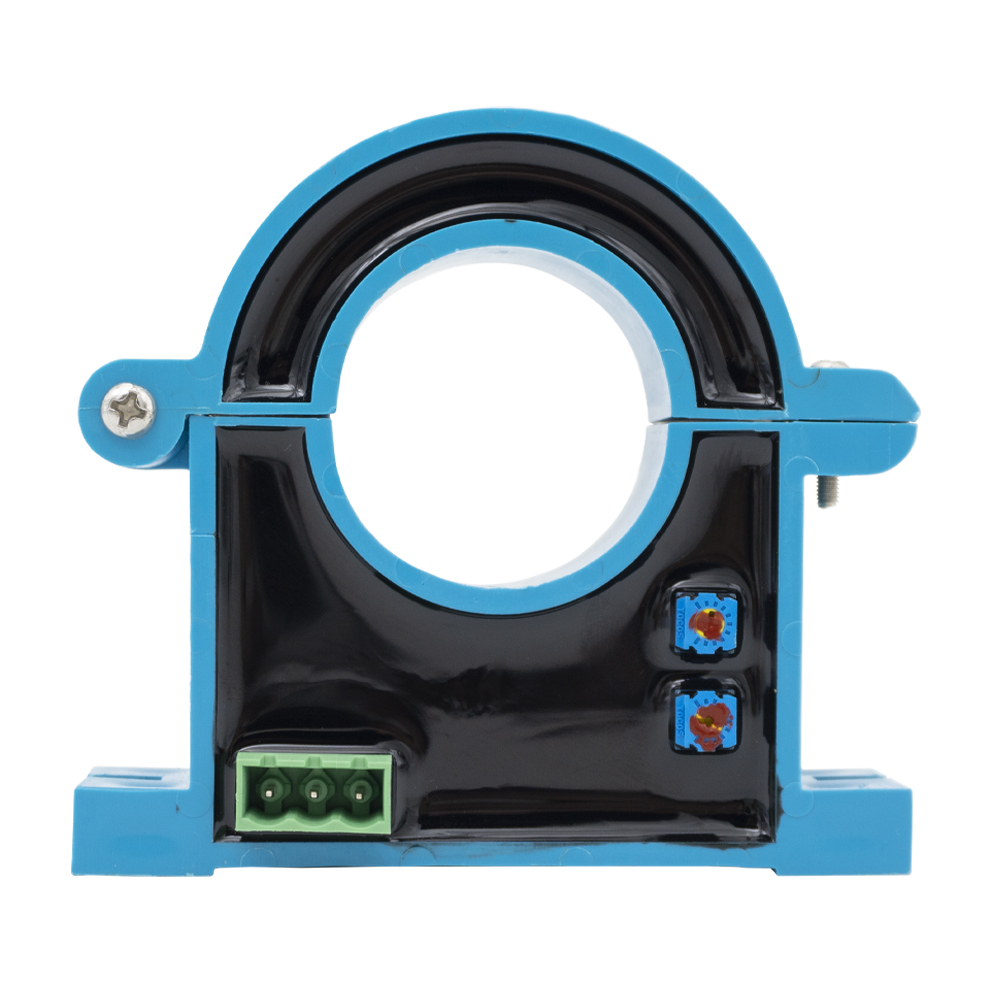

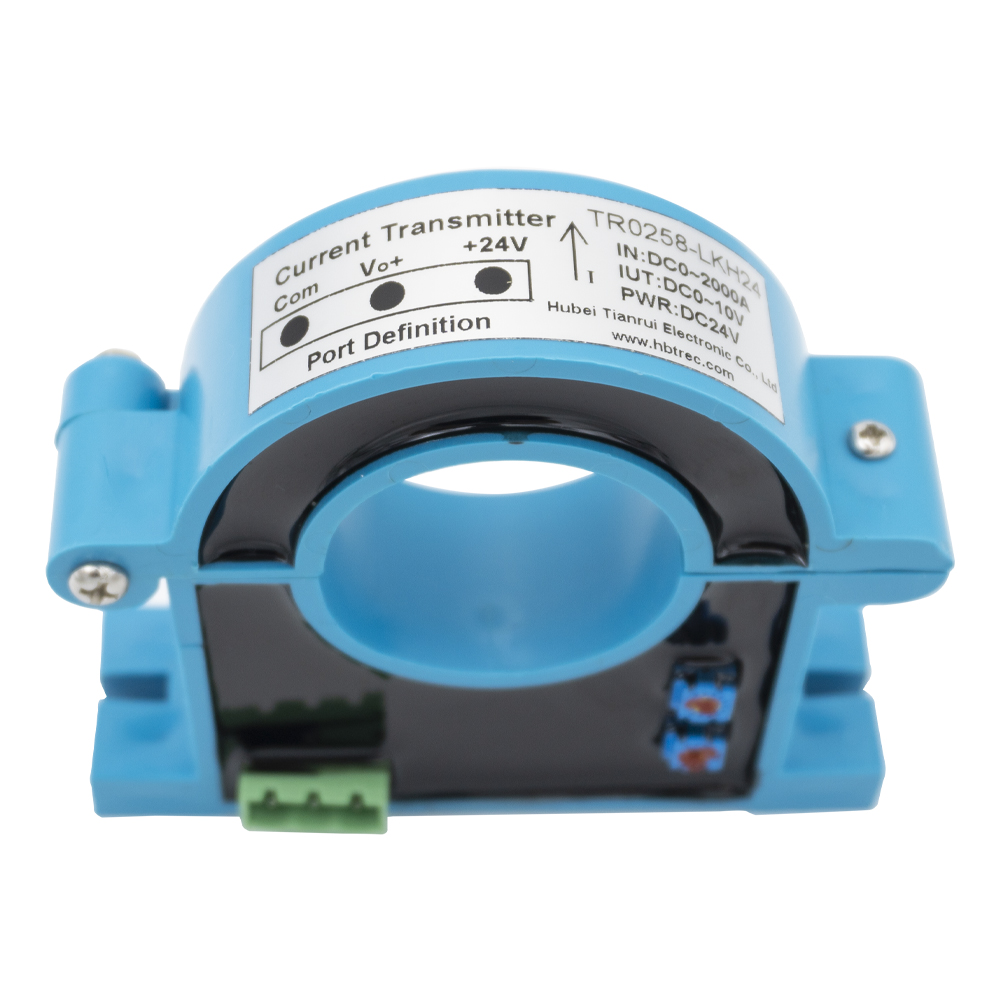

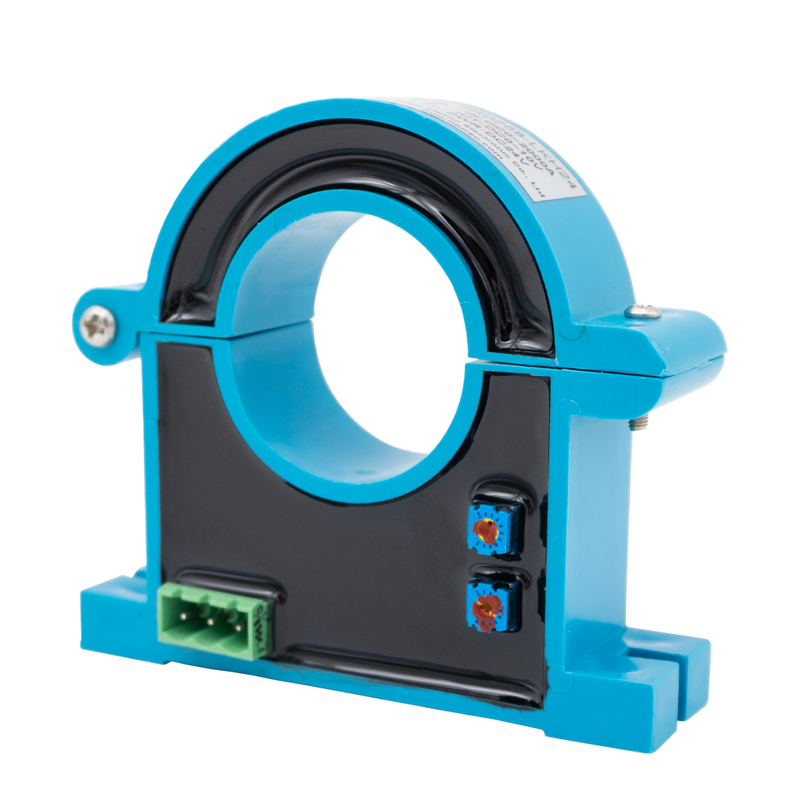

TR0258-LKH24 ‌Open-Loop Hall Effect Current Sensor DC 0~2000A/DC 0~10V

The Open-Loop Hall Effect Current Sensor operates on the ‌direct-measurement Hall-effect detection principle‌. The magnetic flux generated by the primary current is concentrated through the magnetic circuit and converted into a Hall voltage signal by the Hall device. After amplification by an amplifier, this voltage signal ‌accurately reflects the magnitude of the primary current‌.
Availability:
Inquire Add to Basket

  • TR0258-LKH24

  • TR

Products Features

Best cost-performance ratio

Low power consumption

Compact and lightweight design

Easy installation, no insertion loss

Applications

Variable frequency drive systems

Welding machine control

Electrochemical applications

Power supply monitoring

Mechanical Dimension(mm)

Circuit Connection Diagram

Technical Data

@TA=25℃,unless otherwise stated

Type

TR0258-LKH24

IPN

Primary Rated Input Current

DC 2000A

IP

Primary Current Measure Range

DC 0~2400A

VSN

Secondary Rated Output Voltage

DC 10V

UC

The Power Supply Voltage

DC 24V

RL

Load Capacity

RL≤650Ω

εL

Linearity

0.5%

X

Accuracy

±0.5%

BW

Frequency Bandwith

DC~20kHz

di/dt Accurately Followed

>50A/μs

IC

Current Consumption

≤25mA

Ud

Power Frequency Withstand Voltage

2.5kV AC/1min

tr

Response Time

<200ms

I0

Offset Current

≤80μA

Temperature Drift

≤500ppm/℃

TA

Ambient Operating Temperature

-10℃~+70℃

TS

Ambient Storage Temperature

-25℃~+85℃
