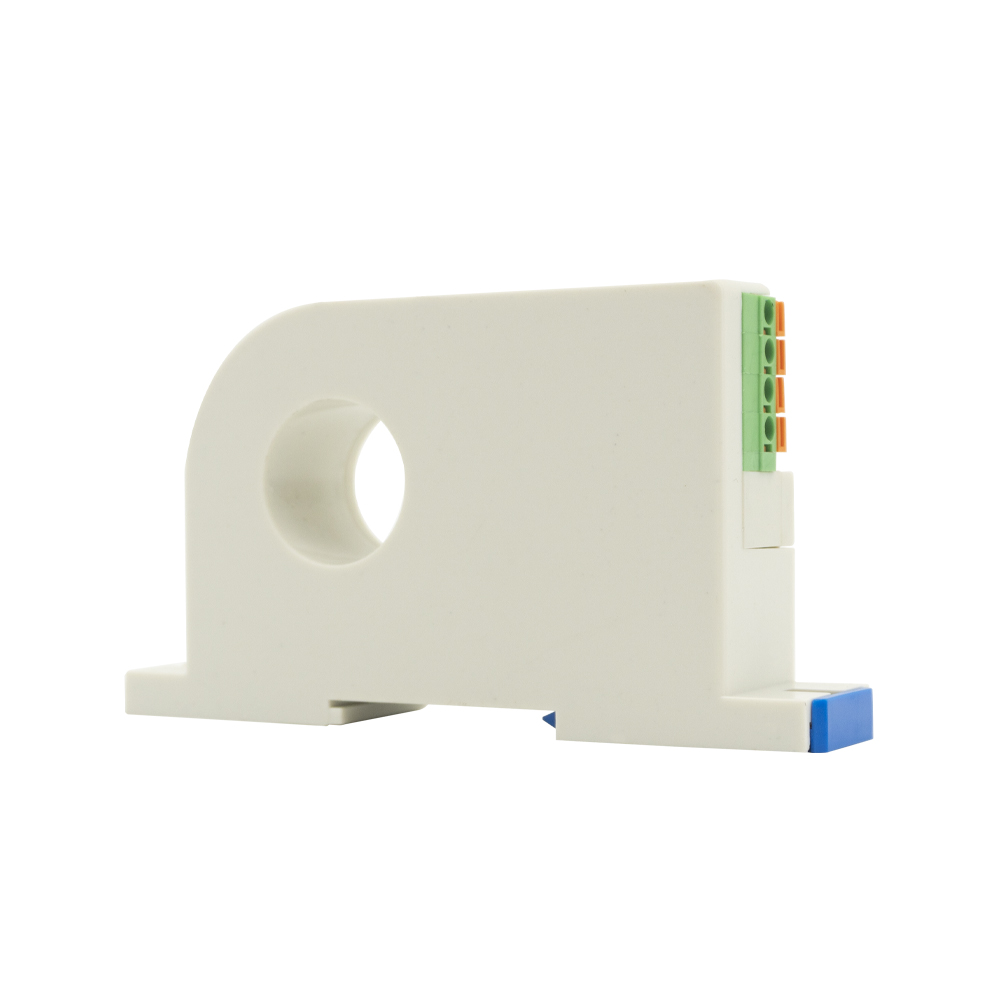

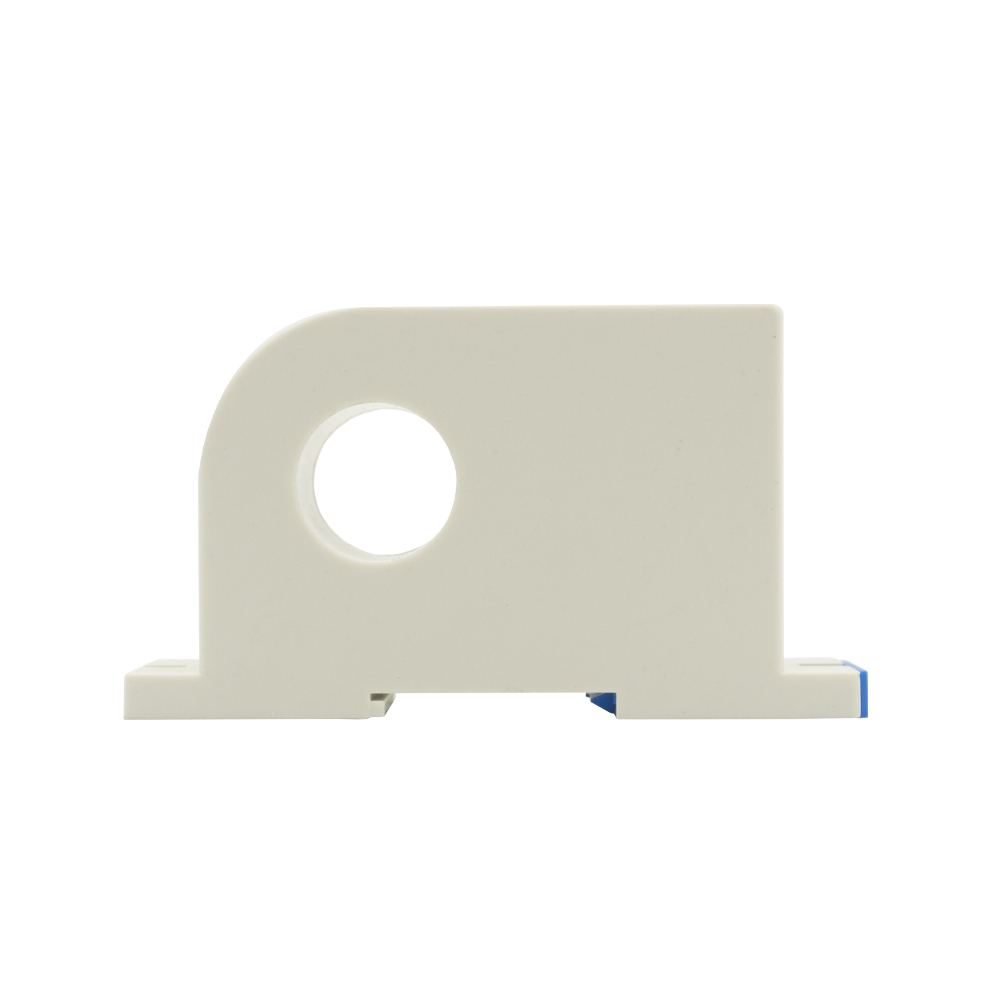

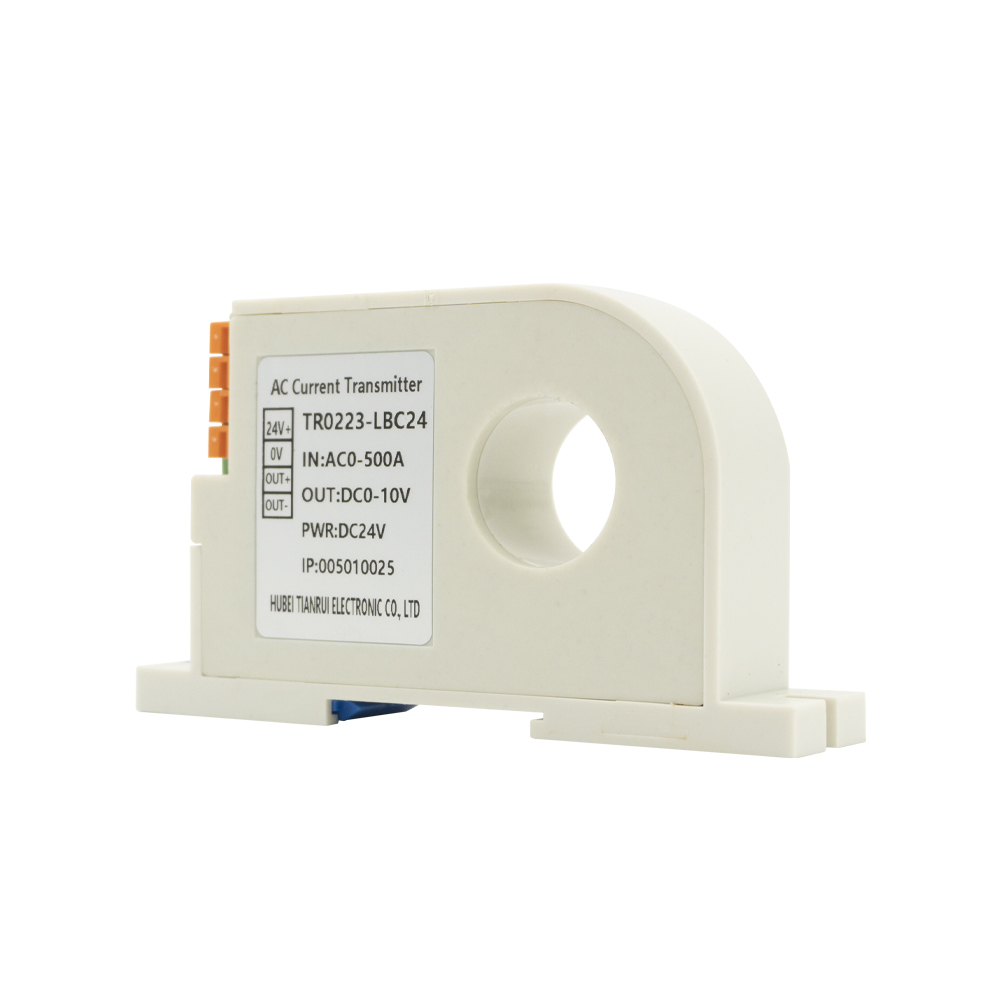

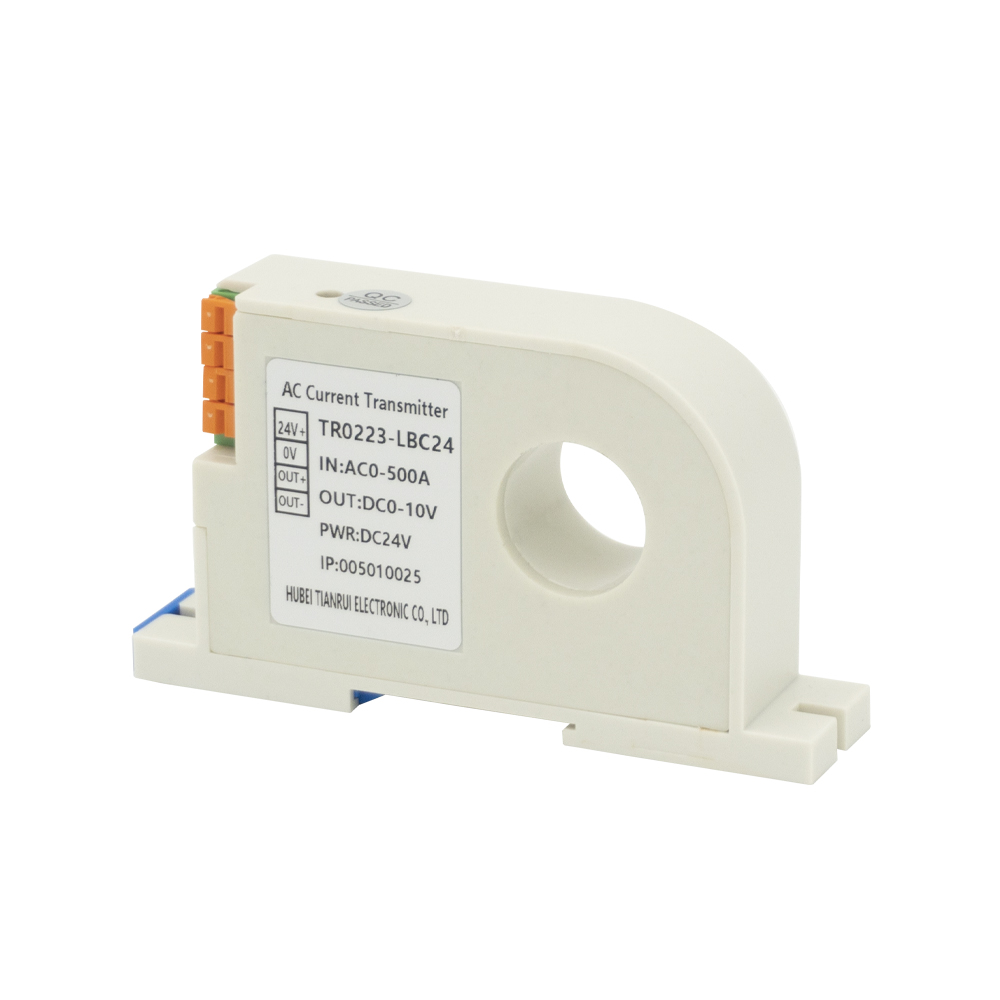

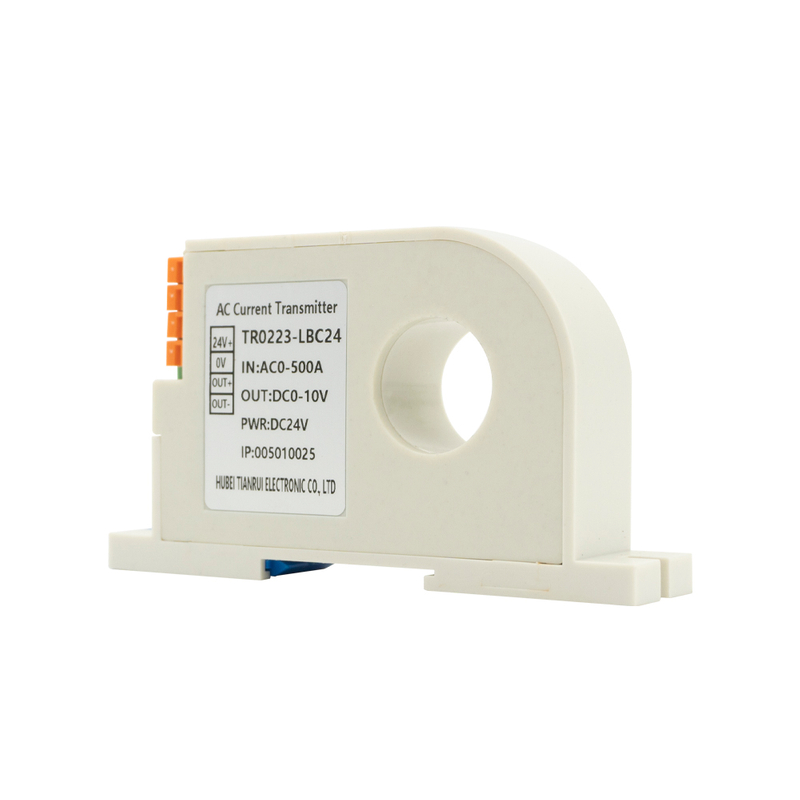

TR0223-LBC24
TR
Product Overview
An AC current transducer is designed to accurately measure alternating current and convert it into a stable and standardized output signal for monitoring and control systems. It provides real-time current information that helps improve equipment protection, enhance system efficiency, and ensure safe operation. With features such as high accuracy, rapid response, and strong electrical isolation, AC current transducers are widely used in industrial automation, power distribution, energy management, and HVAC equipment. They enable seamless integration with PLCs, meters, and data acquisition devices, making them essential components for reliable current measurement across various AC power applications.
Product Features
High accuracy and stable signal output
Strong electrical isolation for safety
Fast response to changing AC loads
Compact design for easy system integration
Applications
Industrial automation equipment monitoring
Power distribution and electrical panels
Energy management systems and smart meters
HVAC systems and motor current detection

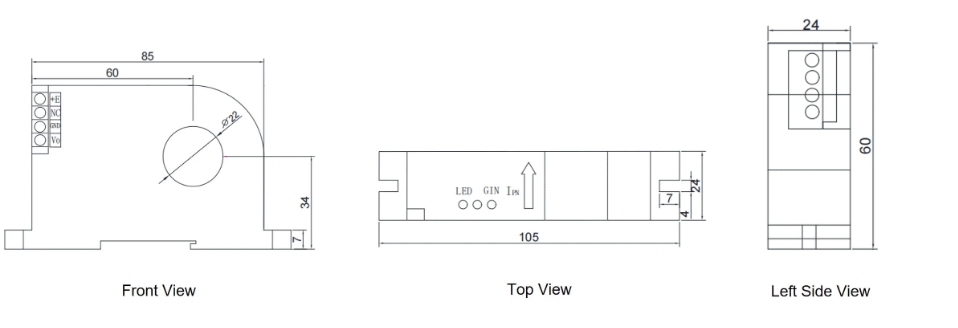

Mechanical Dimension(mm)
Type | TR0223-LBC24 | |
IPN | Primary Rated Input Current | AC 15A |
IP | Primary Current Measure Range | AC 0-18A |
VSN | Secondary Rated Output Voltage | DC 10V |
UC | The Power Supply Voltage | DC 24V |
RL | Load Capacity | RL ≤ 500Ω |
εL | Linearity | 0.1% |
X | Accuracy | ±0.5% |
BW | Frequency Bandwith | 40 ~ 5kHz |
Overload Capacity | 10 times | |
IC | Current Consumption | <15mA+IS |
Ud | Power Frequency Withstand Voltage | 2.5kV AC/1min |
tr | Response Time | <200ms |
I0 | Offset Current | ≤80μA |
Temperature Drift | ≤500ppm/℃ | |
TA | Ambient Operating Temperature | -10℃-+70℃ |
TS | Ambient Storage Temperature | -25℃-+85℃ |
