How Does A Low Voltage Current Transformer Work?

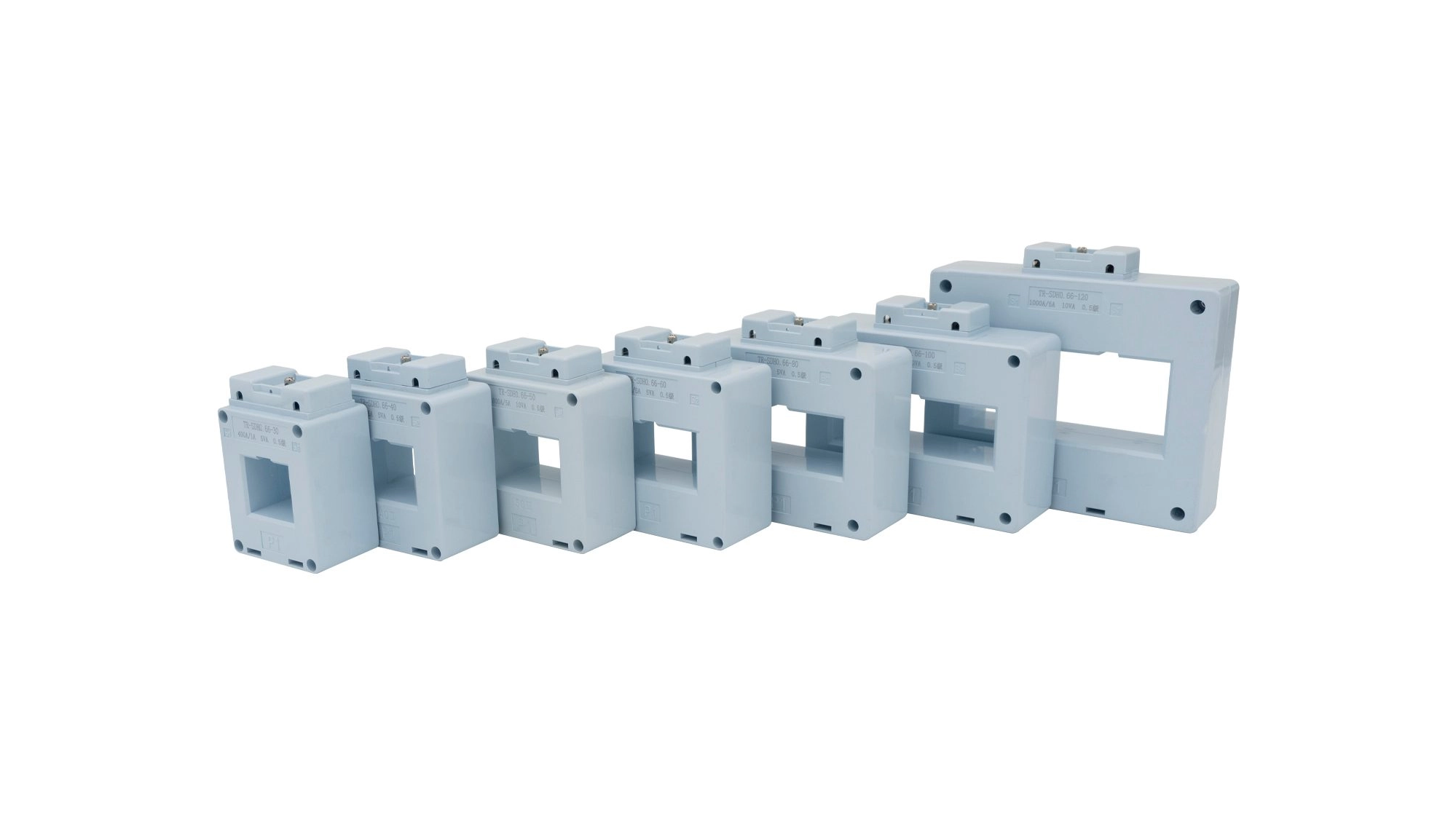

A Low Voltage Current Transformer (LVCT) is an essential device used in electrical power systems to measure, monitor, and protect low voltage circuits. Typically applied in systems with rated voltages below 1kV, LV current transformers provide accurate current measurement by converting high primary currents into lower, proportional secondary currents suitable for instruments, relays, and metering equipment. They ensure electrical safety, enable efficient energy management, and support fault detection in industrial and commercial power networks.

Working Principle:

The Low Voltage Current Transformer operates on the principle of electromagnetic induction. When alternating current (AC) passes through the primary conductor, it generates a magnetic field around it. The LVCT’s magnetic core captures this magnetic flux and induces a proportional current in the secondary winding. The induced secondary current maintains a fixed ratio to the primary current (for example, 1000:5A), allowing accurate current measurement without directly exposing measuring instruments to high current levels.

The magnetic core material—often made from high-permeability silicon steel or nanocrystalline alloys—minimizes core losses and ensures linearity across a wide current range. The insulation between primary and secondary circuits guarantees electrical safety. During operation, the LVCT reproduces the waveform of the primary current with minimal phase and amplitude error, enabling precise metering, energy auditing, and protective relay coordination.

Key Features:

High Measurement Accuracy:
Provides precise current transformation with low ratio and phase errors, ensuring reliable readings for meters and relays.

Compact and Robust Design:
Built for easy installation within switchgear panels, busbar systems, or power distribution boards. The durable casing ensures mechanical strength and protection against dust, humidity, and vibration.

Enhanced Electrical Insulation:
Designed with high-quality insulation materials to withstand low-voltage environments safely while preventing dielectric breakdown or short circuits.

Wide Measurement Range:
Supports various primary current ratings (from a few amperes up to several thousand amperes), enabling flexible use in diverse electrical systems.

Safety and Isolation:
Provides galvanic isolation between high-current primary circuits and sensitive measuring instruments, protecting personnel and devices from electrical hazards.

Applications:

Low Voltage Current Transformers are widely used across industrial, commercial, and utility power systems. In industrial automation, they monitor motor loads, detect overloads, and support process optimization. In commercial buildings, LVCTs are integral components of energy management systems (EMS) and smart meters, helping track energy consumption and improve efficiency.

They are also extensively used in low-voltage distribution panels, control cabinets, switchboards, and renewable energy systems such as solar and wind power installations for current measurement and load balancing. Furthermore, LVCTs serve in protective relaying—detecting abnormal current conditions like short circuits or ground faults—to trigger circuit breakers and prevent equipment damage.

In summary, the lv Current Transformer is a vital instrument for accurate current sensing, protection, and control in low-voltage electrical networks. Its combination of high precision, safety, and durability makes it indispensable in modern power monitoring, automation, and energy efficiency applications.
