How Does A Digital Panel Meter Work?

Views: 0     Author: Site Editor     Publish Time: 2026-02-27      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

A digital panel meter (DPM) is an electronic instrument that displays electrical values such as voltage, current, resistance, or temperature as clear numerical readings, unlike the pointer movement of analog meters. It is widely used in control panels, power supplies, and industrial equipment for its high accuracy, readability, and stability. This explanation focuses on digital voltage meters, while also covering digital current meters.

current meter

At the core of every digital panel meter is an analog-to-digital converter (ADC). The ADC’s job is to convert continuous analog electrical signals into discrete digital values that a microcontroller or processor can interpret. For a voltage meter, the input is a potential difference between two points; for a current meter, it is the flow of charge through a circuit.

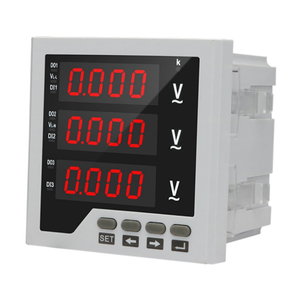

voltage meter


A digital voltage meter measures the potential difference across a component or circuit. It uses a high-impedance input circuit to draw almost no current, ensuring it does not affect the circuit being tested. The input voltage is first conditioned using resistive dividers to bring it within the safe range of the ADC. The ADC then samples this voltage at high speed, comparing it to an internal precision reference voltage. Once converted into digital code, the microcontroller processes the data and drives the digital display—usually an LCD or LED screen—to show the measured voltage in volts or millivolts.


A digital current meter operates differently. Since direct current measurement requires the meter to be in series with the load, it uses a low-value precision resistor called a shunt resistor placed in the current path. As current flows through the shunt, a small voltage drop develops across it, following Ohm’s Law (V = I × R). This small voltage is then fed into the same ADC used in the voltage meter. The microcontroller calculates the current from the measured voltage drop and displays the result in amps or milliamps.


Many digital panel meters are multifunctional, capable of measuring both voltage and current by switching between measurement modes. They often include extra features such as overload protection, decimal point adjustment, and programmable scaling for special applications.


Compared to analog meters, digital panel meters offer higher precision, faster response, and better immunity to shock and vibration. They do not suffer from parallax error, meaning the reading is accurate regardless of viewing angle. Modern digital meters may also include communication interfaces to send data to computers or PLCs for remote monitoring.


In summary, a digital panel meter uses signal conditioning, an analog-to-digital converter, and a microcontroller to translate electrical quantities into numerical values. The voltage meter measures potential difference directly through high-impedance input and resistive division, while the current meter uses a shunt resistor to convert current into a measurable voltage. Together, they provide reliable, accurate, and easy-to-read measurements for countless electrical and industrial applications.
