A current transformer meter is an electrical measuring device that combines a current transformer with a monitoring meter to measure, display, and monitor electrical current in power systems. It is widely used in industrial equipment, commercial buildings, power distribution cabinets, renewable energy systems, and electrical testing applications. The device allows users to safely measure high alternating current without directly connecting the measuring instrument to the main power conductor.
The basic working principle of a current transformer meter is based on electromagnetic induction. A current transformer reduces a high primary current into a smaller and standardized secondary current, commonly 5A or 1A, which can then be safely measured by the connected meter. For example, if a system carries 500A current, the current transformer may convert it into 5A for the meter. This process protects monitoring equipment and improves measurement safety and accuracy.
A current transformer meter normally consists of three main parts: the current transformer, the display meter, and the signal processing circuit. The current transformer detects the electrical current flowing through a conductor. The meter receives the transformed signal and displays the measured value in real time. Modern digital meters may also include communication interfaces such as RS485, Modbus, or Ethernet for remote monitoring and automation systems.
One of the major advantages of a current transformer meter is electrical isolation. Since the measuring circuit is separated from the high voltage conductor, operators and monitoring equipment remain protected from dangerous voltages. This makes the device suitable for medium and high current applications in industrial environments.
Accuracy is another important feature. Many current transformer meters provide stable and precise measurements for energy management, motor control, and power monitoring. Different accuracy classes are available depending on the application requirements. High accuracy meters are commonly used in power metering and energy analysis systems, while standard models are sufficient for general monitoring applications.

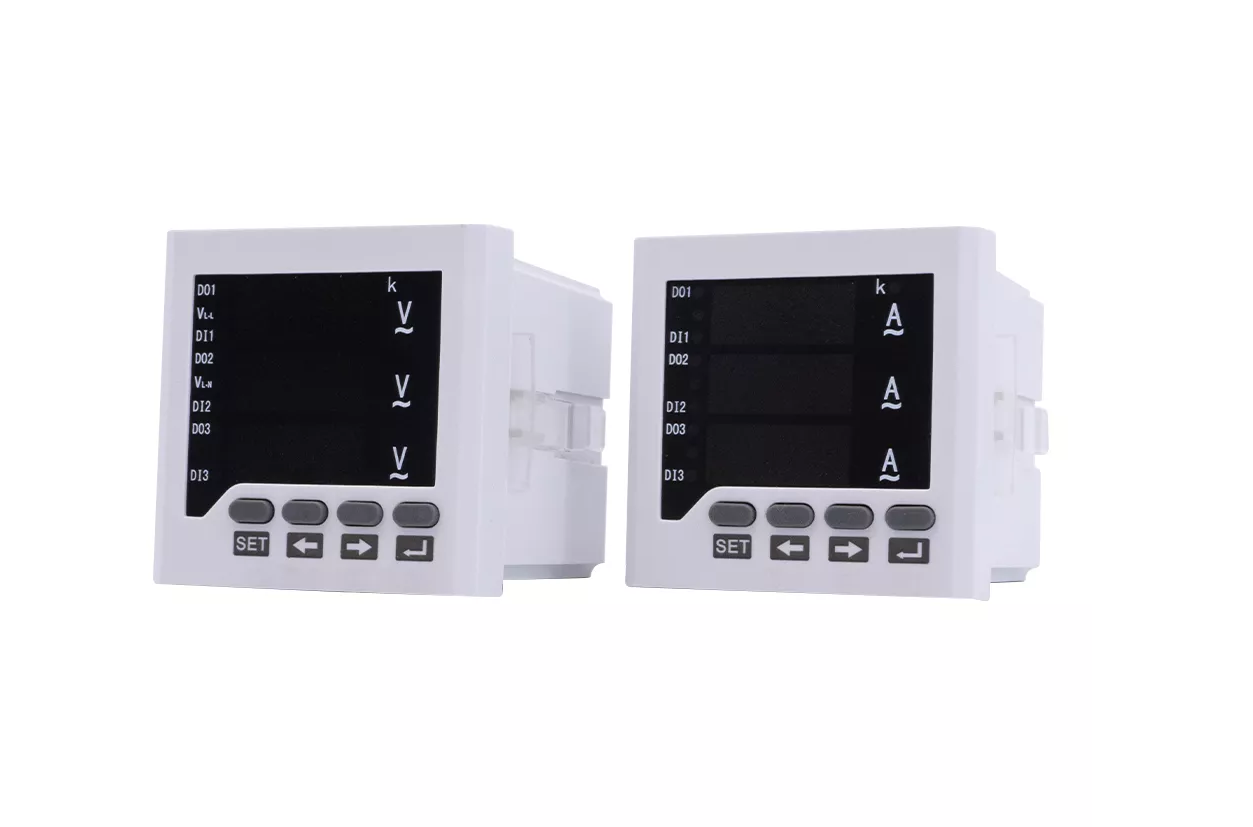

Current transformer meters are available in analog and digital types. Analog meters use a traditional pointer display and are often used in simple electrical panels. Digital current transformer meters provide clearer readings, programmable settings, alarm functions, and data communication capabilities. Some advanced models can measure additional electrical parameters such as voltage, power factor, frequency, active power, and energy consumption.
These meters are widely applied in industrial automation systems, switchgear cabinets, solar power systems, generator monitoring, electric vehicle charging stations, and smart grid applications. In manufacturing plants, they help monitor motor load conditions and prevent equipment overload. In commercial buildings, they support energy efficiency management by tracking power consumption. In renewable energy systems, they provide real time current monitoring for solar inverters and battery systems.
Manufacturers in China, including Hubei Tianrui Electronic Co., Ltd., produce various types of current transformer meters for global markets. Chinese manufacturers are known for offering cost effective products with stable performance, compact designs, and customized solutions for industrial customers. Many products comply with international standards such as CE, RoHS, and IEC requirements.
As modern electrical systems continue to develop toward automation and intelligent energy management, current transformer meters play an increasingly important role in ensuring safe operation, accurate measurement, and efficient power monitoring across different industries.
