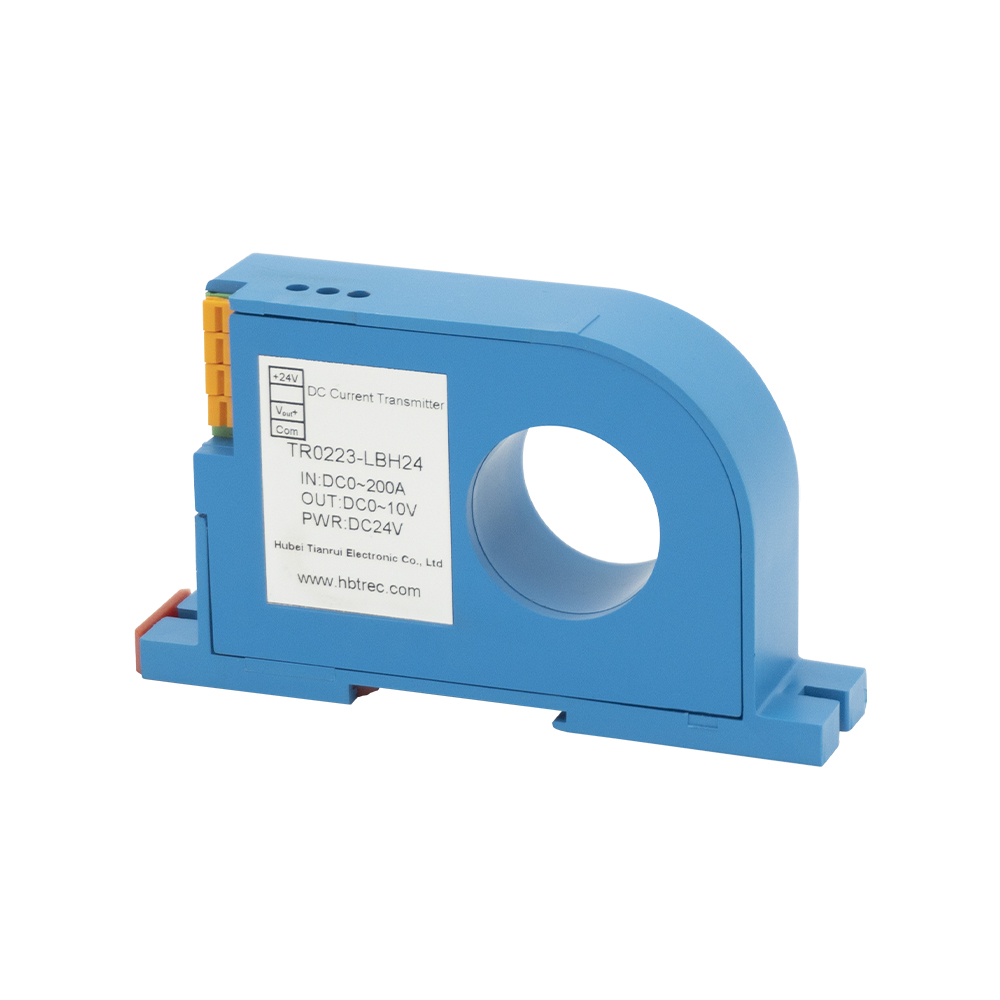

TR0223-LBH24
TR
Product Overview
A Current Transducer converts AC or DC current into a proportional electrical signal such as 0–5V, 0–10V, or 4–20mA. It provides accurate, isolated measurement to ensure system safety and stability. Using Hall Effect or Current Transformer technology, it offers fast response and high precision. Widely used in power systems, industrial control, energy monitoring, and automation, the current transducer enables real-time current measurement, fault detection, and efficient system performance management.
Products Features
* High-performance DC current sensing.
* Cost-effective and energy-efficient design.
* Compact and easy-to-install solution.
* Reliable isolation and fast response.
Applications
* Power grid monitoring and maintenance.
* Petrochemical process control systems.
* Steel production line current detection.
* Industrial equipment energy efficiency analysis.
Download Size Sheet
Mechanical Dimension(mm)
Circuit Connection Diagram
Technical Data
@TA=25℃,unless otherwise stated
Type | TR0223-LBH24 | |
IPN | Primary Rated Input Current | DC 200A |
IP | Primary Current Measure Range | DC 0~240A |
VSN | Secondary Rated Output Voltage | DC 10V |
UC | The Power Supply Voltage | DC 24V |
RL | Load Capacity | RL≥ 10kΩ |
εL | Linearity | 0.1% |
X | Accuracy | ±0.5% |
BW | Frequency Bandwith | DC~20kHz |
di/dt Accurately Followed | >50A/μs | |
IC | Current Consumption | ≤25mA |
Ud | Power Frequency Withstand Voltage | 2.5kV AC/1min |
tr | Response Time | <200ms |
V0 | Offset Voltage | ≤50mV |
Temperature Drift | ≤500ppm/℃ | |
TA | Ambient Operating Temperature | -10℃~+70℃ |
TS | Ambient Storage Temperature | -25℃~+85℃ |
