Views: 0 Author: Site Editor Publish Time: 2025-12-11 Origin: Site

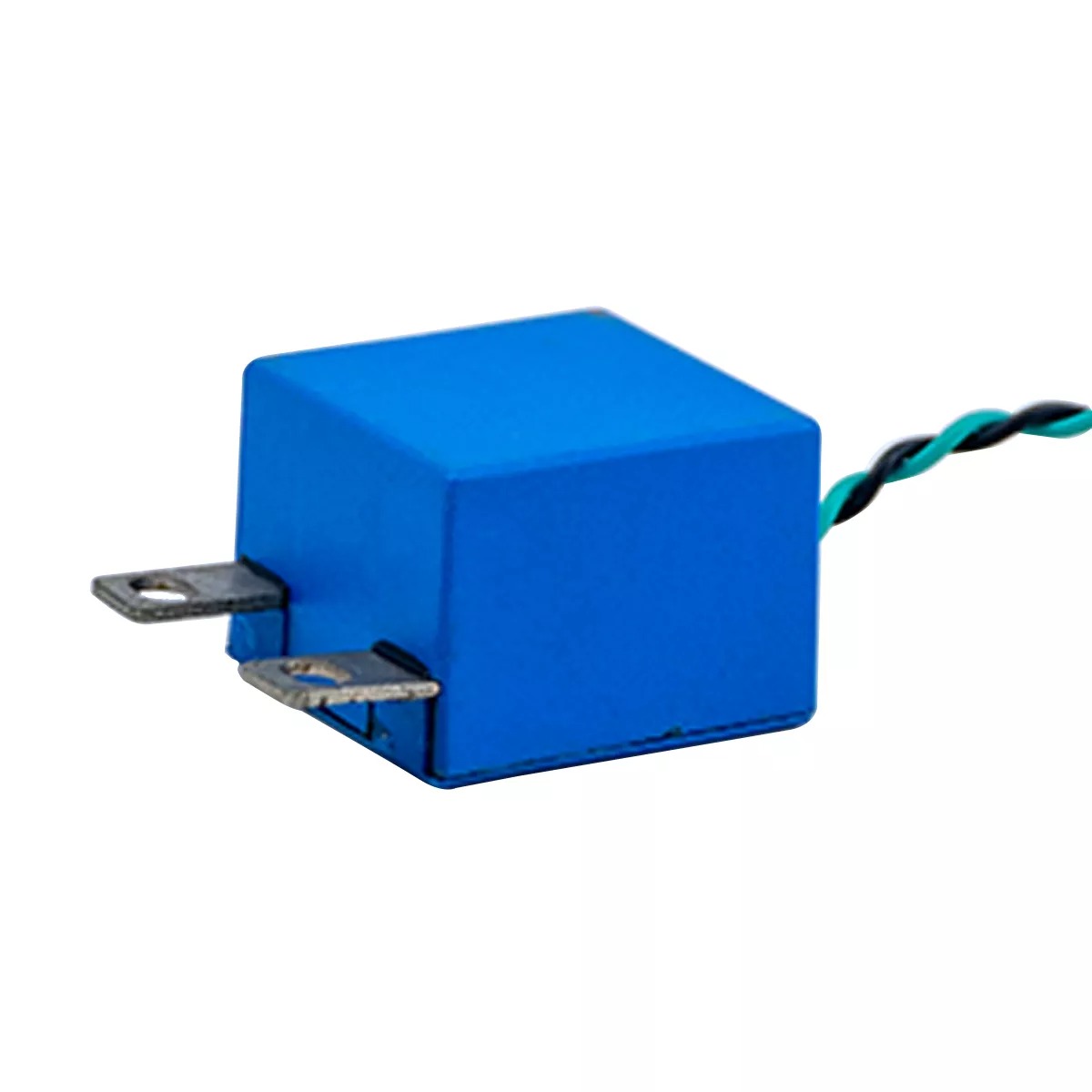

In industrial environments, precise energy monitoring is crucial for optimal performance. Without the right tools, measuring high currents safely can become challenging. Miniature Current Transformers (Miniature CTs) are designed to meet these needs. They help manufacturers monitor energy usage accurately and protect equipment from damage.
In this guide, you'll learn how to select the best Miniature CT for your system. We'll cover key considerations such as accuracy, load handling, and environmental factors.
Selecting the right Miniature CT begins with understanding the electrical demands of your system. The transformer needs to be able to accommodate expected current fluctuations without risking damage. For example, if your equipment routinely experiences surges, choosing a CT with a higher current rating ensures its ability to handle those spikes without issue.
Matching Current Ratings to Manufacturing Demands: The CT you choose must be capable of handling both steady-state operation and transient peaks. Proper selection of the current rating prevents overloading, which could lead to inaccurate readings or, worse, damage to your monitoring equipment. This can disrupt your operations and lead to costly repairs or replacements.
Importance of Transformation Ratio: The transformation ratio (e.g., 100:5) defines the level of current reduction for measurement. A carefully selected ratio ensures that measurements remain within the operational limits of your equipment, promoting safety and preventing overload.
Ensuring your CT is matched to the system's maximum operating current range minimizes the risk of overloading and measurement errors, keeping your electrical infrastructure safe and efficient.
Accuracy plays a central role in energy management, especially in industrial settings where precise data can lead to significant cost savings and improved energy efficiency. Manufacturers depend on accurate readings to optimize energy consumption, allocate costs, and enhance system performance.
Accurate current measurements are necessary to achieve operational efficiency, particularly in large-scale industrial systems. Inaccurate readings could lead to inefficiencies and waste, which can negatively impact your bottom line. Selecting a CT with the correct accuracy class ensures that the readings you collect are precise and reliable, which is crucial for operational decision-making and compliance.
Miniature CTs come in various accuracy classes, such as 0.5 or 1.0, where lower numbers denote higher precision. For applications where exact measurements are essential—such as energy billing or system diagnostics—opting for a higher accuracy class ensures that you are getting the best possible data.
For energy metering or systems where precision is a priority, higher accuracy classes (like 0.5) should be selected. This ensures that your data supports critical decision-making, allowing you to manage energy consumption effectively and reduce operational costs.
Toroidal CTs are highly efficient and compact, making them ideal for applications where space is limited. These CTs are well-suited for both residential and industrial systems that require accurate measurements but have limited installation space.
The compact nature of Toroidal CTs allows them to fit in smaller spaces while providing the same level of performance as larger models. Their cost-effectiveness and ease of integration make them a great choice for energy management in residential or commercial applications. Toroidal CTs are particularly advantageous in systems that need precise measurements but have restrictions on space.
By opting for a Toroidal CT, you ensure that your system remains efficient while minimizing costs, all without compromising on performance.
Split-Core CTs are highly versatile and offer easy retrofitting capabilities. They are designed to be clamped around existing conductors without the need to disconnect power, making them perfect for upgrades or expansion projects where downtime is not an option.
Split-Core CTs are especially useful in systems that need to be upgraded without shutting down. They can be easily installed in live electrical circuits, making them ideal for retrofitting older systems or adding current measurement capabilities to new installations. This feature ensures that the manufacturing process remains uninterrupted, and the system monitoring capabilities are expanded without needing significant downtime.
For system upgrades, Split-Core CTs are the go-to solution for manufacturers who need quick installation without disrupting their operations.
Bar-type CTs are designed to measure high currents in large-scale operations. These CTs are ideal for use in power plants or large industrial facilities where high current levels are common.
Bar-type CTs are robust and durable, capable of handling extreme current loads without issue. Their primary use is in environments where continuous high current measurement is necessary, such as in power generation facilities or industrial applications. While they are more bulky and expensive than other types, their ability to handle high current levels reliably makes them indispensable in heavy industry.
For heavy-duty industrial applications where very high currents are expected, Bar-type CTs provide the necessary robustness and accuracy to ensure reliable performance.
| Type | Key Features | Applications | Pros | Cons |
|---|---|---|---|---|
| Wound CTs | High accuracy, larger size | Heavy-duty industrial metering, control systems | Precision, reliable for high-load systems | Bulky, stationary installation required |
| Toroidal CTs | Compact, cost-effective | Residential, small commercial systems | Space-saving, cost-effective, easy installation | Limited current range |
| Split-Core CTs | Can be clamped around live conductors | System upgrades, retrofitting | Easy to install in live circuits, flexible | Slightly less accurate compared to Wound CTs |
| Bar-Type CTs | Solid bar design for high currents | Power generation, heavy industrial applications | Durable, ideal for very high current loads | Bulkier, higher cost |
Accurate installation is crucial for ensuring the CT operates at its full potential. The primary and secondary windings must be connected correctly to guarantee accurate current measurement.
The CT should be installed following the polarity markings (P1/P2 for primary and S1/S2 for secondary). Proper wiring ensures that the CT delivers precise readings, allowing for effective monitoring of your energy consumption. Ensuring proper integration with existing electrical infrastructure is equally important. Careful planning and installation will guarantee that the CT works smoothly within the system, avoiding operational disruptions.
Safety should always be a top priority when installing CTs, especially when dealing with high-voltage systems. Manufacturers must follow proper installation procedures to avoid hazards such as electrical shocks or equipment damage.
Ensure that the secondary circuit is always connected before energizing the primary side of the CT. This prevents high-voltage risks that could harm personnel or damage equipment. Proper grounding and short-circuit protection are essential safety measures that will safeguard the system during installation and operation.
Regular monitoring and maintenance of Miniature CTs are essential for maintaining their long-term reliability and performance.
Setting up a routine for inspecting CTs and verifying the integrity of the connections will help avoid performance degradation. Common errors, such as poor connection or incorrect CT sizing, can lead to inaccurate readings. Performing routine checks and post-installation tests ensures that your CTs remain accurate and reliable over time.
Choosing the right Miniature Current Transformer (CT) is vital for accurate, efficient, and safe energy monitoring in manufacturing systems. By considering current ratings, accuracy, burden ratings, environmental conditions, and installation needs, manufacturers can make well-informed decisions to optimize system performance.
Understanding your specific requirements and consulting industry experts ensures the best selection for reliable electrical systems. A well-chosen Miniature CT tailored to your factory’s environment can improve the lifespan and efficiency of your equipment.
For high-quality solutions, Hubei Tianrui Electronics Co., Ltd. provides Miniature Current Transformers that enhance operational efficiency and system reliability. Their products offer durable, cost-effective solutions tailored to diverse manufacturing environments.
