Have you ever wondered how electrical systems can safely measure large currents without risking equipment? This is where Miniature Current Transformers (Miniature CTs) and Standard CTs come into play.
In this article, we will explore the key differences between these two types of current transformers. You'll learn how each one performs in various applications, helping you choose the right transformer for your needs.
A crrent transformer (CT) is an electrical device designed to measure the current flowing through a conductor by stepping it down to a safer, more manageable level. This process allows for safe monitoring, protection, and precise measurement of electrical currents, which is crucial for the stability and efficiency of electrical systems.
Current transformers function based on the principle of electromagnetic induction. When alternating current (AC) flows through the primary conductor, a magnetic field is generated around it. This field induces a proportional current in the secondary winding, which can be easily measured. The relationship between the primary current and secondary current is directly proportional.
Current transformers are classified into different types, with Miniature CTs and Standard CTs being the most widely used.

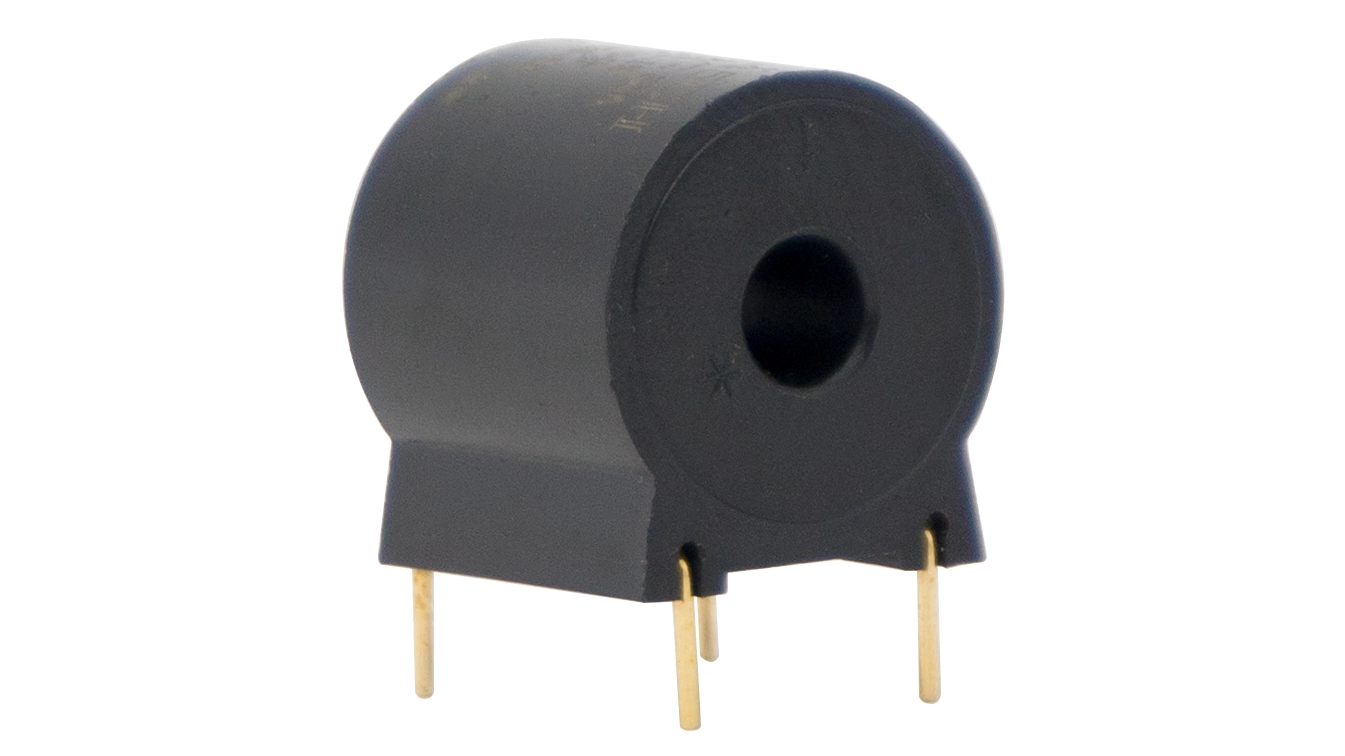

Miniature CTs are compact, lightweight, and designed for applications where space is limited. These transformers are ideal for devices like smart meters, IoT systems, and renewable energy installations.
Standard CTs, in contrast, are larger and built to handle much higher currents, making them more suitable for industrial applications and large-scale power systems.
The most obvious distinction between Miniature CTs and Standard CTs is their size. Miniature CTs are purposefully designed to be compact, typically measuring only 30x25x20mm. This compact size makes them ideal for installation in tight spaces within devices like portable energy monitors or smart home devices. Miniature Current Transformers can easily be integrated into products without occupying significant space, which is crucial in today’s technology-driven world.
On the other hand, Standard CTs are significantly larger, designed for industrial-scale applications. Their bulkier design makes them suitable for high-power systems, such as power grids, transformers, and motor protection systems, where space constraints are less of an issue.
Both Miniature CTs and Standard CTs provide accurate current measurements, but they are optimized for different applications. Miniature CTs are particularly adept at handling low-current measurements with high precision. This makes them ideal for applications such as smart meters and IoT devices, where accurate tracking of small electrical currents is essential.
Standard CTs, however, are better suited for industrial applications that require the monitoring of larger currents. These CTs are designed to measure higher power levels, making them an excellent choice for high-voltage systems or industrial machinerythat require precise control over significant electrical flows.
Miniature CTs are optimized for low power consumption, making them more energy-efficient in applications that need to run continuously with minimal energy use. This efficiency is crucial in applications like smart meters, home automation systems, and renewable energy systems, where devices must operate for long periods without draining excessive energy.
On the other hand, Standard CTs are designed to handle larger currents, and as a result, they generally consume more power. These CTs are used in high-demand environments such as industrial factories or power plants, where the need for high current handling outweighs concerns about energy consumption.
The installation process for Miniature CTs is simpler and more flexible, thanks to their small size and lightweight nature. These transformers are ideal for installation in modern smart devices, portable systems, and renewable energy products where space is at a premium. They are easy to integrate into tight spaces, making them the preferred choice for small-scale monitoring systems.
In contrast, Standard CTs require more complex installation procedures. Due to their larger size, these transformers are typically installed in industrial settings where space is less constrained, such as high-voltage substations or large machinery monitoring systems. Standard CTs are also more challenging to maintain and require skilled professionals to ensure their proper setup.
| Feature | Miniature CT | Standard CT |
|---|---|---|
| Size | Compact (typically 30x25x20mm) | Larger, bulkier design |
| Power Handling | Low power consumption | Handles higher currents |
| Precision | High precision for low currents | Suitable for high-power systems |
| Applications | IoT, smart meters, renewable energy | Industrial machinery, power grids |
| Installation | Easy installation in tight spaces | Requires more space for installation |
| Maintenance | Simple and flexible | Requires skilled professionals |
Miniature CTs are especially beneficial in applications where space is constrained but high precision is necessary. Key applications include:
Smart Energy Meters: Miniature CTs play a critical role in residential and commercial smart meters, offering precise energy measurements that allow users to monitor their electricity consumption accurately.
IoT Devices: These compact transformers are integral to IoT systems where real-time energy monitoring is essential, such as wearables and smart home devices.
Renewable Energy Systems: Miniature CTs are increasingly being used in solar panels and wind turbines to monitor and regulate energy flow, ensuring proper integration with the electric grid.
For larger systems that handle high-current levels, Standard CTs are indispensable. They are used in:
Power Grids: Standard CTs are integral to power transmission and distribution systems, ensuring that large electrical systems operate efficiently and safely. They allow for accurate monitoring and protection against overloads.
Motor Protection Systems: These CTs are used in industrial settings to monitor motors, preventing damage from overcurrent and overload situations.
Heavy-Duty Equipment: Standard CTs are also crucial for transformers, generators, and other large equipment, where they monitor the electrical flows and ensure that the equipment operates within safe parameters.
| Application | Miniature CT | Standard CT |
|---|---|---|
| Smart Energy Meters | Used for accurate energy measurement | N/A |
| IoT Devices | Integrated into IoT systems | N/A |
| Renewable Energy Systems | Monitors energy flow in solar, wind | N/A |
| Power Grids | N/A | Monitors electrical systems |
| Motor Protection Systems | N/A | Prevents overload in motors |
| Heavy-Duty Equipment | N/A | Used in transformers, generators |
Miniature CTs have a variety of advantages, particularly in space-constrained environments. Key benefits include:
Space-Saving Design: The small size of Miniature CTs makes them perfect for use in compact devices like smart meters, portable energy monitors, and wearable devices.
High Precision for Low Currents: These transformers are highly accurate when measuring small currents, making them essential for systems that need to track minimal electrical changes with high precision.
Enhanced Safety: Miniature CTs are designed with galvanic isolation, which protects sensitive systems from electrical interference and ensures safe operation in delicate devices.
While Miniature CTs offer several advantages, they do come with some limitations:
Limited Current Range: Miniature CTs are not suited for high-power applications that require monitoring of large currents.
Lower Frequency Response: These transformers may not handle rapid changes in current as effectively as Standard CTs, making them unsuitable for certain industrial applications where dynamic current measurements are critical.
Standard CTs remain the go-to choice for industrial and high-power applications. Some of the benefits include:
High Current Capacity: Standard CTs are capable of handling large currents, making them perfect for high-power systems like power plants and large machinery.
Reliable Performance: These transformers provide accurate measurements even in high-current scenarios, ensuring safe and efficient operation of large-scale systems.
However, Standard CTs have some challenges, especially in smaller systems:
Bulkier Design: Standard CTs are larger and require more space for installation, which can be a limitation in compact setups that prioritize space efficiency.
Higher Power Consumption: Standard CTs tend to consume more energy, which can be a drawback in applications where power efficiency is crucial.
| CT Type | Pros | Cons |
|---|---|---|
| Miniature CT | - Compact and space-saving | - Limited current handling capacity |
| - High precision for low currents | - Lower frequency response for rapid changes | |
| - Easy installation in tight spaces | ||
| Standard CT | - Handles higher current levels | - Larger size, requiring more installation space |
| - Reliable in industrial and high-power systems | - Higher power consumption | |
| - Excellent for large-scale monitoring systems | - Complex installation and maintenance |
Both Miniature CTs and Standard CTs offer valuable benefits based on the needs of the application. Miniature CTs are perfect for compact devices that require precision and energy efficiency. In contrast, Standard CTs are designed for larger-scale, high-current environments.
When choosing the right CT, consider factors like current range, installation space, and power needs. As technology evolves, Miniature CTs will continue to play a key role in smart grids, renewable energy systems, and other modern infrastructure.
At Hubei Tianrui Electronics Co., Ltd., we offer cutting-edge Miniature CTs that provide precise measurements with minimal energy consumption. Our products deliver exceptional value for a wide range of applications, from energy monitoring to industrial power systems.
