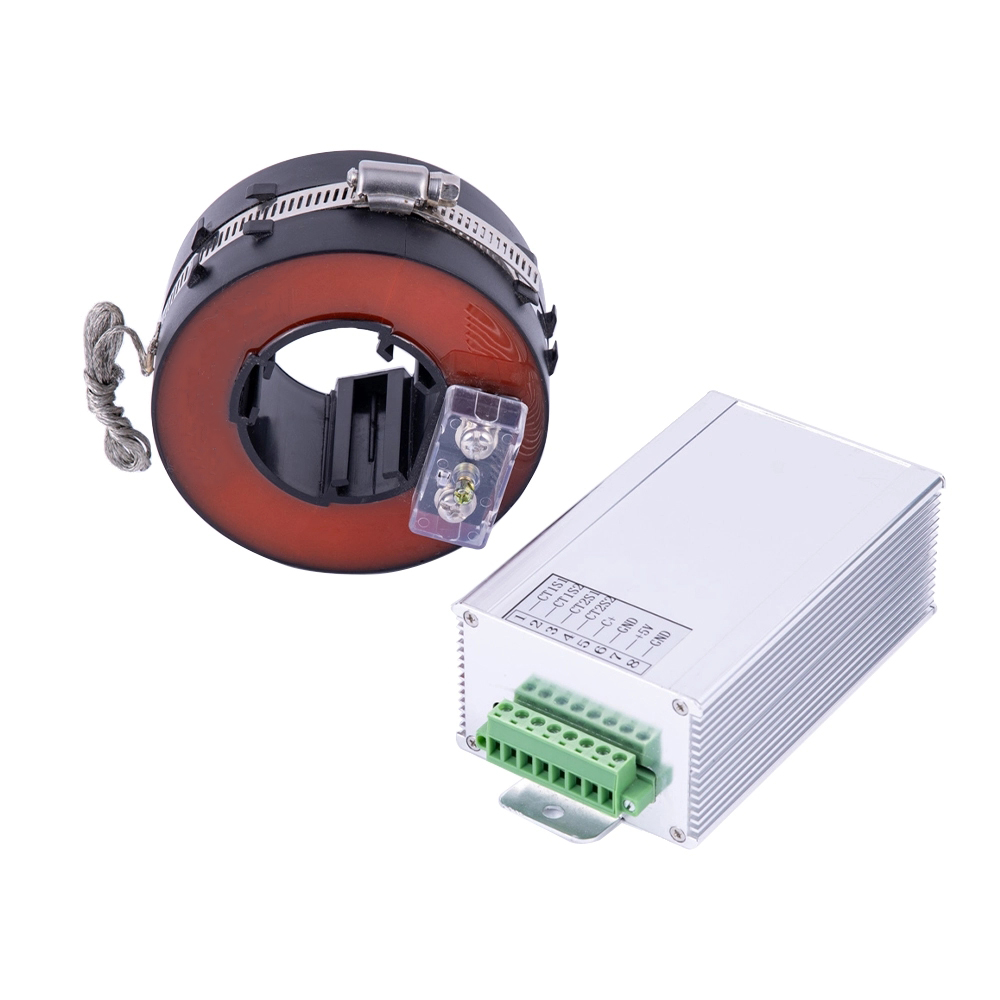

High-Voltage Transmission Line CT Power Harvesting Device

TRGK-type CT energy harvesting device for high-voltage transmission lines is a new type of induction energy harvesting device, which uses electromagnetic energy around induction high-voltage transmission lines to harvest electric energy.After rectification, filtering and voltage stabilization, a stable and reliable DC voltage is obtained.

Availability:



Inquire

Model:
TRGK
Brand:
TR

Product Parameters

Energy Harvesting CT Current Transformer
Electrical parameters	Working Voltage Level of Transmission	≤200kV	Power Frequency Withstand Voltage	Primary Side and Secondary Side AC 2.5kV 1min
	Working Range	AC 10~1000A	Anti-open Circuit Voltage	AC 90V
	CT Output Power	≤40W	Frequency Range	50Hz~400Hz
Mechanical parameters	Output Mode	Terminal or Copper Core Cable	Protection Level	IP66
Energy Harvesting Power Supply Module
Electrical parameters	Output Voltage Range	+5V~+24V DC	Power Range	5W~20W
	Accuracy	±2%	Load Adjustment Rate	±0.5%
	Temperature Drift	±0.03%/℃	Frequency Range	40Hz~60Hz

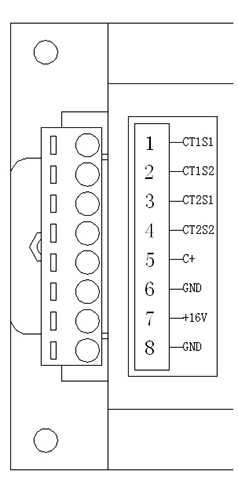

Socket Definition

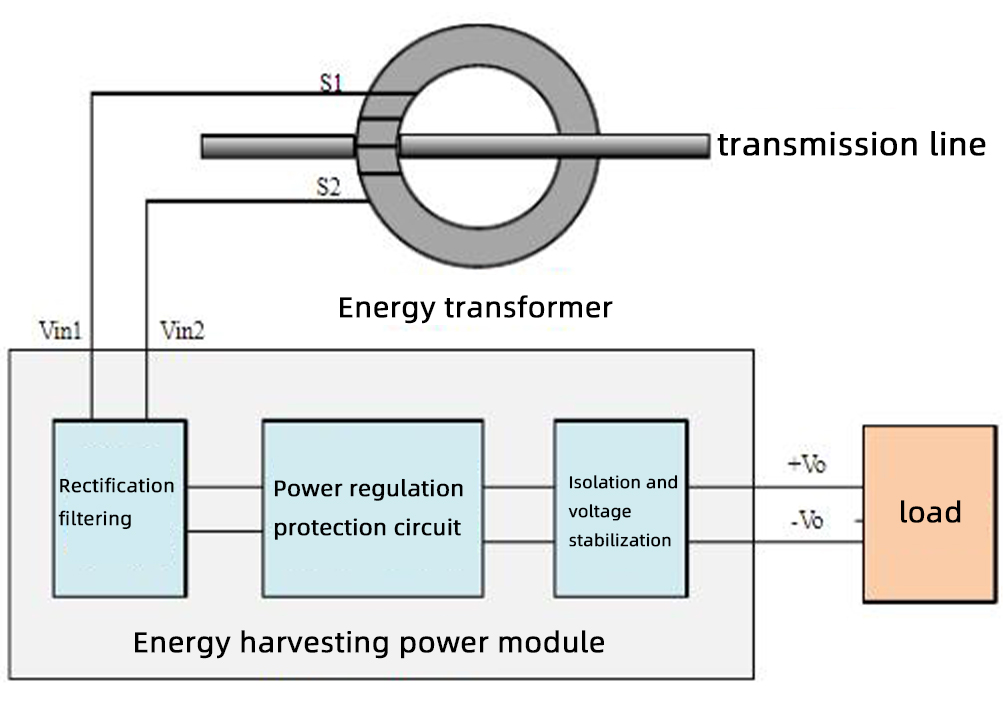

Working Principle Diagram

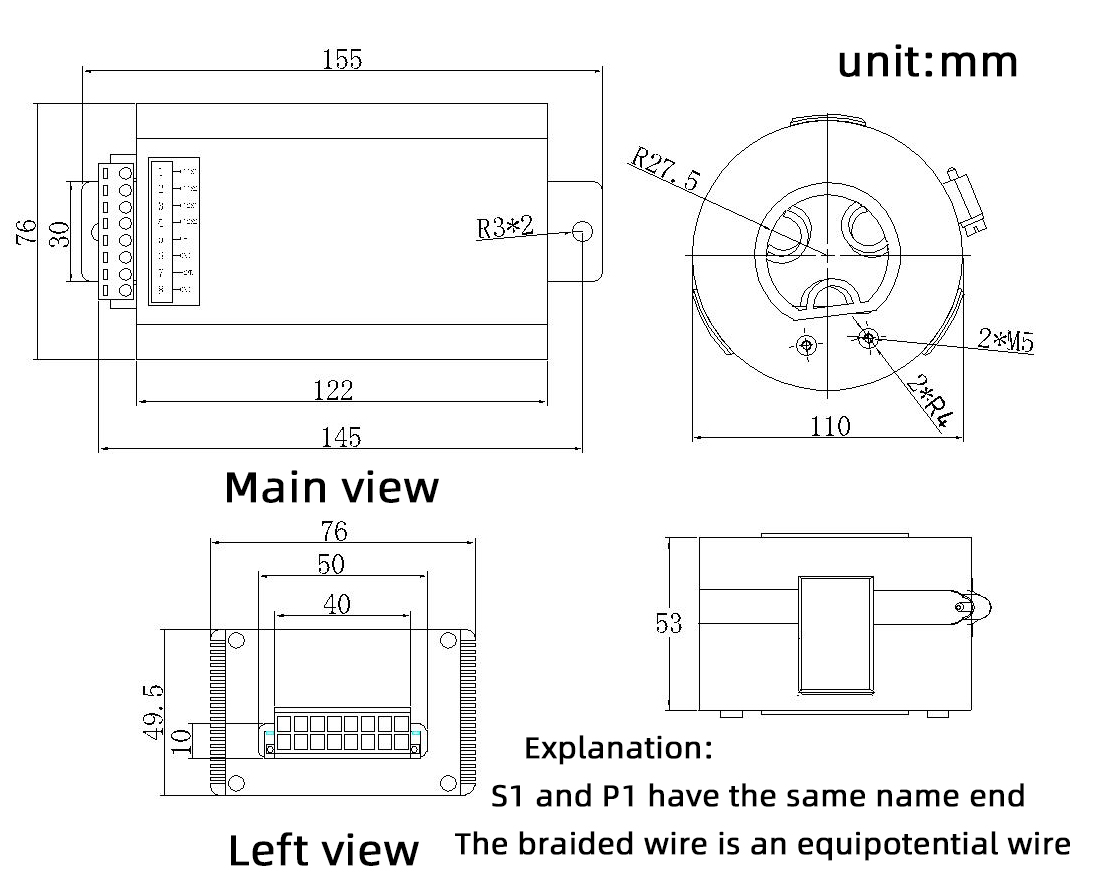

Installation Dimensions(mm)

Energy Harvesting Device
