Product Overview

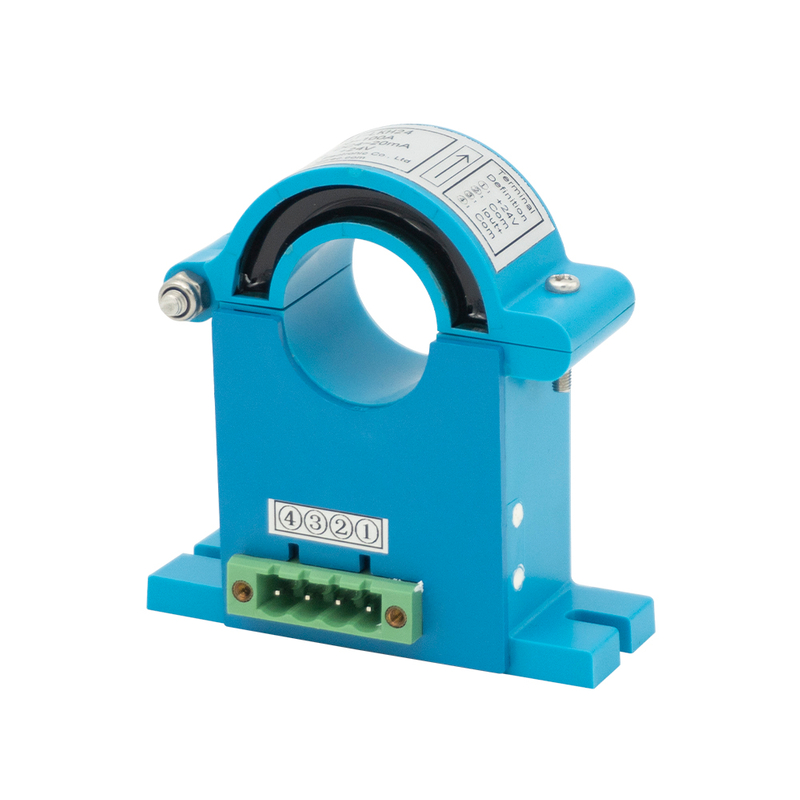

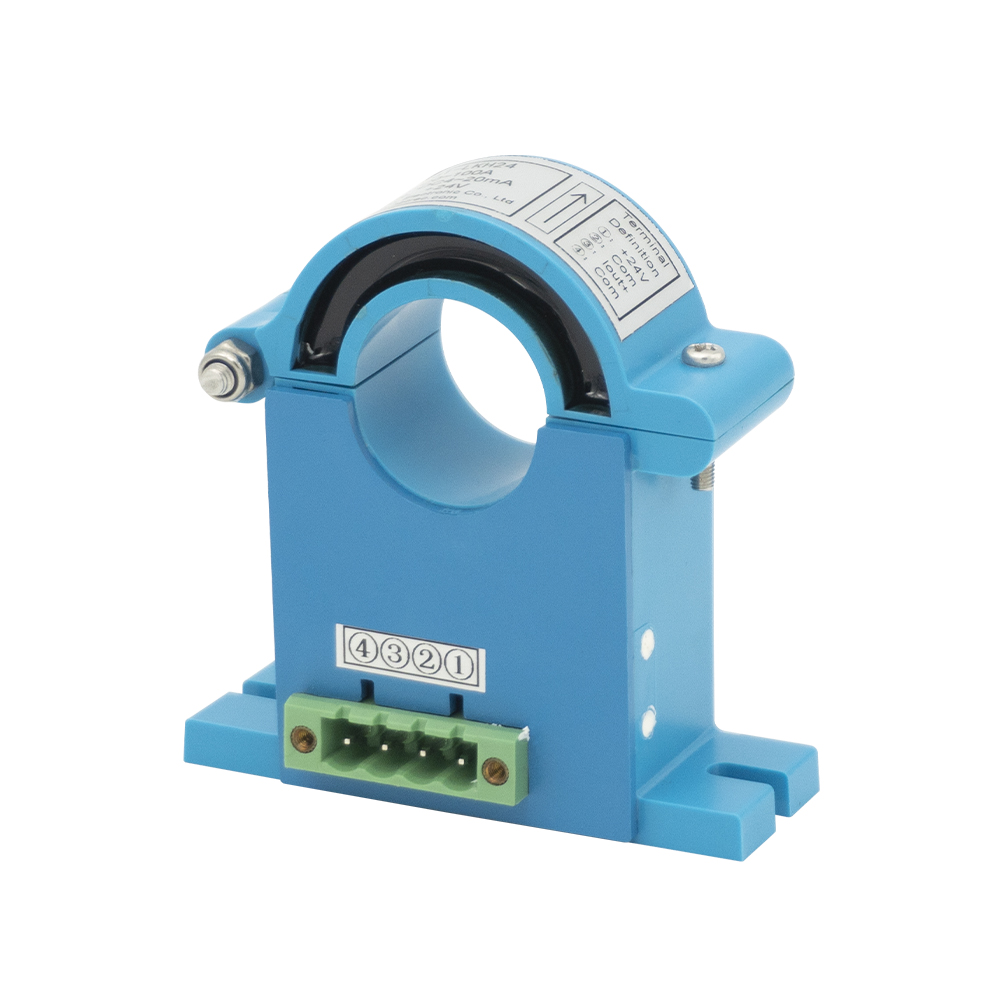

A Current Transducer is an electronic device used to convert an electrical current—either alternating current (AC) or direct current (DC)—into a proportional output signal, typically a standard analog signal such as 0–5V, 0–10V, or 4–20mA. This output can then be easily measured, transmitted, or processed by control systems, meters, or data acquisition devices.
Products Features
* Wide-range current measurement.
* Isolated voltage/current output.
* Industrial temperature endurance.
* Compact screw-mount design.
Product Application
* Generator and motor monitoring systems.
* Smart low-voltage distribution cabinets.
* HVAC and lighting load management.
* Industrial power monitoring solutions.
Download Size Sheet
Mechanical Dimension(mm)
Circuit Connection Diagram
Product Parameters
@TA=25℃,unless otherwise stated
Type | TR2261-LKH24 | |
IPN | Primary Rated Input Current | AC 100A |
IP | Primary Current Measure Range | AC 0~200A |
ISN | Secondary Rated Output Current | DC 4~20mA |
UC | The Power Supply Voltage | DC +24V |
RL | Load Capacity | RL ≤ 300Ω |
X | Accuracy | ±1% |
Zero Output Accuracy | ±0.5% | |
Overload Capacity | 2 times | |
Ud | Power Frequency Withstand Voltage | 3kV AC/1min |
tr | Response Time | <250ms |
I0 | Offset Current | ≤0.5%IS |
Temperature Drift | ≤200ppm/℃ | |
TA | Ambient Operating Temperature | -20℃~+80℃ |
TS | Ambient Storage Temperature | -25℃~+85℃ |
IS：Output current
