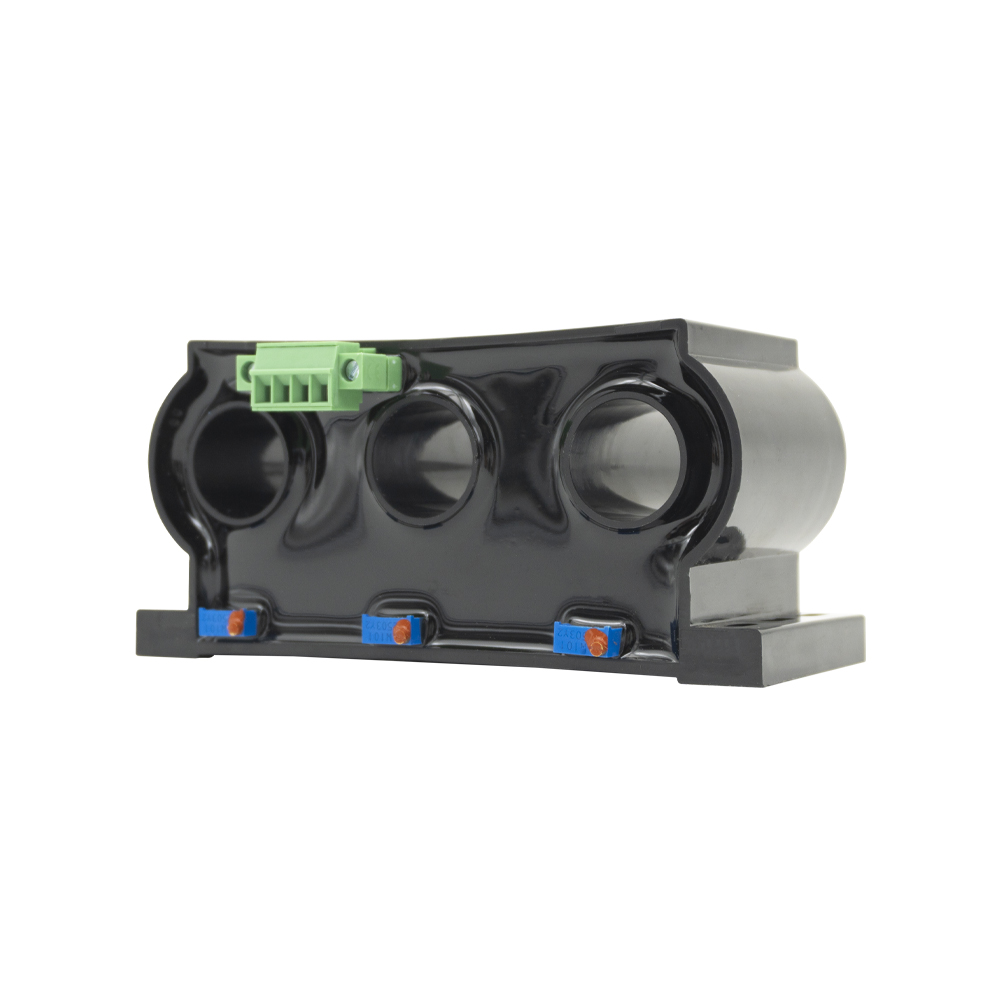

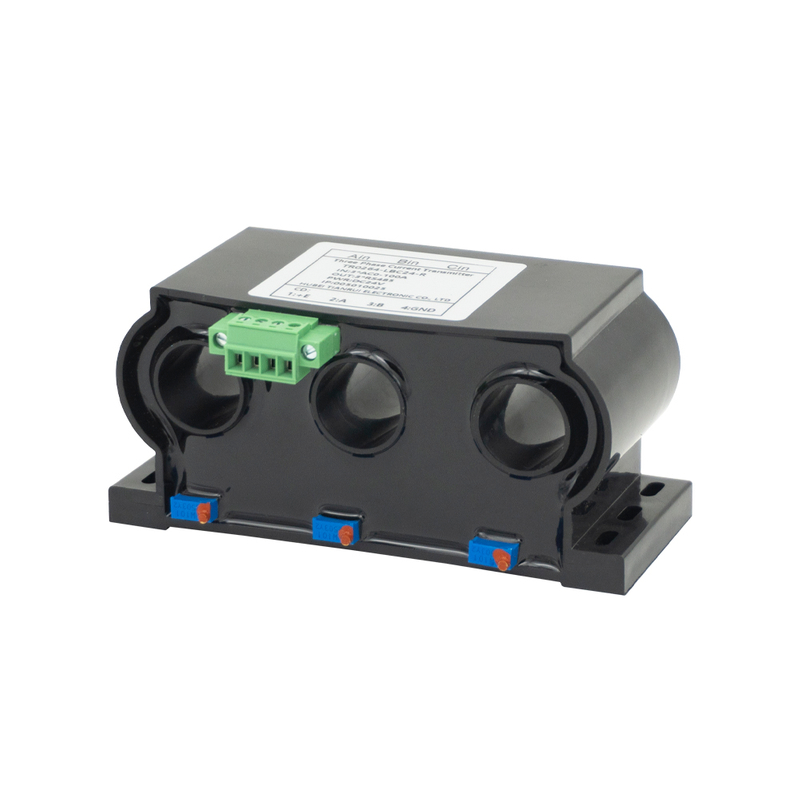

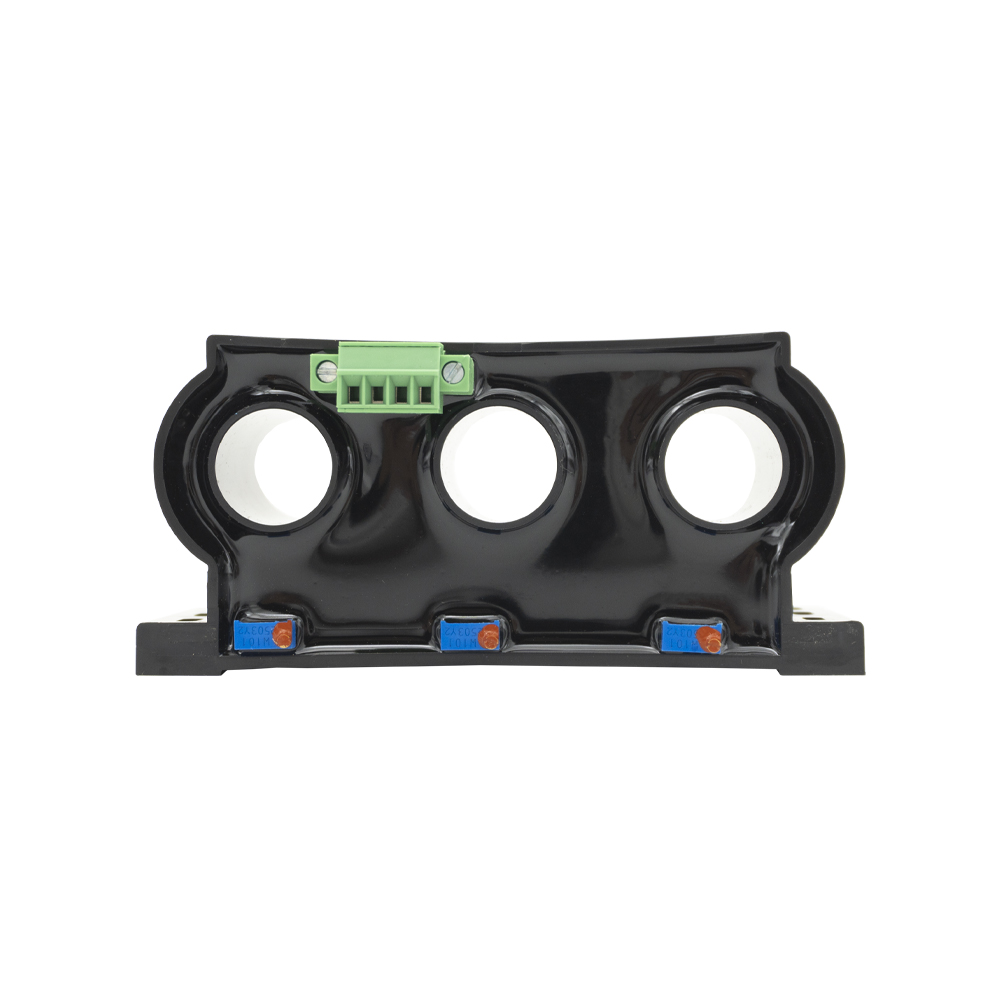

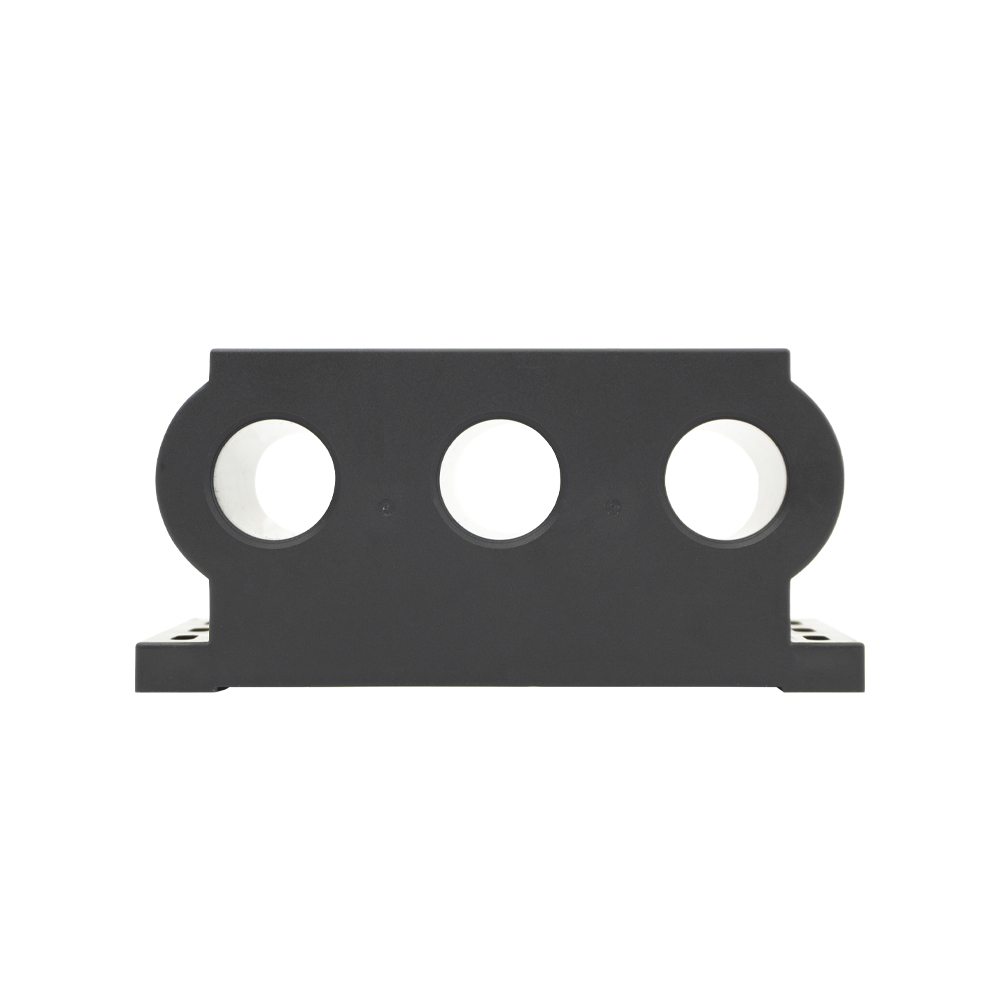

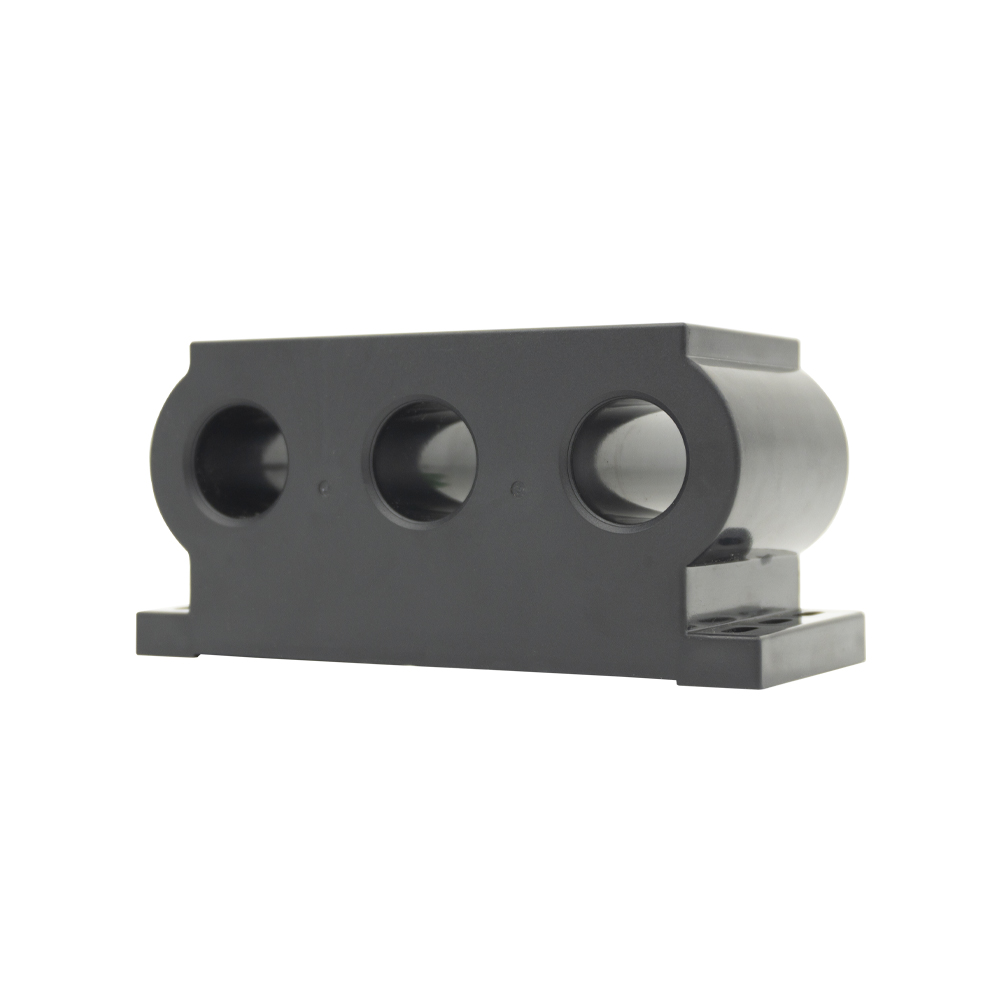

TR0264-LBC24-R
TR
Product Overview
A Current Transducer is a precision device used to measure electrical current and convert it into a standardized output signal for monitoring, control, and protection purposes. It provides accurate, stable, and real-time current readings, ensuring safe and efficient operation of electrical systems. Featuring high accuracy, fast response, and strong electrical isolation, current transducers are suitable for both AC and DC applications. They are widely used in industrial automation, power distribution, renewable energy systems, motor monitoring, and energy management. Current transducers integrate easily with PLCs, meters, and data acquisition systems for reliable electrical measurement and control.
Products Features
Suitable for both AC and DC measurement
Wide measurement range for versatile use
Compact and easy-to-install design
Compatible with PLCs, meters, and monitoring systems
Applications
Motor monitoring and protection
HVAC system current measurement
Energy management and smart metering
Electrical equipment testing and diagnostics
| Electrical Parameters | Primary Rated Input | 5A 10A 20A 50A 100A 200A 400A AC | Secondary Rated Output | 0-5V, 0-10V,4-20mA, 0-20mA, RS485 |
| Power Supply Voltage | 12V, 15V, 24V DC; 220V AC | Load Capacity | Voltage Output - 5mA Current Output - 6 V | |
| Accuracy | 0.2%, 0.5% | Linearity | 0.10% | |
| Frequency Bandwith | 20-5000Hz | Overload Capacity | 10× Rated Input | |
| Current Consumption | < 15mA+IOUT | Power Frequency Withstand Voltage | 3kV AC/1min | |
| Temperature Drift | ≤ 100PPM/℃ | Response Time | Tracking output < 1ms DC transmission output < 250ms | |
| Offset Voltage | ≤10mV | Response Time | < 200ms | |
| Operating Environment | Ambient Operating Temperature | -20℃-+80℃ | Ambient Storage Temperature | -25℃-+85℃ |
Product Overview
A Current Transducer is a precision device used to measure electrical current and convert it into a standardized output signal for monitoring, control, and protection purposes. It provides accurate, stable, and real-time current readings, ensuring safe and efficient operation of electrical systems. Featuring high accuracy, fast response, and strong electrical isolation, current transducers are suitable for both AC and DC applications. They are widely used in industrial automation, power distribution, renewable energy systems, motor monitoring, and energy management. Current transducers integrate easily with PLCs, meters, and data acquisition systems for reliable electrical measurement and control.
Products Features
Suitable for both AC and DC measurement
Wide measurement range for versatile use
Compact and easy-to-install design
Compatible with PLCs, meters, and monitoring systems
Applications
Motor monitoring and protection
HVAC system current measurement
Energy management and smart metering
Electrical equipment testing and diagnostics
| Electrical Parameters | Primary Rated Input | 5A 10A 20A 50A 100A 200A 400A AC | Secondary Rated Output | 0-5V, 0-10V,4-20mA, 0-20mA, RS485 |
| Power Supply Voltage | 12V, 15V, 24V DC; 220V AC | Load Capacity | Voltage Output - 5mA Current Output - 6 V | |
| Accuracy | 0.2%, 0.5% | Linearity | 0.10% | |
| Frequency Bandwith | 20-5000Hz | Overload Capacity | 10× Rated Input | |
| Current Consumption | < 15mA+IOUT | Power Frequency Withstand Voltage | 3kV AC/1min | |
| Temperature Drift | ≤ 100PPM/℃ | Response Time | Tracking output < 1ms DC transmission output < 250ms | |
| Offset Voltage | ≤10mV | Response Time | < 200ms | |
| Operating Environment | Ambient Operating Temperature | -20℃-+80℃ | Ambient Storage Temperature | -25℃-+85℃ |
