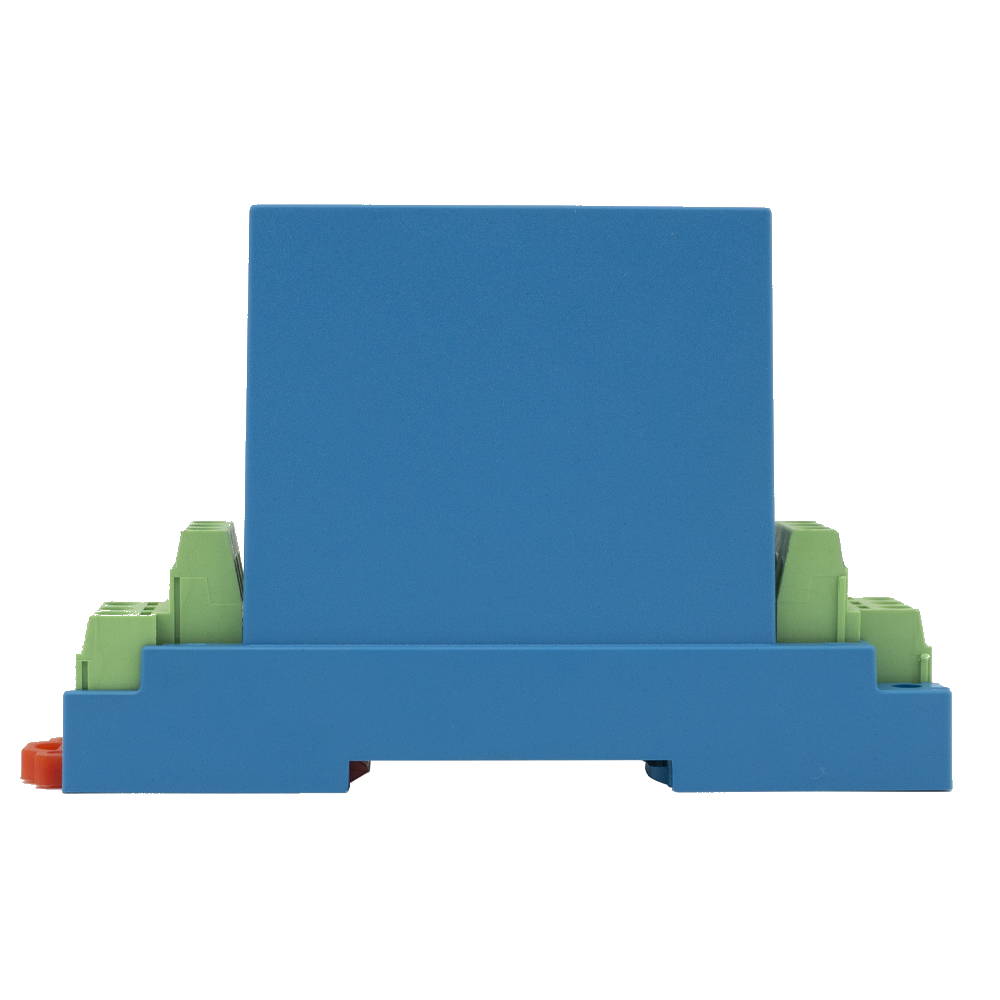

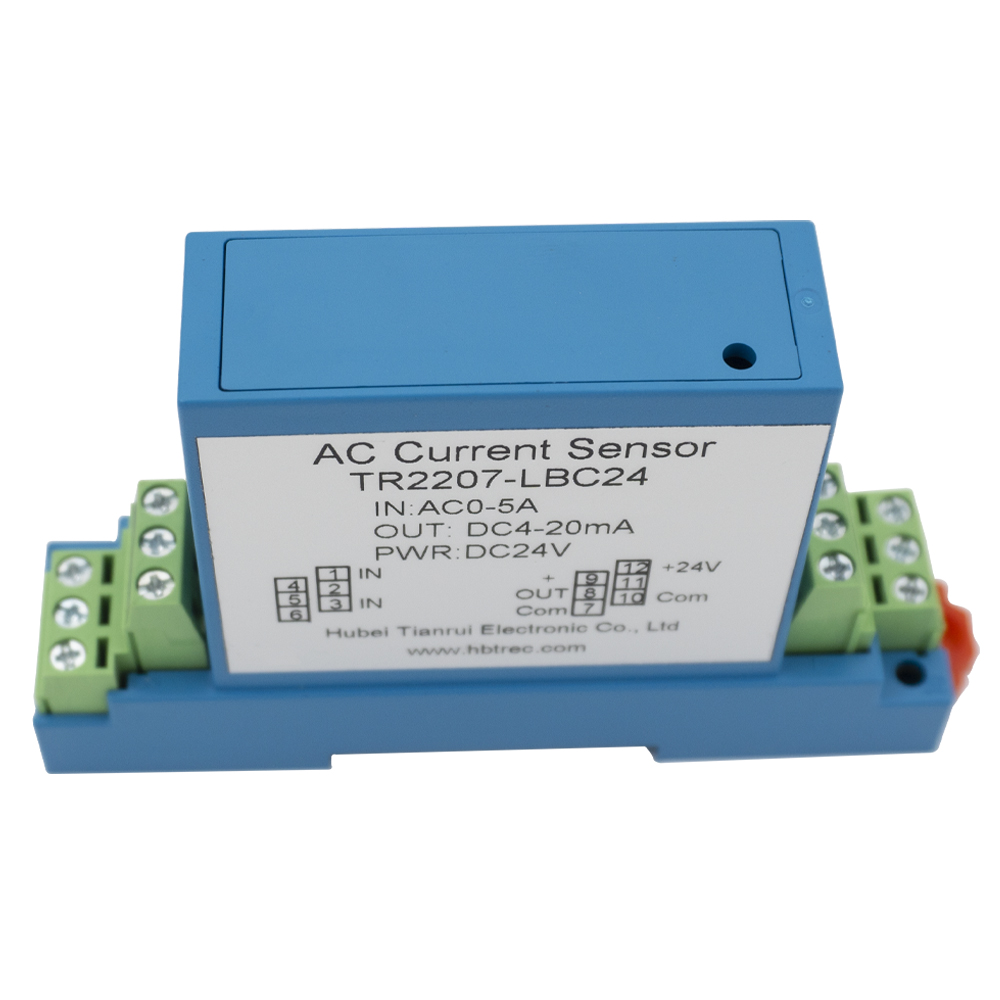

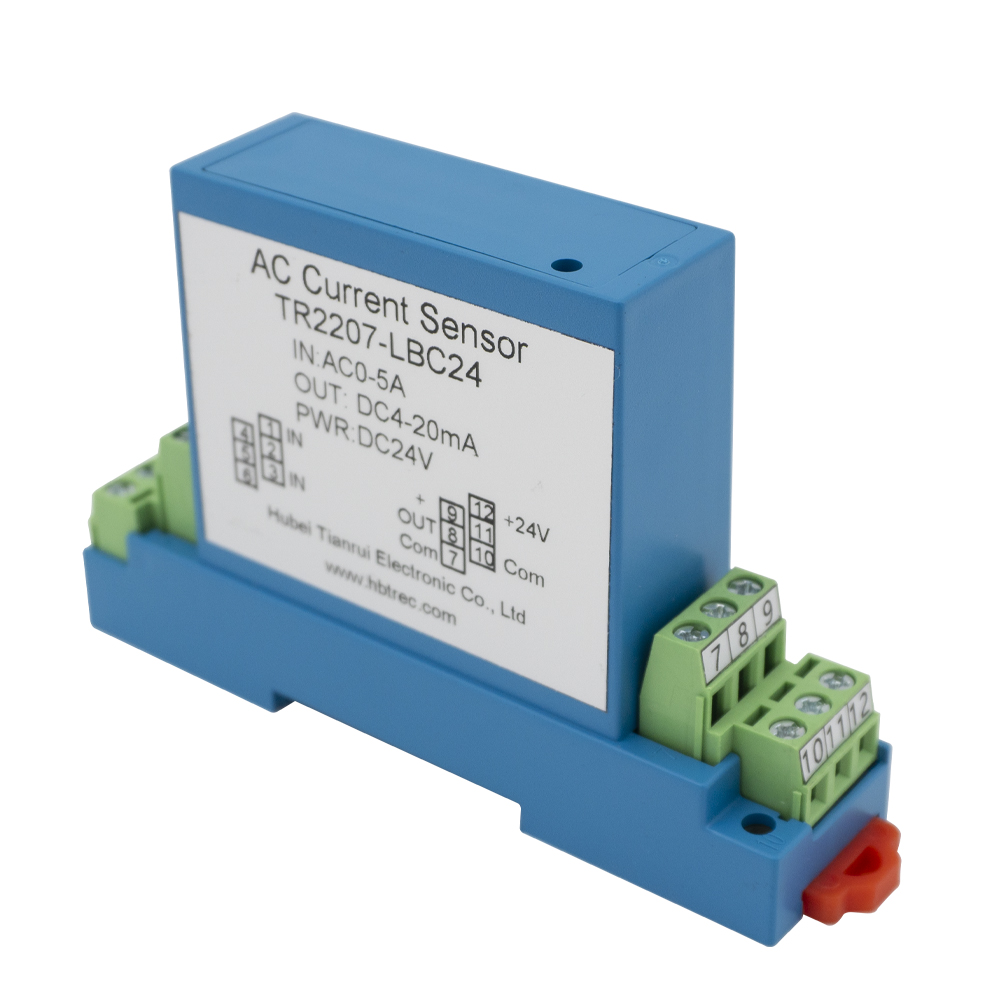

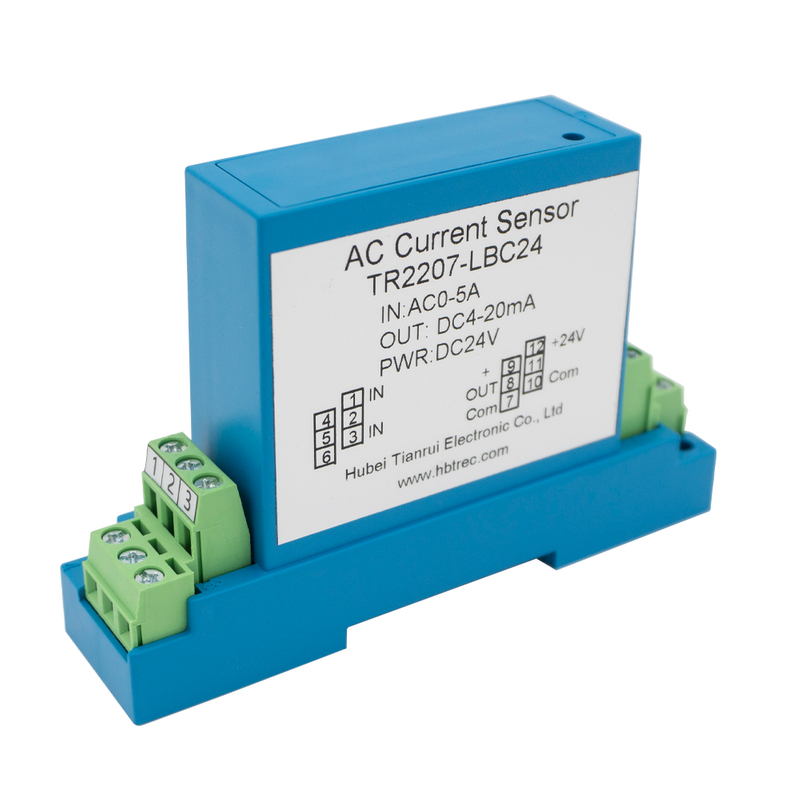

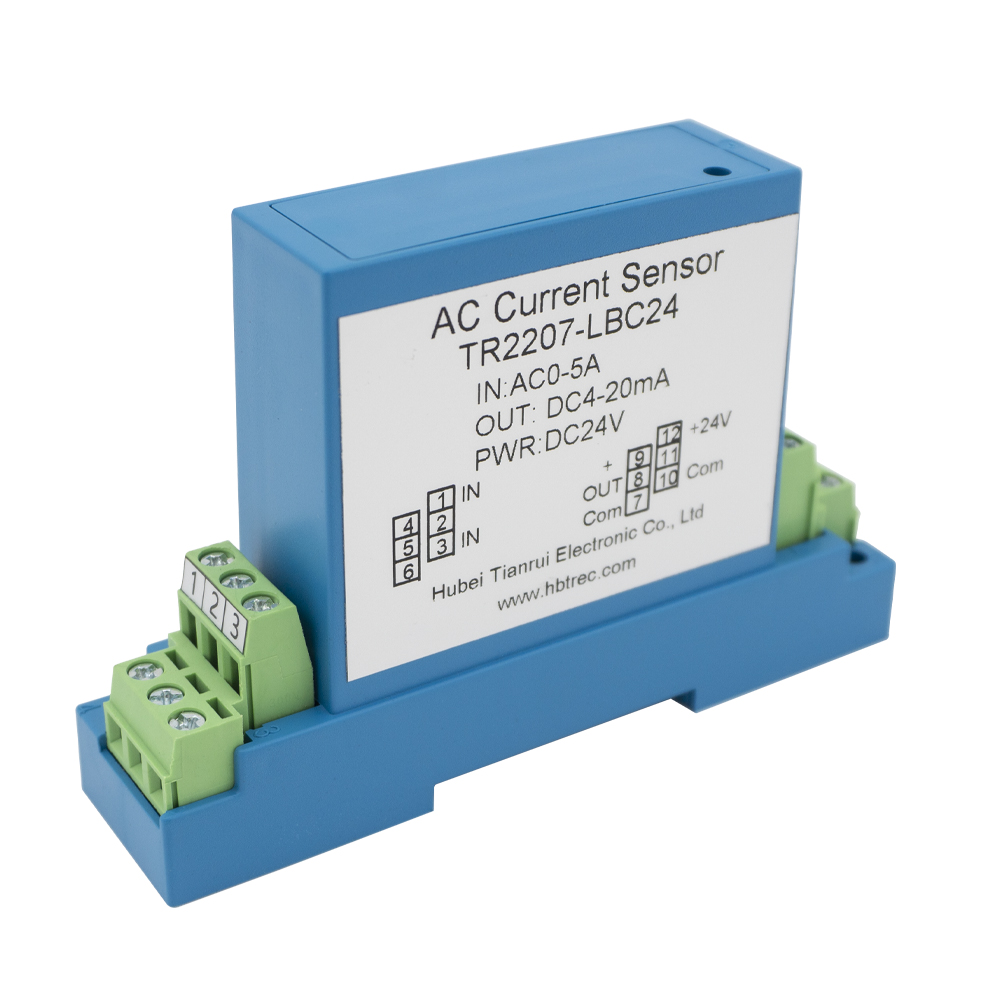

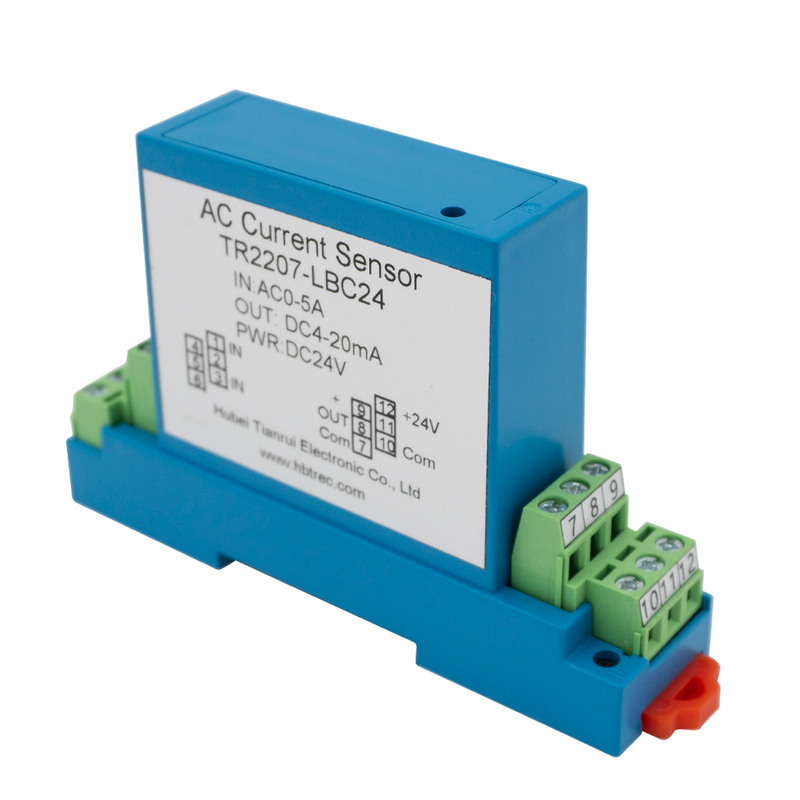

TR2207-LBC24 AC Current Sensor AC 0~5A/DC 4~20mA

This Sensor performs ‌isolated measurement and conversion‌ of field parameters such as ‌high-voltage/high-current, power, frequency, phase angle, and electroplating levels‌. Its output signals can ‌connect directly‌ to traditional ‌analog pointer instruments‌, as well as modern ‌digital automation instruments‌, various ‌A/D converters‌, and ‌computer systems‌. This enables the establishment of a ‌highly reliable industrial monitoring and control system‌.
Availability:
Inquire Add to Basket

  • TR2207-LBC24

  • TR

Products Features

Excellent accuracy, good linearity

High immunity to interference, excellent CMRR

Low drift, low power, wide bandwidth

High isolation between primary and secondary

Applications

Automatic Control

Measuring Meter

Railway Monitoring System

Station Control System

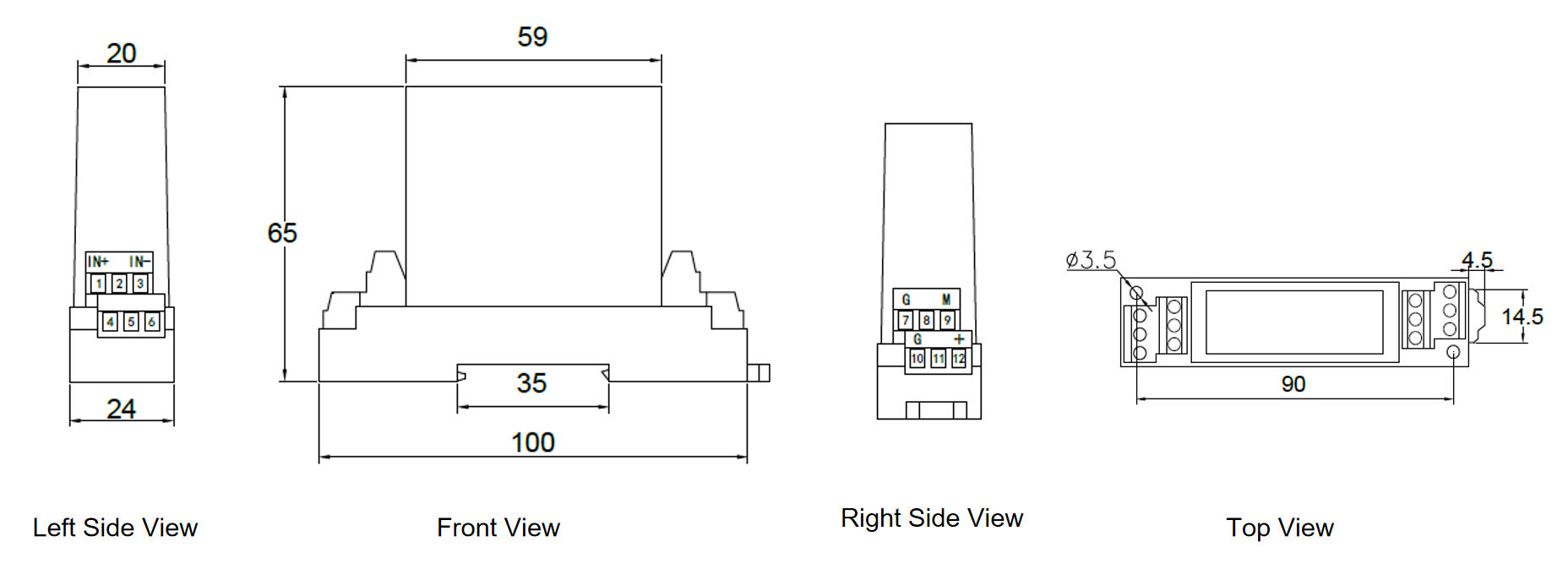

Mechanical Dimension(mm)

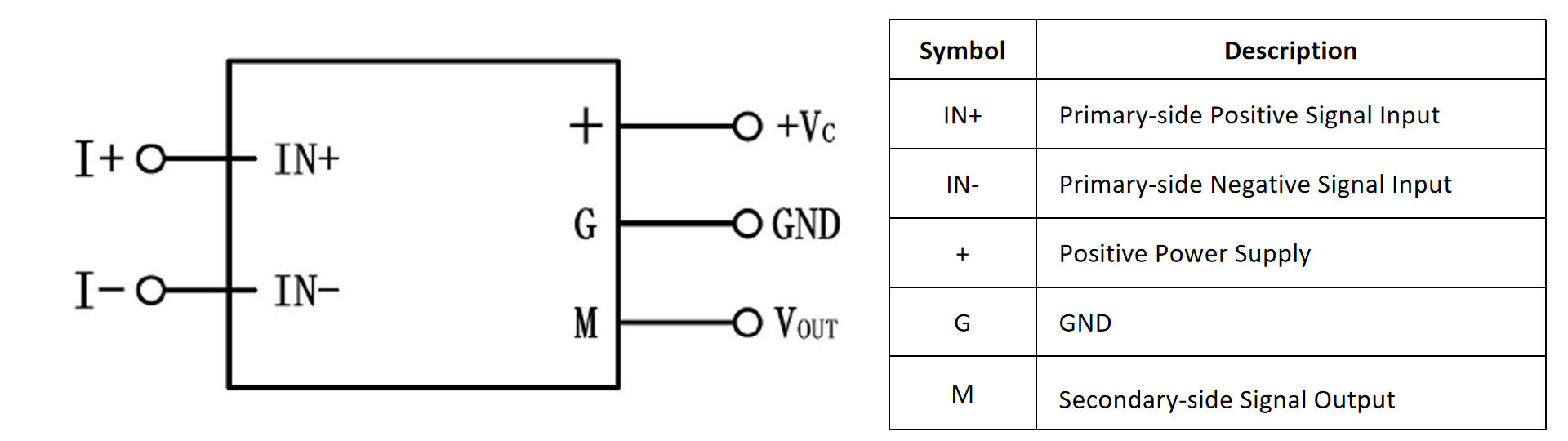

Circuit Connection Diagram

Technical Data

@TA=25℃,unless otherwise stated

Type

TR2207-LBC24

IPN

Primary Rated Input Current

AC 5A

IP

Primary Current Measure Range

AC 0~6A

ISN

Secondary Rated Output Current

DC 4~20mA

UC

The Power Supply Voltage

DC 24V

RL

Load Capacity

RL ≤ 500Ω

εL

Linearity

0.1%

X

Accuracy

±0.5%

BW

Frequency Bandwith

40 ~ 5kHz

Overload Capacity

10 times

IC

Current Consumption

<15mA+IS

Ud

Power Frequency Withstand Voltage

2.5kV AC/1min

tr

Response Time

<200ms

V0

Offset Voltage

≤50mV

Temperature Drift

≤500ppm/℃

TA

Ambient Operating Temperature

-10℃~+70℃

TS

Ambient Storage Temperature

-25℃~+85℃

IS：output current
