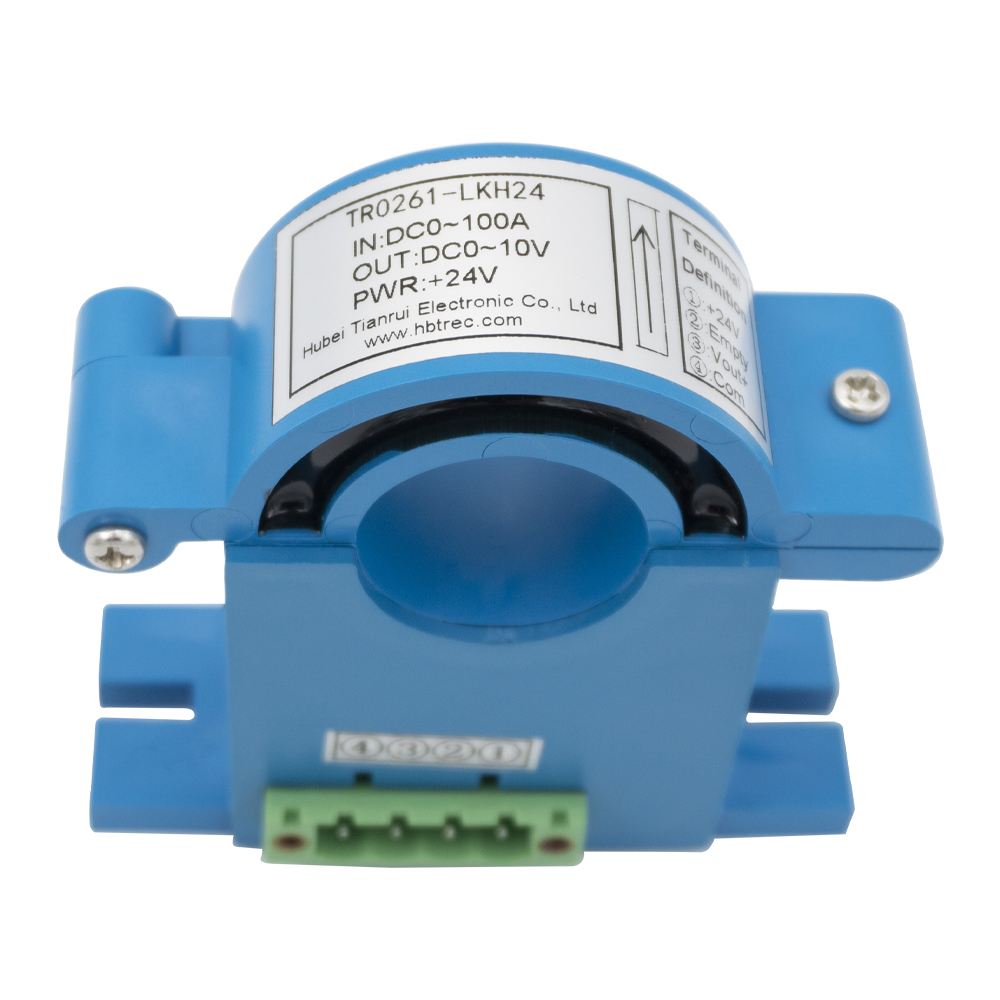

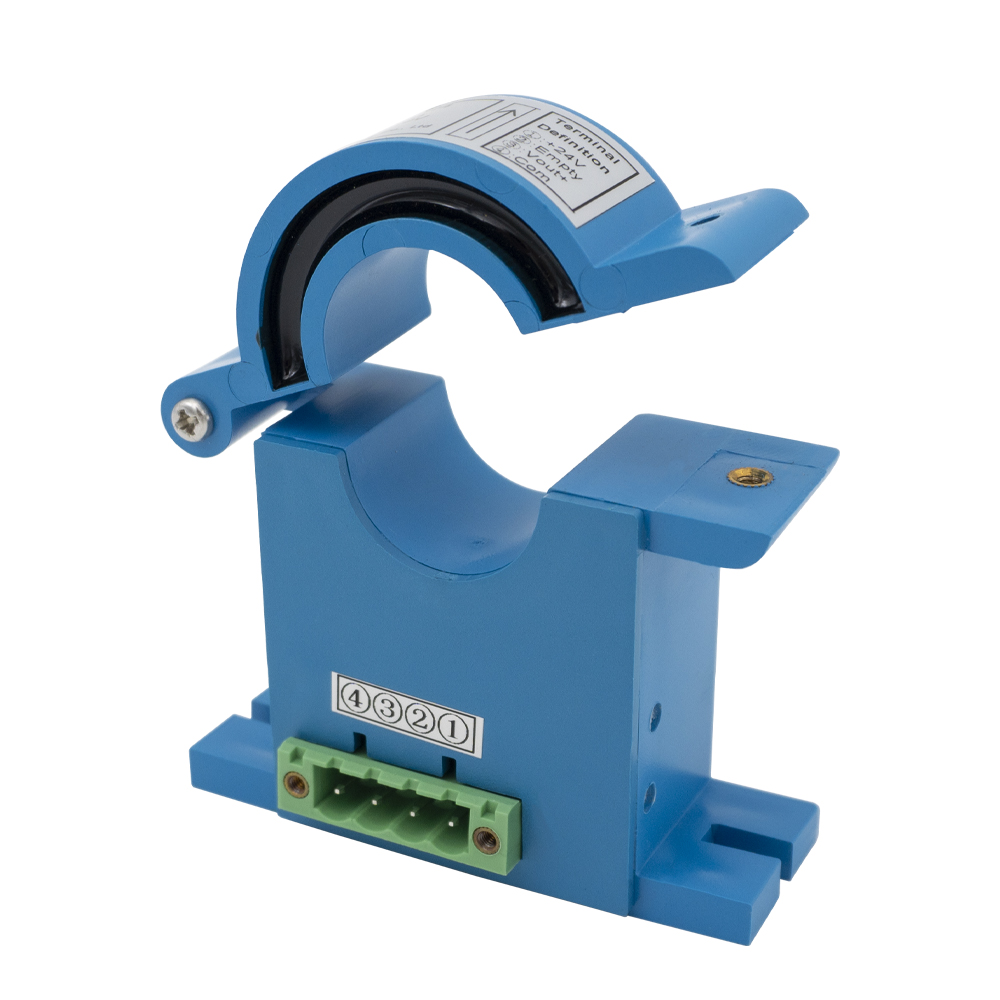

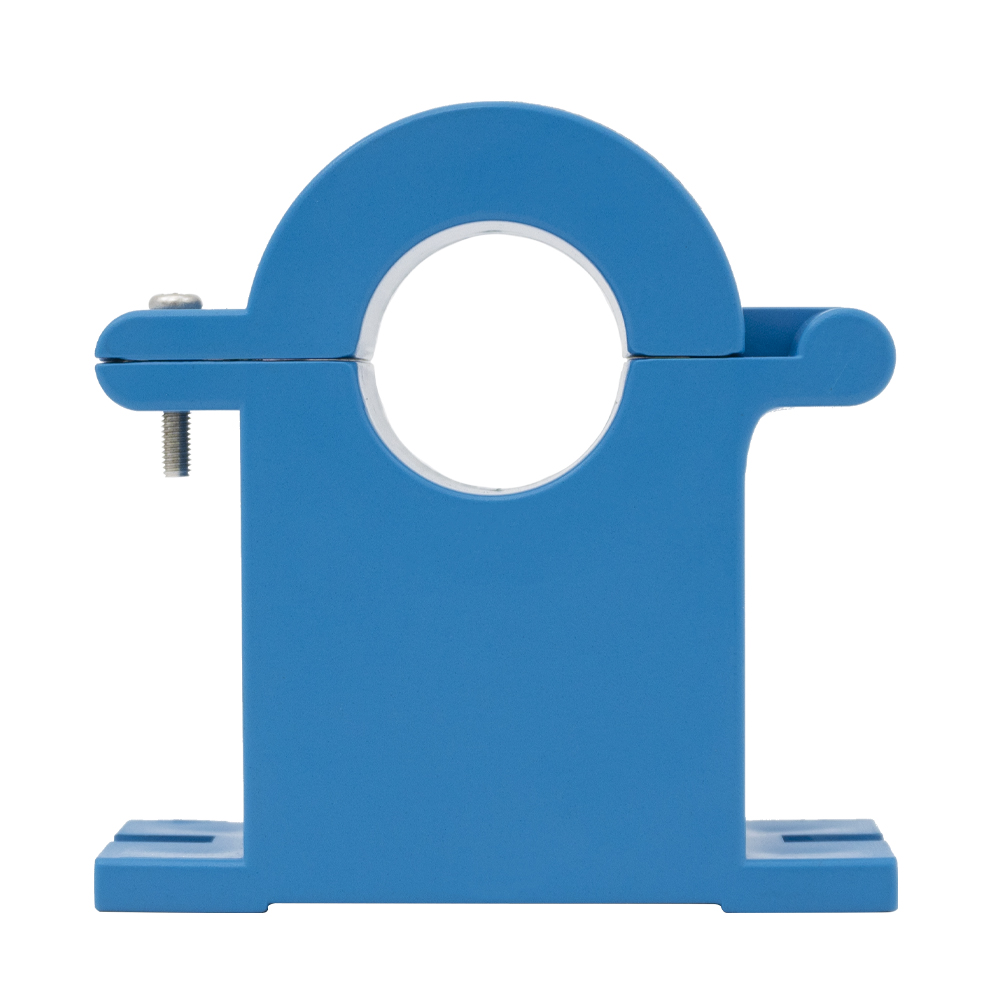

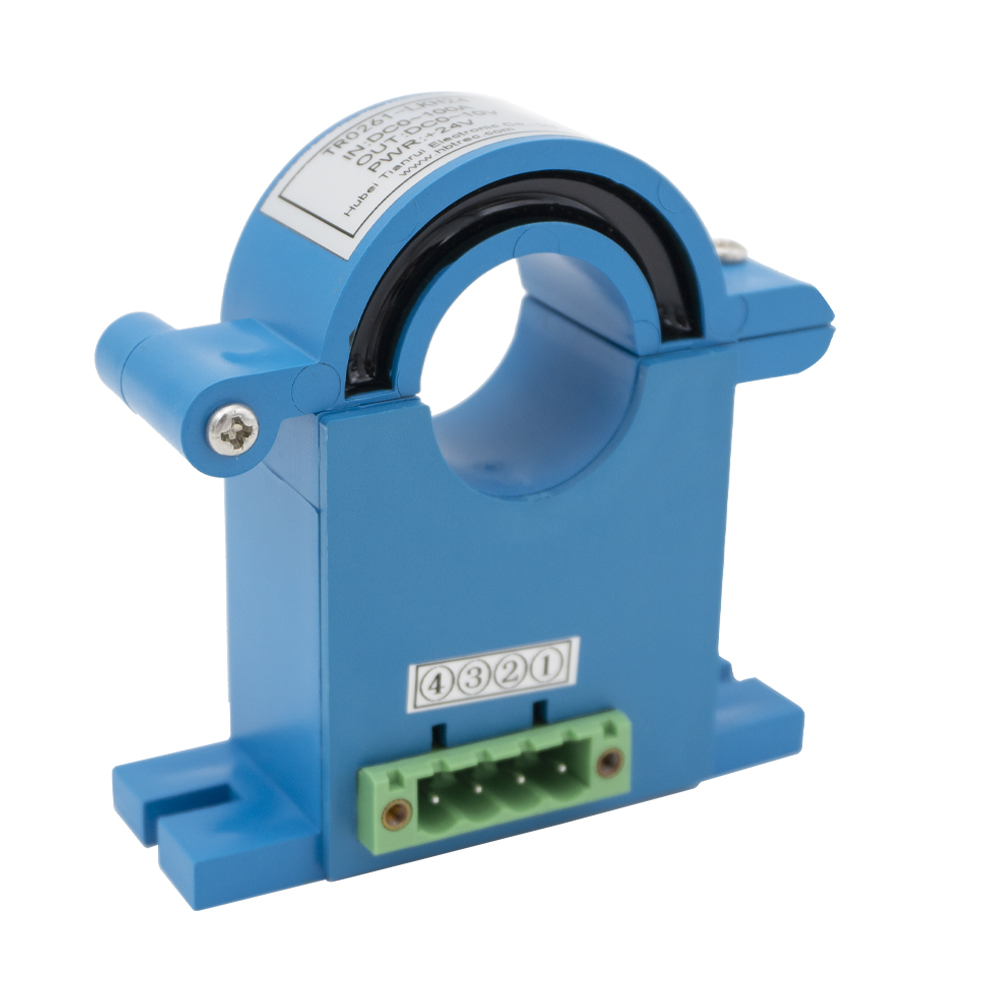

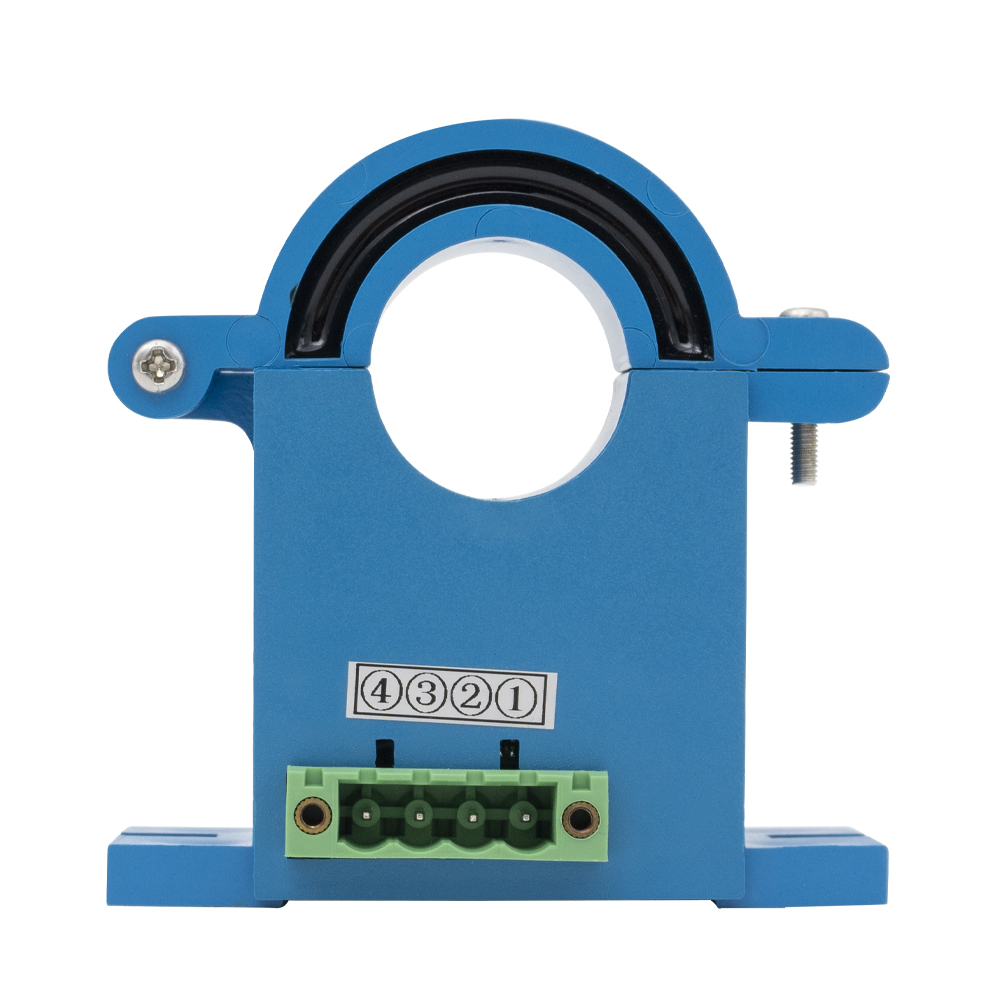

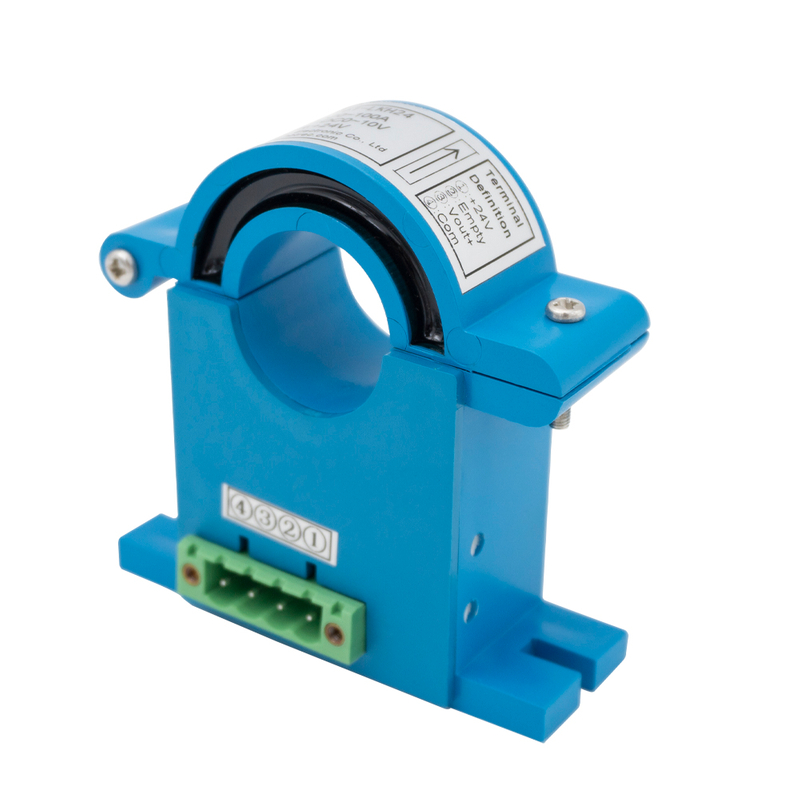

TR0261-LKH24 ‌Open-Loop Hall Effect Current Sensor DC 0~100A/DC 0~10V

The Open-Loop Hall Effect Current Sensor operates on the ‌direct-measurement Hall-effect detection principle‌. The magnetic flux generated by the primary current is concentrated through the magnetic circuit and converted into a Hall voltage signal by the Hall device. After amplification by an amplifier, this voltage signal ‌accurately reflects the magnitude of the primary current‌.
Availability:
Inquire Add to Basket

  • TR0261-LKH24

  • TR

Products Features

High immunity to interference

Excellent linearity performance

Long-term stability guaranteed

Reliable and accurate measurement

Applications

Motor starting protection systems

Electric locomotive applications

Power supply monitoring

Industrial drive protection

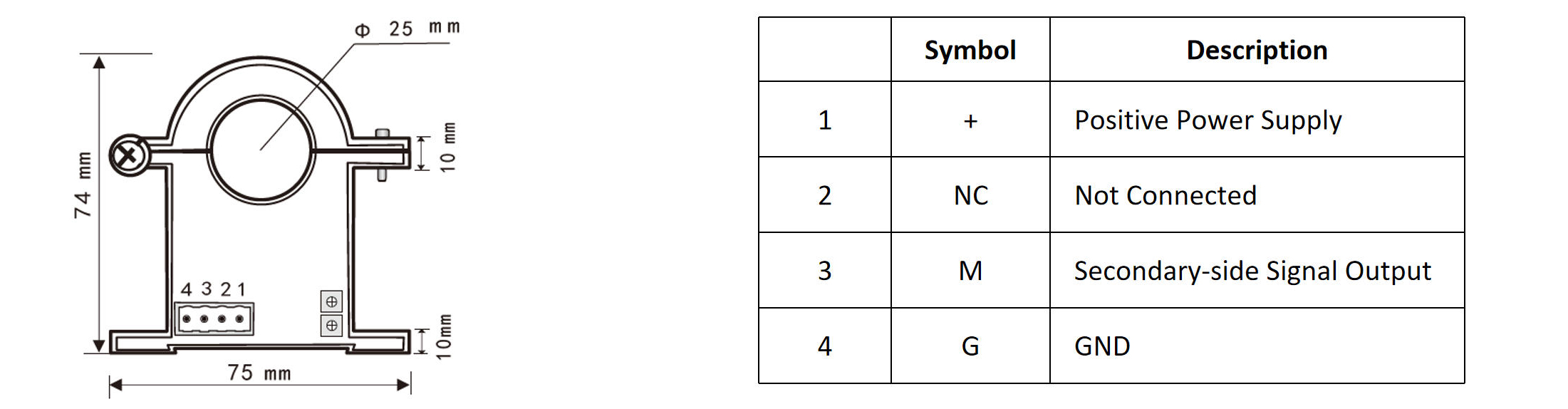

Mechanical Dimension(mm)

Circuit Connection Diagram

Technical Data

@TA=25℃,unless otherwise stated

Type

TR0261-LKH24

IPN

Primary Rated Input Current

DC 100A

IP

Primary Current Measure Range

DC 0~120A

VSN

Secondary Rated Output Voltage

DC 10V

UC

The Power Supply Voltage

DC +24V

RL

Load Capacity

RL ≤ 300Ω

X

Accuracy

±1%

BW

Frequency Bandwith

0~1kHz

Overload Capacity

2 times

Ud

Power Frequency Withstand Voltage

3kV AC/1min

tr

Response Time

<250ms

V0

Offset Voltage

≤ 20mV

Temperature Drift

≤200ppm/℃

TA

Ambient Operating Temperature

-20℃~+80℃

TS

Ambient Storage Temperature

-25℃~+85℃
