How To Choose 3 Phase Current Transformers for Motor Protection?
Home » Blogs » Blogs » How To Choose 3 Phase Current Transformers for Motor Protection?

How To Choose 3 Phase Current Transformers for Motor Protection?

Views: 0     Author: Site Editor     Publish Time: 2025-07-01      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

When selecting a Current Transformer, it’s essential to choose the correct 3 phase current transformer for effective three phase AC motor protection. Make sure the features of the Current Transformer match your motor and relay requirements. Using the wrong 3 phase current transformer can cause your system to miss faults or shut down unexpectedly. The proper sizing and installation of a 3 phase current transformer are crucial for reliable three phase AC motor protection.

Tip: Always check the motor’s full load current before selecting a Current Transformer.

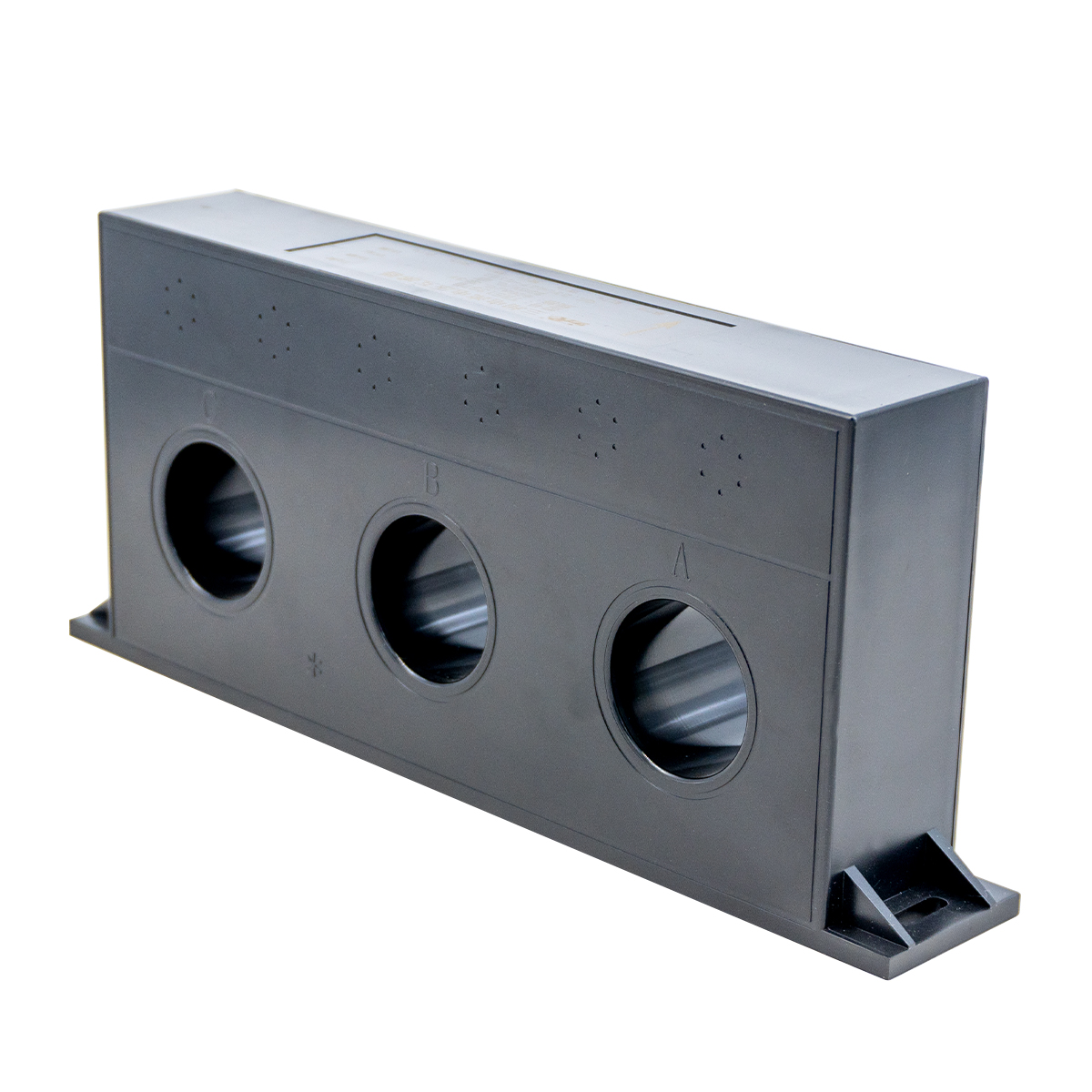

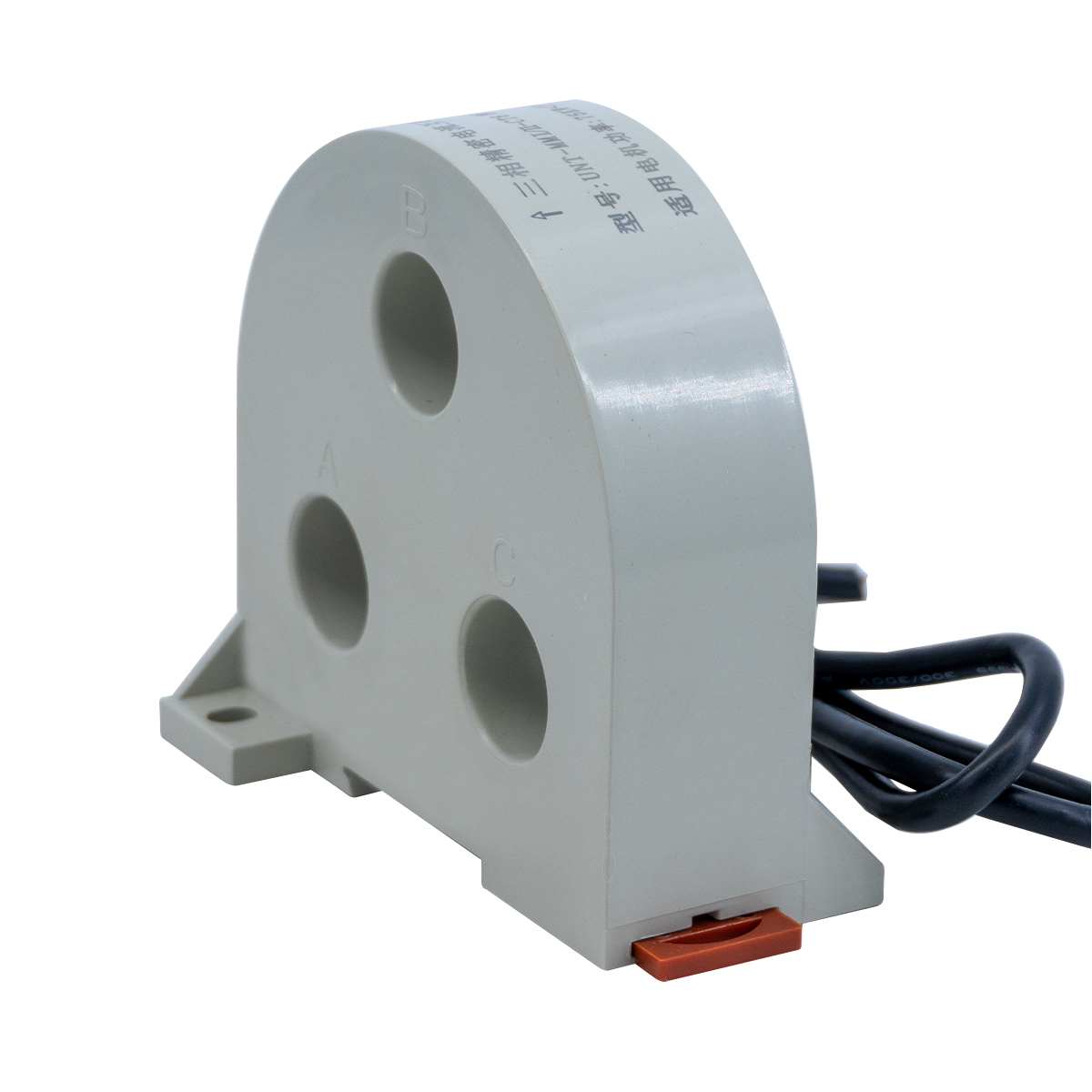

3 phase current transformer


Key Takeaways

  • Always look at your motor’s full load current first. This helps you pick the right current transformer size and keeps your motor safe.

  • Choose a current transformer ratio that is 1.2 to 1.25 times your motor’s full load amperage. This stops overload and protects your relay.

  • Make sure the current transformer’s accuracy class and secondary current (1A or 5A) fit what your relay needs. This helps find faults well.

  • Use short and thick wires. This keeps the burden low and helps the current readings stay correct between the transformer and relay.

  • Put in three current transformers that are the same. Use one for each phase. This keeps the motor protection balanced and working well.


Motor Protection Needs

Motor Ratings

First, you need to know your motor’s ratings. These ratings show how much current the motor uses when it runs. You can find this information on the motor’s nameplate. The most important number is Full Load Amperes (FLA). This number tells you the most current the motor will use at full power. You should also look at the voltage and frequency ratings. These details help you pick a current transformer that fits your system.

Note: Always check your motor’s ratings against local rules. This step helps you follow the law and keeps things safe.

If you use motors in Canada, you must look for measurement canada approval. This means your equipment meets the country’s rules and can be used for official jobs.

Protection Goals

You want to keep your motor safe from harm. Some common dangers are overloads, short circuits, and ground faults. A good protection system finds these problems early. It will then shut down the motor or let you know. You need a current transformer that works with your relay and follows all rules.

Your protection system should meet industry standards. These standards help stop false alarms and missed problems. If you work in Canada, check for measurement canada approval on your current transformers. This shows your equipment is safe and high quality.

Tip: Make a list of your protection goals. This list helps you choose the right current transformer for your needs.


3 Phase Current Transformer Selection

Picking the right 3 phase current transformer is very important. It helps keep your three phase ac motor safe. You need to think about a few key things to get good results. Let’s go through each one in simple steps.

CT Ratio

The ratio shows how much the current transformer lowers the main current. It makes the current smaller and safer. You must pick a ratio that matches your motor’s full load amperage. Most motors need a ratio that is 1.2 or 1.25 times the full load amperage. This stops the current transformer from getting too full. It also keeps the output in the relay’s safe range. Picking the right ratio is the first thing you should do.

Tip: Always check if the ratio fits your relay’s input range. This helps stop false alarms and missed problems.

You will see ratios like “100:5” or “200:5.” These mean the transformer changes 100 or 200 amps to 5 amps. You need three of the same current transformers, one for each phase. This gives you even protection.

Accuracy Class

Accuracy means how close the output is to the real current. You should look at the accuracy rating on the label. For motor protection, pick a class that fits your needs. If you need very exact numbers, choose revenue grade accuracy. This gives you the best results and helps with performance.

Note: Revenue grade accuracy is good for billing and energy checks. For simple protection, a normal accuracy class is okay.

Accuracy classes like 0.2, 0.5, or 1.0 show the error percent. Lower numbers mean better accuracy. Always match the accuracy class to your relay and system.

Burden

Burden is the total resistance the current transformer sees. This comes from the relay and the wires. You must keep the burden under the rated value for best results. Too much burden can make the current transformer less accurate.

You can find the burden rating in the datasheet. Use short and thick wires to lower the burden. Always add the relay’s resistance to the wire resistance.

CT Burden (VA)

Typical Use

2.5

Short wiring runs

5

Medium wiring runs

10

Long wiring runs

CT Type

There are different types of current transformers. The most common are wound, bar, and rogowski coil. Each type has its own good points.

  • Wound CTs are good for low amperage.

  • Bar CTs work for higher currents and are very accurate.

  • Rogowski coil types are flexible and cover many amperage ranges. You can use a flexible rogowski coil in small spaces or for easy setup.

Rogowski coils do not get full and work well over many ranges. You can use them for short jobs or for a long time. Many engineers use flexible rogowski coils for upgrades.

Tip: Rogowski coil types are great for big or changing currents. They also help when you need very accurate numbers.

Secondary Current

The secondary current is what comes out of the current transformer. Most systems use 1A or 5A as the standard. You must match the secondary current to your relay’s input. Using the wrong one can cause mistakes and lower performance.

  • 1A secondary current is good for long wires. It keeps losses low and accuracy high.

  • 5A secondary current is used for short wires and older systems.

Always read your relay’s manual before picking the secondary current.

Frequency Match

You must match the current transformer’s frequency to your system. Most three phase ac motor protection uses 50 Hz or 60 Hz. Using the wrong frequency can make things less accurate.

Some current transformers, like the rogowski coil, work well at many frequencies. This makes them good for systems with variable frequency drives.

Physical Size

You need to check the size of the current transformer. Make sure it fits around your motor cables or busbars. Some panels do not have much space. Rogowski coil types are flexible and fit in small spots.

Note: Always look for UL listed current transformers. These meet safety rules and help you pass checks.

You should use three of the same current transformers for each phase. This gives you even protection and the best results.


Relay Compatibility

CT and Relay Match

You must make sure your current transformer works well with your relay. The relay reads the signal from the current transformer and uses it for motor protection. If you choose the wrong match, your system may not detect problems or may give false alarms. Always check the relay’s input ratings. These ratings tell you what kind of signal the relay can handle.

Look at the secondary current of your current transformer. Most relays accept either 1A or 5A. Pick a current transformer that matches this value. You should also check the relay’s accuracy needs. Some relays need high accuracy for better monitoring. Use a current transformer with the right accuracy class to meet these needs.

Note: Always follow industry standards when matching your current transformer and relay. This helps you meet regulatory requirements and keeps your system safe.

Wiring

Wiring connects your current transformer to the relay. Good wiring helps your system work well and keeps your monitoring accurate. Use short and thick wires to lower resistance. This keeps the signal strong and clear.

You should use three wires, one for each phase. Make sure you connect each wire to the right terminal on the relay. Label each wire to avoid mistakes. If you use long wires, check the burden rating. Too much resistance can lower accuracy.

Wire Length

Recommended Size

Short

14 AWG

Medium

12 AWG

Long

10 AWG

Always follow wiring standards for safety. Good wiring helps you meet standards and keeps your system reliable. Test your wiring before you start monitoring your motor. This step helps you find problems early.


Common Mistakes

When you choose a 3 phase current transformer for motor protection, you can make some common mistakes. Knowing these mistakes helps you avoid problems and keeps your system safe.

Wrong CT Size

You might pick a current transformer with the wrong ratio. If you choose a ratio that is too high, your relay may not see small faults. If you pick a ratio that is too low, the transformer can get overloaded. Always check your motor’s full load current and select a ratio that matches your needs. Most experts suggest using a ratio that is 1.2 or 1.25 times the full load amperage. This method gives you a safety margin and helps your relay work well.

Tip: Write down the ratio you need before you buy. Double-check your numbers to avoid mistakes.

Ignoring Accuracy

Some people forget to check the accuracy of the current transformer. If you ignore accuracy, your relay may not trip at the right time. You need to focus on accuracy and calibration to keep your motor safe. Always look for the accuracy class on the label. For most motor protection jobs, a class 1.0 or better works well. If you need more precise readings, choose a lower number for better accuracy.

A table can help you see how accuracy classes compare:

Accuracy Class

Typical Use

0.2

Billing, energy

0.5

High precision

1.0

Motor protection

You should also plan for calibration. Regular calibration checks keep your system working right. If you skip calibration, your readings can drift over time.

Installation Errors

You must install the current transformer with proper alignment with primary conductors. If you do not, the readings can be wrong. Always follow the wiring diagram and check your work. Loose wires or poor connections can cause errors. Use the right tools and test your setup before you start the motor.

Note: Schedule calibration every year to keep your system accurate.

If you avoid these mistakes, your motor protection system will work better and last longer.


Three Phase AC Motor Protection Example

Sample Calculation

Let’s look at a real-world example. You have a three phase AC motor with a full load current of 80A. Your relay accepts a 5A input. You want to choose the right current transformer ratio for this setup.

First, you need to add a safety margin. Most experts suggest using a ratio that is 1.25 times the full load current. Multiply 80A by 1.25. You get 100A. Now, you need a current transformer with a ratio of 100:5. This ratio means the transformer will reduce 100A to 5A for your relay.

Tip: Always round up to the next standard ratio if your calculation does not match a standard value.

Here is a quick table to help you:

Motor FLA (A)

Safety Factor

CT Primary (A)

CT Ratio

80

1.25

100

100:5

Selection Steps

Follow these steps to select the best current transformer for your motor protection:

  1. Find your motor’s full load current.

  2. Multiply by 1.2 or 1.25 to get the primary current for your ratio.

  3. Choose a standard ratio that matches or is just above your result.

  4. Check the accuracy class. For most motor protection, class 1.0 works well. If you need better performance, pick a lower number.

  5. Look at the burden rating. Make sure your wiring and relay do not exceed this value.

  6. Decide on the type. Use a bar type for high current, a wound type for low current, or a rogowski coil for flexible installation.

  7. Match the secondary current to your relay (1A or 5A).

  8. Confirm the frequency matches your system.

  9. Check the physical size. Make sure the transformer fits your cables or busbars.

  10. Install three identical transformers, one for each phase, to ensure balanced performance.

Note: Using a rogowski coil can help when you have limited space or need easy installation. Rogowski coils also support optimizing performance and accuracy in systems with changing loads.

If you follow these steps, you will improve your system’s performance and protect your motor from damage. The right ratio and transformer type will help you get the best results.

Choosing the right 3 phase current transformer keeps your motor safe.

  • Check your motor’s full load current.

  • Pick the correct CT ratio, accuracy class, and type.

  • Match the CT to your relay and wiring.

  • Make sure the transformer fits your system.

Remember: Careful selection and installation help you avoid costly mistakes. For complex or high-risk jobs, talk to an expert. Reliable protection starts with the right choices.


FAQ

What happens if I choose the wrong CT ratio?

If you pick the wrong CT ratio, your relay may not detect faults or could trip at the wrong time. Always match the CT ratio to your motor’s full load current for safe and reliable protection.

Can I use different types of CTs on each phase?

You should always use three identical CTs, one for each phase. This ensures balanced measurement and accurate motor protection. Mixing types can cause errors and may lead to missed faults.

How often should I calibrate my current transformers?

You should check and calibrate your current transformers at least once a year. Regular calibration keeps your system accurate and helps prevent unexpected failures.

What is the best way to reduce CT burden?

Use short, thick wires between the CT and relay. This lowers resistance and keeps the burden within safe limits. Always check the CT’s datasheet for the maximum burden allowed.
